Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

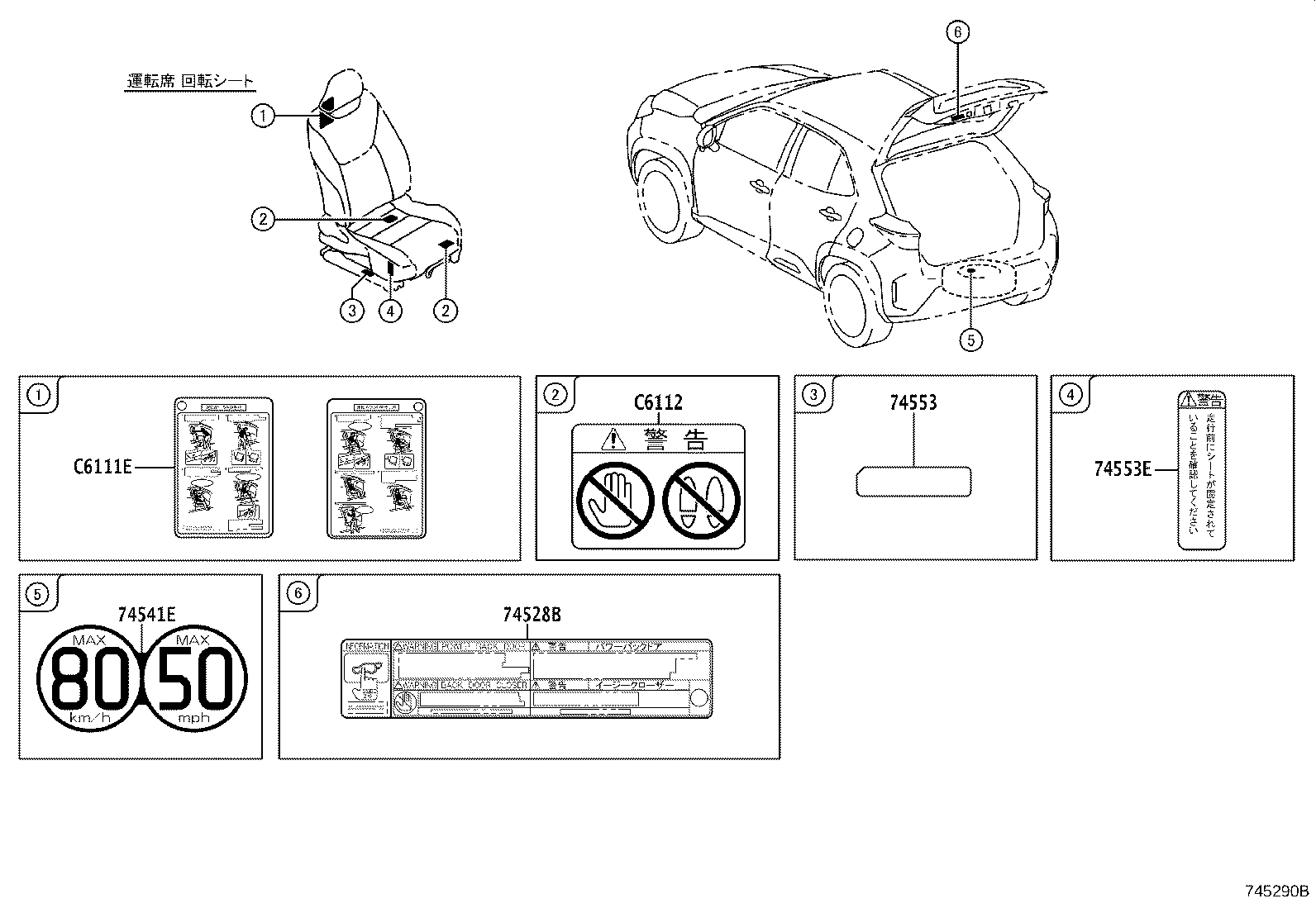

Exploded illustration 745290B

13 parts on this figure

Part number	Description	Fitment	Price
74528B — Label, Back Door Caution
74528-78010 note	Label, Back Door Caution 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z	¥200
74528-78010 note	Label, Back Door Caution 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG	¥200
74528-78010 note	Label, Back Door Caution 2024-01 → —	MXPB1#,MXPJ1# GRS,HBDZ,U,Z	¥200
74541E — Plate, Compact Spare Tire Caution
42668-42010 note	Plate, Compact Spare Tire Caution 2020-08 → 2024-01 ended	MXPB1#,MXPJ10	¥200
42668-42010 note	Plate, Compact Spare Tire Caution 2024-01 → 2025-03 ended	MXPB1#,MXPJ10 G,GRS,HBDG,HBDX,HBDZ,X,Z	¥200
74553 — Plate, Seatback Stopper Caution, RH
74553-52100 note	Plate, Seatback Stopper Caution, RH 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,X	¥200
74553-52100 note	Plate, Seatback Stopper Caution, RH 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,X	¥200
74553E — Label, Front Seat Caution
74553-52160 note	Label, Front Seat Caution 2022-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,X	¥140
74553-52160 note	Label, Front Seat Caution 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,X	¥140
C6111E — Plate, Tecs Safety Caution, NO.2
C6111-52120 note	Plate, Tecs Safety Caution, NO.2 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,X	¥410
C6111-52120 note	Plate, Tecs Safety Caution, NO.2 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,X	¥410
C6112 — Label, Safety Information, NO.2
C6112-52050 note	Label, Safety Information, NO.2 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,X	¥140
C6112-52050 note	Label, Safety Information, NO.2 2024-01 → 2025-03 ended	MXPB1#,MXPJ1# G,HBDG,HBDX,X	¥140

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
