Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

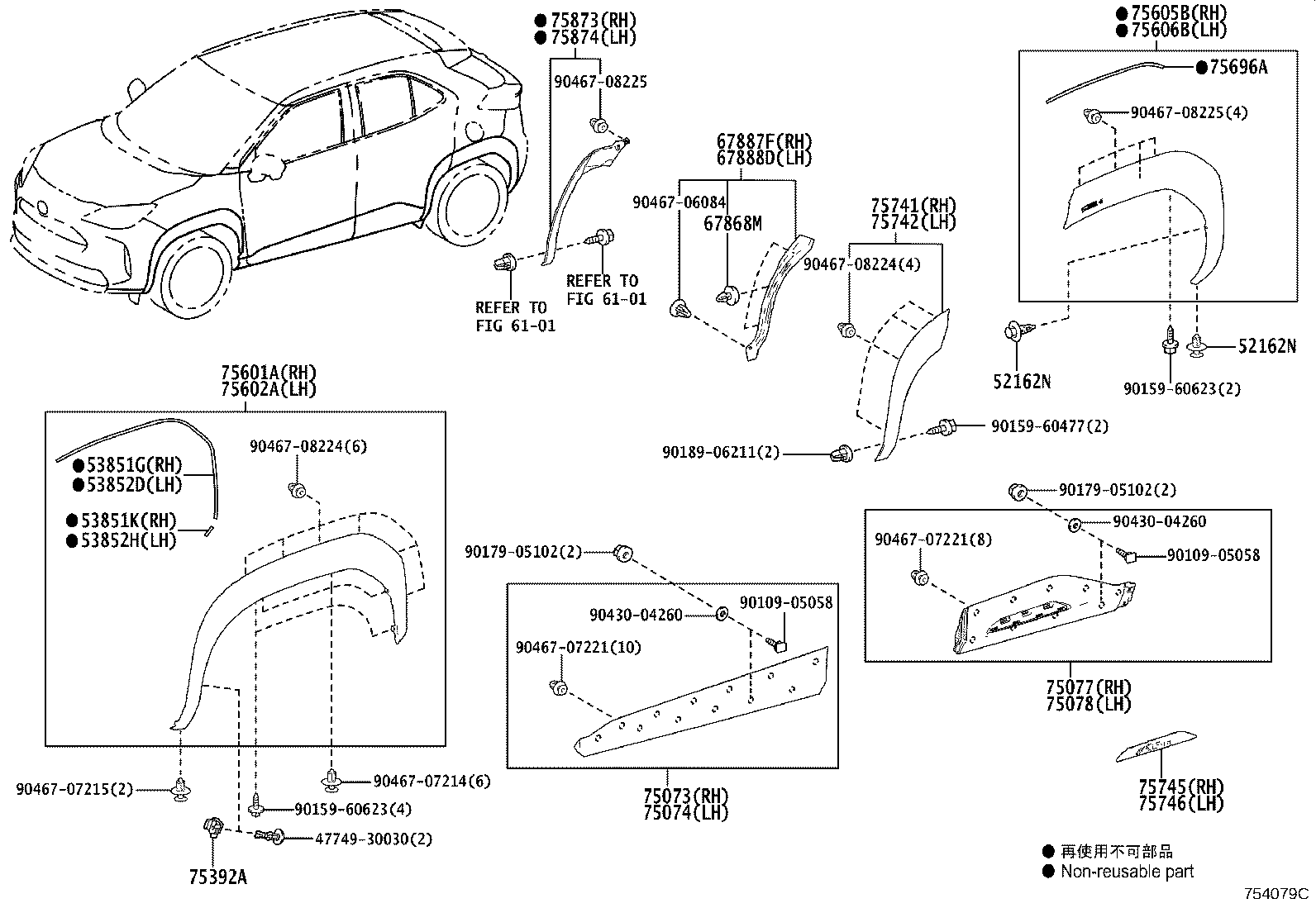

Exploded illustration 754079C 75392A — RETAINER, OUTSIDE MOULDING, NO.1 (2 parts) 75696A — PAD, BODY OUTSIDE MOULDING (2 parts) 52162N — PIECE, REAR BUMPER (2 parts) 52162N — PIECE, REAR BUMPER (2 parts) 67868M — CLIP, DOOR WEATHERSTRIP (2 parts) 4774930030 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707214 — not listed in this catalogue 9043004260 — not listed in this catalogue 9043004260 — not listed in this catalogue 9010905058 — not listed in this catalogue 9017905102 — not listed in this catalogue 9017905102 — not listed in this catalogue 9046707221 — not listed in this catalogue 9015960623 — not listed in this catalogue 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (2 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (2 parts) 75605B — MOULDING SUB-ASSY, QUARTER OUTSIDE, RH (3 parts) 75606B — MOULDING SUB-ASSY, QUARTER OUTSIDE, LH (3 parts) 75873 — MOULDING, QUARTER PANEL WHEEL OPENING, RH (2 parts) 75874 — MOULDING, QUARTER PANEL WHEEL OPENING, LH (2 parts) 67887F — WEATHERSTRIP, REAR DOOR, NO.2 RH (2 parts) 67888D — WEATHERSTRIP, REAR DOOR, NO.2 LH (2 parts) 75741 — MOULDING, REAR DOOR, OUTSIDE RH (2 parts) 75742 — MOULDING, REAR DOOR, OUTSIDE LH (2 parts) 75073 — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH (2 parts) 75074 — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH (2 parts) 75077 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH (4 parts) 75745 — MOULDING, REAR DOOR OUTSIDE, LOWER RH (6 parts) 75746 — MOULDING, REAR DOOR OUTSIDE, LOWER LH (6 parts) 75078 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH (4 parts) 53851G — PAD, FRONT WHEEL OPENING EXTENSION, RH (2 parts) 53852D — PAD, FRONT WHEEL OPENING EXTENSION, LH (2 parts) 53851K — PAD, FRONT WHEEL OPENING EXTENSION, RH (2 parts) 53852H — PAD, FRONT WHEEL OPENING EXTENSION, LH (2 parts) 9046708224 — not listed in this catalogue 9046708225 — not listed in this catalogue 9046708224 — not listed in this catalogue 9046706084 — not listed in this catalogue 9046708225 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960477 — not listed in this catalogue 9018906211 — not listed in this catalogue 6101 — not listed in this catalogue 6101 — not listed in this catalogue 9046707221 — not listed in this catalogue 9010905058 — not listed in this catalogue
754079C · 25 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
52162N — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥120
52161-16010 Piece, Rear Bumper
2024-01 → —
MXPB1#,MXPJ1# ¥120
53851G — Pad, Front Wheel Opening Extension, RH
53851-52220 Pad, Front Wheel Opening Extension, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥190
53851-52220 Pad, Front Wheel Opening Extension, RH
2024-01 → —
MXPB1#,MXPJ1# ¥190
53851K — Pad, Front Wheel Opening Extension, RH
53851-52260 Pad, Front Wheel Opening Extension, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥60
53851-52260 Pad, Front Wheel Opening Extension, RH
2024-01 → —
MXPB1#,MXPJ1# ¥60
53852D — Pad, Front Wheel Opening Extension, LH
53851-52220 Pad, Front Wheel Opening Extension, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥190
53851-52220 Pad, Front Wheel Opening Extension, LH
2024-01 → —
MXPB1#,MXPJ1# ¥190
53852H — Pad, Front Wheel Opening Extension, LH
53851-52260 Pad, Front Wheel Opening Extension, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥60
53851-52260 Pad, Front Wheel Opening Extension, LH
2024-01 → —
MXPB1#,MXPJ1# ¥60
67868M — Clip, Door Weatherstrip
67867-12150 Clip, Door Weatherstrip
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
67867-12150 Clip, Door Weatherstrip
2024-01 → —
MXPB1#,MXPJ1# ¥100
67887F — Weatherstrip, Rear Door, NO.2 RH
67887-52030 Weatherstrip, Rear Door, NO.2 RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,280
67887-52030 Weatherstrip, Rear Door, NO.2 RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,280
67888D — Weatherstrip, Rear Door, NO.2 LH
67888-52050 Weatherstrip, Rear Door, NO.2 LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,280
67888-52050 Weatherstrip, Rear Door, NO.2 LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,280
75073 — Moulding Sub-assy, Front Door, Outside Lower RH
75073-52030 Moulding Sub-assy, Front Door, Outside Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥7,700
75073-52030 Moulding Sub-assy, Front Door, Outside Lower RH
2024-01 → —
MXPB1#,MXPJ1# ¥7,700
75074 — Moulding Sub-assy, Front Door, Outside Lower LH
75074-52030 Moulding Sub-assy, Front Door, Outside Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥7,700
75074-52030 Moulding Sub-assy, Front Door, Outside Lower LH
2024-01 → —
MXPB1#,MXPJ1# ¥7,700
75077 — Moulding Sub-assy, Rear Door Outside Lower RH
75077-52020 note Moulding Sub-assy, Rear Door Outside Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥5,800
75077-52030 note Moulding Sub-assy, Rear Door Outside Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥5,600
75077-52020 note Moulding Sub-assy, Rear Door Outside Lower RH
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥5,800
75077-52030 note Moulding Sub-assy, Rear Door Outside Lower RH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥5,600
75078 — Moulding Sub-assy, Rear Door Outside Lower LH
75078-52020 note Moulding Sub-assy, Rear Door Outside Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥5,800
75078-52030 note Moulding Sub-assy, Rear Door Outside Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥5,600
75078-52020 note Moulding Sub-assy, Rear Door Outside Lower LH
2024-01 → —
MXPB1#,MXPJ1# HBDX,U,X ¥5,800
75078-52030 note Moulding Sub-assy, Rear Door Outside Lower LH
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥5,600
75392A — Retainer, Outside Moulding, NO.1
53879-30060 Retainer, Outside Moulding, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥310
53879-30060 Retainer, Outside Moulding, NO.1
2024-01 → —
MXPB1#,MXPJ1# ¥310
75601A — Moulding Sub-assy, Front Fender, RH
75601-52040 note Moulding Sub-assy, Front Fender, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,600
75601-52040 note Moulding Sub-assy, Front Fender, RH
2024-01 → —
MXPB1#,MXPJ1# ¥5,600
75602A — Moulding Sub-assy, Front Fender, LH
75602-52040 note Moulding Sub-assy, Front Fender, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,600
75602-52040 note Moulding Sub-assy, Front Fender, LH
2024-01 → —
MXPB1#,MXPJ1# ¥5,600
75605B — Moulding Sub-assy, Quarter Outside, RH
75605-52090 note Moulding Sub-assy, Quarter Outside, RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# ¥4,490
75605-52140 note Moulding Sub-assy, Quarter Outside, RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,070
75605-52140 note Moulding Sub-assy, Quarter Outside, RH
2024-01 → —
MXPB1#,MXPJ1# ¥4,070
75606B — Moulding Sub-assy, Quarter Outside, LH
75606-52090 note Moulding Sub-assy, Quarter Outside, LH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# ¥4,490
75606-52140 note Moulding Sub-assy, Quarter Outside, LH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,070
75606-52140 note Moulding Sub-assy, Quarter Outside, LH
2024-01 → —
MXPB1#,MXPJ1# ¥4,070
75696A — Pad, Body Outside Moulding
75696-52010 Pad, Body Outside Moulding
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥430
75696-52010 Pad, Body Outside Moulding
2024-01 → —
MXPB1#,MXPJ1# ¥430
75741 — Moulding, Rear Door, Outside RH
75087-52010 note Moulding, Rear Door, Outside RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,920
75087-52010 note Moulding, Rear Door, Outside RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,920
75742 — Moulding, Rear Door, Outside LH
75088-52010 note Moulding, Rear Door, Outside LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,920
75088-52010 note Moulding, Rear Door, Outside LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,920
75745 — Moulding, Rear Door Outside, Lower RH
75745-52090-B1 note Moulding, Rear Door Outside, Lower RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥2,150
75745-52090-B1 note Moulding, Rear Door Outside, Lower RH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥2,150
75745-52090-B1 note Moulding, Rear Door Outside, Lower RH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥2,150
75745-52090-F0 note Moulding, Rear Door Outside, Lower RH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥2,370
75745-52090-B1 note Moulding, Rear Door Outside, Lower RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥2,150
75745-52090-B1 note Moulding, Rear Door Outside, Lower RH
2024-01 → —
MXPB10,MXPJ10 GRS ¥2,150
75746 — Moulding, Rear Door Outside, Lower LH
75746-52090-B1 note Moulding, Rear Door Outside, Lower LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥2,150
75746-52090-B1 note Moulding, Rear Door Outside, Lower LH
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥2,150
75746-52090-B1 note Moulding, Rear Door Outside, Lower LH
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥2,150
75746-52090-F0 note Moulding, Rear Door Outside, Lower LH
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥2,370
75746-52090-B1 note Moulding, Rear Door Outside, Lower LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥2,150
75746-52090-B1 note Moulding, Rear Door Outside, Lower LH
2024-01 → —
MXPB10,MXPJ10 GRS ¥2,150
75873 — Moulding, Quarter Panel Wheel Opening, RH
75873-52010 Moulding, Quarter Panel Wheel Opening, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,120
75873-52010 Moulding, Quarter Panel Wheel Opening, RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,120
75874 — Moulding, Quarter Panel Wheel Opening, LH
75874-52010 Moulding, Quarter Panel Wheel Opening, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,120
75874-52010 Moulding, Quarter Panel Wheel Opening, LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
