Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

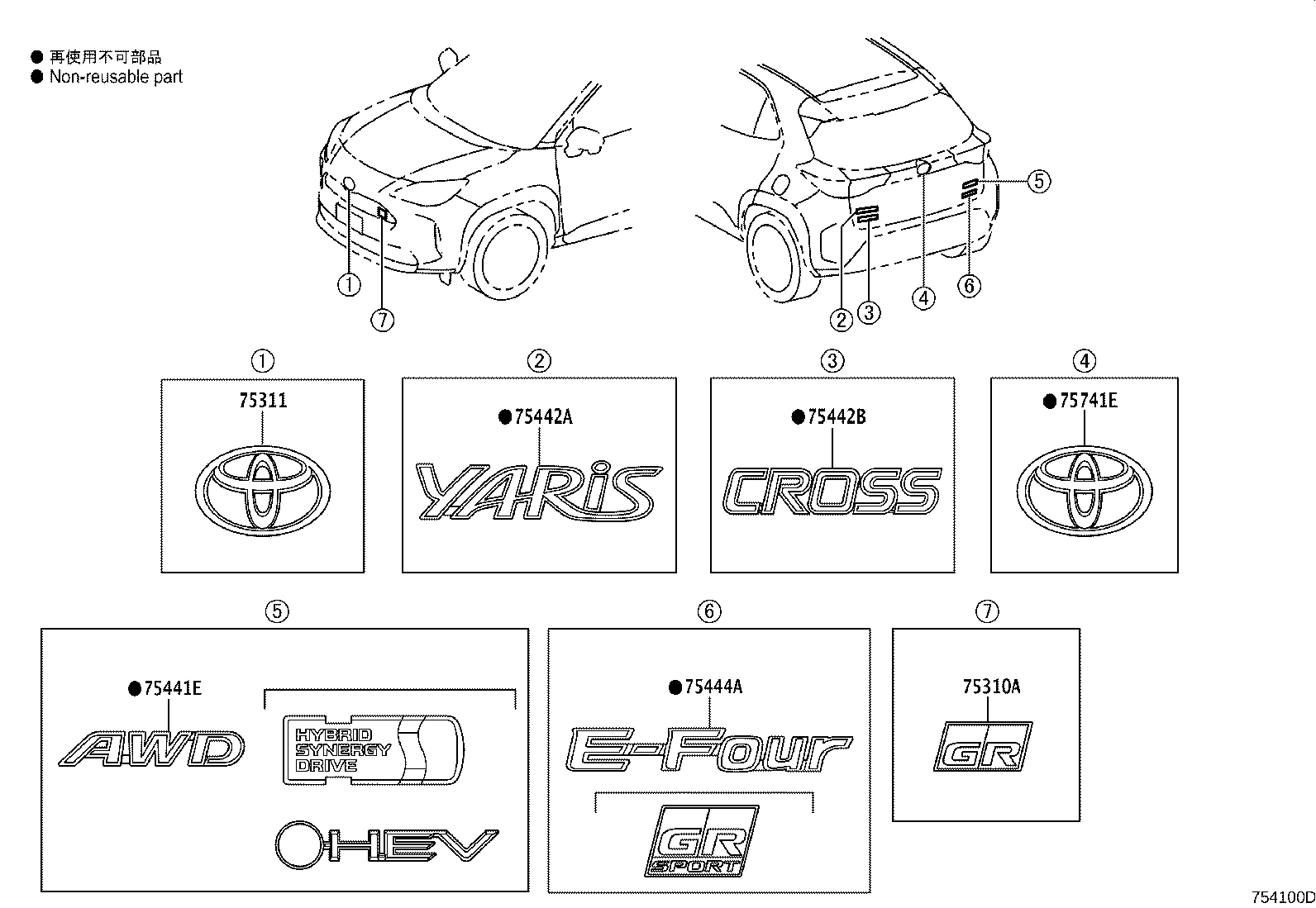

Exploded illustration 754100D 75442A — PLATE, BACK DOOR NAME, NO.2 (2 parts) 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (4 parts) 75741E — EMBLEM, SYMBOL (4 parts) 75442B — PLATE, BACK DOOR NAME, NO.2 (2 parts) 75441E — PLATE, BACK DOOR NAME, NO.1 (3 parts) 75444A — PLATE, BACK DOOR NAME, NO.4 (3 parts) 75310A — EMBLEM ASSY, RADIATOR GRILLE (2 parts)
754100D · 7 callouts Full size ↗
20 parts on this figure
Part number Description Fitment Price
75310A — Emblem Assy, Radiator Grille
75310-52050 Emblem Assy, Radiator Grille
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥1,940
75310-52050 Emblem Assy, Radiator Grille
2024-01 → —
MXPB10,MXPJ10 GRS ¥1,940
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75310-12100 Emblem, Radiator Grille (OR FRONT PANEL)
2020-08 → 2024-01 ended
MXPB1# G,X,Z ¥2,860
75310-12110 Emblem, Radiator Grille (OR FRONT PANEL)
2020-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥3,400
75310-52190 Emblem, Radiator Grille (OR FRONT PANEL)
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥8,800
75403-52070 Emblem, Radiator Grille (OR FRONT PANEL)
2024-01 → —
MXPB1#,MXPJ1# ¥2,470
75441E — Plate, Back Door Name, NO.1
75441-52260 note Plate, Back Door Name, NO.1
2020-08 → 2024-01 ended
MXPJ1# ¥1,930
75444-52200 note Plate, Back Door Name, NO.1
2020-08 → 2024-01 ended
MXPB15 ¥1,660
75440-30110 note Plate, Back Door Name, NO.1
2024-01 → —
MXPJ1# ¥2,420
75442A — Plate, Back Door Name, NO.2
75442-52550 note Plate, Back Door Name, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,500
75442-52550 note Plate, Back Door Name, NO.2
2024-01 → —
MXPB1#,MXPJ1# ¥1,500
75442B — Plate, Back Door Name, NO.2
75442-52560 note Plate, Back Door Name, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,500
75442-52560 note Plate, Back Door Name, NO.2
2024-01 → —
MXPB1#,MXPJ1# ¥1,500
75444A — Plate, Back Door Name, NO.4
75430-52050 note Plate, Back Door Name, NO.4
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥2,070
75444-52210 note Plate, Back Door Name, NO.4
2020-08 → 2024-01 ended
MXPJ15 ¥1,660
75430-52050 note Plate, Back Door Name, NO.4
2024-01 → —
MXPB10,MXPJ10 GRS ¥2,070
75741E — Emblem, Symbol
75403-75010 Emblem, Symbol
2020-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥2,280
90975-02063 Emblem, Symbol
2020-08 → 2024-01 ended
MXPB1# G,X,Z ¥1,940
90975-02140 Emblem, Symbol
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥6,500
90975-02209 Emblem, Symbol
2024-01 → —
MXPB1#,MXPJ1# ¥1,740
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
