Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

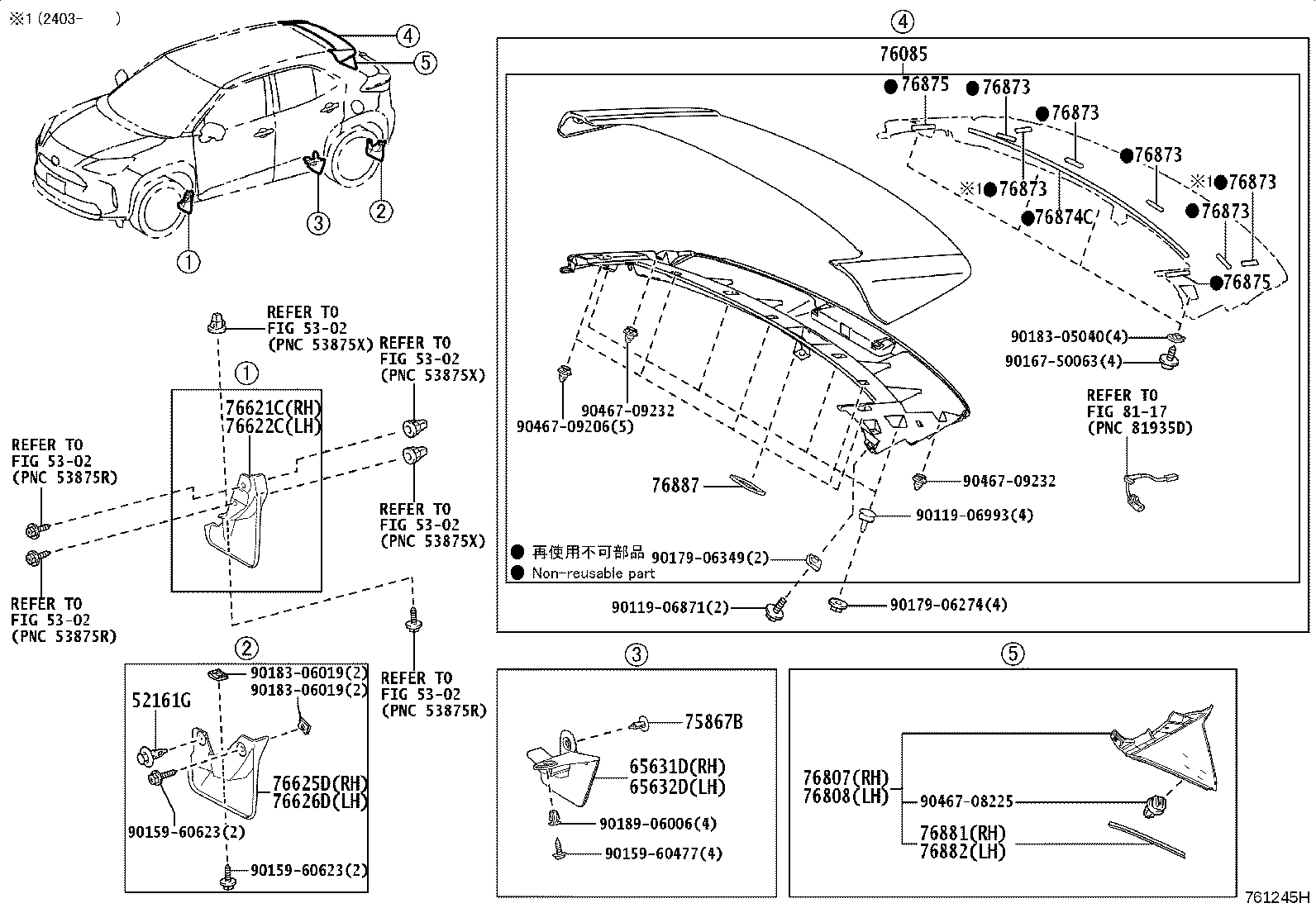

Exploded illustration 761245H 5302 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 8117 — not listed in this catalogue 76625D — MUDGUARD, QUARTER PANEL, REAR RH (2 parts) 76626D — MUDGUARD, QUARTER PANEL, REAR LH (2 parts) 76621C — MUDGUAD, FRONT FENDER, RH (2 parts) 76622C — MUDGUARD, FRONT FENDER, LH (2 parts) 75867B — CLIP, ROCKER PANEL MOULDING (2 parts) 52161G — PIECE, REAR BUMPER (2 parts) 9015960623 — not listed in this catalogue 9015960623 — not listed in this catalogue 9018306019 — not listed in this catalogue 9018306019 — not listed in this catalogue 9017906274 — not listed in this catalogue 9046709206 — not listed in this catalogue 9011906993 — not listed in this catalogue 9046709232 — not listed in this catalogue 9017906349 — not listed in this catalogue 9011906871 — not listed in this catalogue 9046709232 — not listed in this catalogue 76807 — PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH (2 parts) 76808 — PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH (2 parts) 76881 — PROTECTOR, REAR SPOILER SIDE, NO.1 RH (2 parts) 76882 — PROTECTOR, REAR SPOILER SIDE, NO.1 LH (2 parts) 9046708225 — not listed in this catalogue 9015960477 — not listed in this catalogue 9018906006 — not listed in this catalogue 65631D — PLATE, REAR WHEEL HOUSE, FRONT RH (2 parts) 65632D — PLATE, REAR WHEEL HOUSE, FRONT LH (2 parts) 76085 — SPOILER SUB-ASSY, REAR (31 parts) 9016750063 — not listed in this catalogue 9018305040 — not listed in this catalogue 76875 — PROTECTOR, REAR SPOILER, NO.4 (2 parts) 76873 — PROTECTOR, REAR SPOILER, NO.2 (3 parts) 76873 — PROTECTOR, REAR SPOILER, NO.2 (3 parts) 76873 — PROTECTOR, REAR SPOILER, NO.2 (3 parts) 76873 — PROTECTOR, REAR SPOILER, NO.2 (3 parts) 76875 — PROTECTOR, REAR SPOILER, NO.4 (2 parts) 76874C — PROTECTOR, REAR SPOILER, NO.3 (2 parts) 76887 — SEAL, REAR SPOILER (2 parts) 76873 — PROTECTOR, REAR SPOILER, NO.2 (3 parts) 76873 — PROTECTOR, REAR SPOILER, NO.2 (3 parts)
761245H · 23 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
52161G — Piece, Rear Bumper
52161-16010 note Piece, Rear Bumper
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥120
52161-16010 note Piece, Rear Bumper
2024-01 → —
MXPB1#,MXPJ1# ¥120
65631D — Plate, Rear Wheel House, Front RH
65631-52160 Plate, Rear Wheel House, Front RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,090
65631-52160 Plate, Rear Wheel House, Front RH
2024-01 → —
MXPB1#,MXPJ1# ¥1,090
65632D — Plate, Rear Wheel House, Front LH
65632-52160 Plate, Rear Wheel House, Front LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,090
65632-52160 Plate, Rear Wheel House, Front LH
2024-01 → —
MXPB1#,MXPJ1# ¥1,090
75867B — Clip, Rocker Panel Moulding
75867-30140 Clip, Rocker Panel Moulding
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥210
75867-30140 Clip, Rocker Panel Moulding
2024-01 → —
MXPB1#,MXPJ1# ¥210
76085 — Spoiler Sub-assy, Rear
76085-52929-A0 note Spoiler Sub-assy, Rear
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-A1 note Spoiler Sub-assy, Rear
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-B1 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-C0 note Spoiler Sub-assy, Rear
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥46,600
76085-52929-C0 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥46,600
76085-52929-C0 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥46,600
76085-52929-D0 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-E0 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥46,600
76085-52929-F0 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥46,600
76085-52929-F0 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥46,600
76085-52929-J0 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥46,600
76085-52929-J1 note Spoiler Sub-assy, Rear
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-A1 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-B1 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-B2 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-C0 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# HBDX,X ¥46,600
76085-52929-C0 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB10,MXPJ10 GRS ¥46,600
76085-52929-C0 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥46,600
76085-52929-D0 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# ¥46,600
76085-52929-E0 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥46,600
76085-52929-F0 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥46,600
76085-52929-J0 note Spoiler Sub-assy, Rear
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥46,600
76085-52938-A1 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB1#,MXPJ1# ¥42,300
76085-52938-B4 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB1#,MXPJ1# ¥42,300
76085-52938-B5 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB1#,MXPJ1# ¥42,300
76085-52938-C0 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB10,MXPJ10 GRS ¥42,300
76085-52938-C0 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥42,300
76085-52938-C0 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB1#,MXPJ1# HBDX,X ¥42,300
76085-52938-D1 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB1#,MXPJ1# ¥42,300
76085-52938-E3 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥42,300
76085-52938-J2 note Spoiler Sub-assy, Rear
2024-03 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥42,300
76621C — Mudguad, Front Fender, RH
76621-52140 note Mudguad, Front Fender, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥890
76621-52140 note Mudguad, Front Fender, RH
2024-01 → —
MXPB1#,MXPJ1# ¥890
76622C — Mudguard, Front Fender, LH
76622-52140 note Mudguard, Front Fender, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥890
76622-52140 note Mudguard, Front Fender, LH
2024-01 → —
MXPB1#,MXPJ1# ¥890
76625D — Mudguard, Quarter Panel, Rear RH
76625-52260 note Mudguard, Quarter Panel, Rear RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥890
76625-52260 note Mudguard, Quarter Panel, Rear RH
2024-01 → —
MXPB1#,MXPJ1# ¥890
76626D — Mudguard, Quarter Panel, Rear LH
76626-52260 note Mudguard, Quarter Panel, Rear LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥890
76626-52260 note Mudguard, Quarter Panel, Rear LH
2024-01 → —
MXPB1#,MXPJ1# ¥890
76807 — Protector Sub-assy, Rear Spoiler, Side RH
76807-52010 Protector Sub-assy, Rear Spoiler, Side RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,530
76807-52030 Protector Sub-assy, Rear Spoiler, Side RH
2024-01 → —
MXPB1#,MXPJ1# ¥2,690
76808 — Protector Sub-assy, Rear Spoiler, Side LH
76808-52010 Protector Sub-assy, Rear Spoiler, Side LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,530
76808-52020 Protector Sub-assy, Rear Spoiler, Side LH
2024-01 → —
MXPB1#,MXPJ1# ¥2,690
76873 — Protector, Rear Spoiler, NO.2
76873-52160 Protector, Rear Spoiler, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥430
76873-52160 Protector, Rear Spoiler, NO.2
2024-01 → 2024-03 ended
MXPB1#,MXPJ1# ¥430
76873-52160 Protector, Rear Spoiler, NO.2
2024-03 → —
MXPB1#,MXPJ1# ¥430
76874C — Protector, Rear Spoiler, NO.3
76874-52100 Protector, Rear Spoiler, NO.3
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥430
76874-52100 Protector, Rear Spoiler, NO.3
2024-01 → —
MXPB1#,MXPJ1# ¥430
76875 — Protector, Rear Spoiler, NO.4
76875-52080 Protector, Rear Spoiler, NO.4
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥430
76875-52080 Protector, Rear Spoiler, NO.4
2024-01 → —
MXPB1#,MXPJ1# ¥430
76881 — Protector, Rear Spoiler Side, NO.1 RH
76881-52030 Protector, Rear Spoiler Side, NO.1 RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥470
76881-52010 Protector, Rear Spoiler Side, NO.1 RH
2024-01 → —
MXPB1#,MXPJ1# ¥430
76882 — Protector, Rear Spoiler Side, NO.1 LH
76881-52030 Protector, Rear Spoiler Side, NO.1 LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥470
76881-52010 Protector, Rear Spoiler Side, NO.1 LH
2024-01 → —
MXPB1#,MXPJ1# ¥430
76887 — Seal, Rear Spoiler
76887-52070 Seal, Rear Spoiler
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥430
76887-52070 Seal, Rear Spoiler
2024-01 → —
MXPB1#,MXPJ1# ¥430
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
