Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

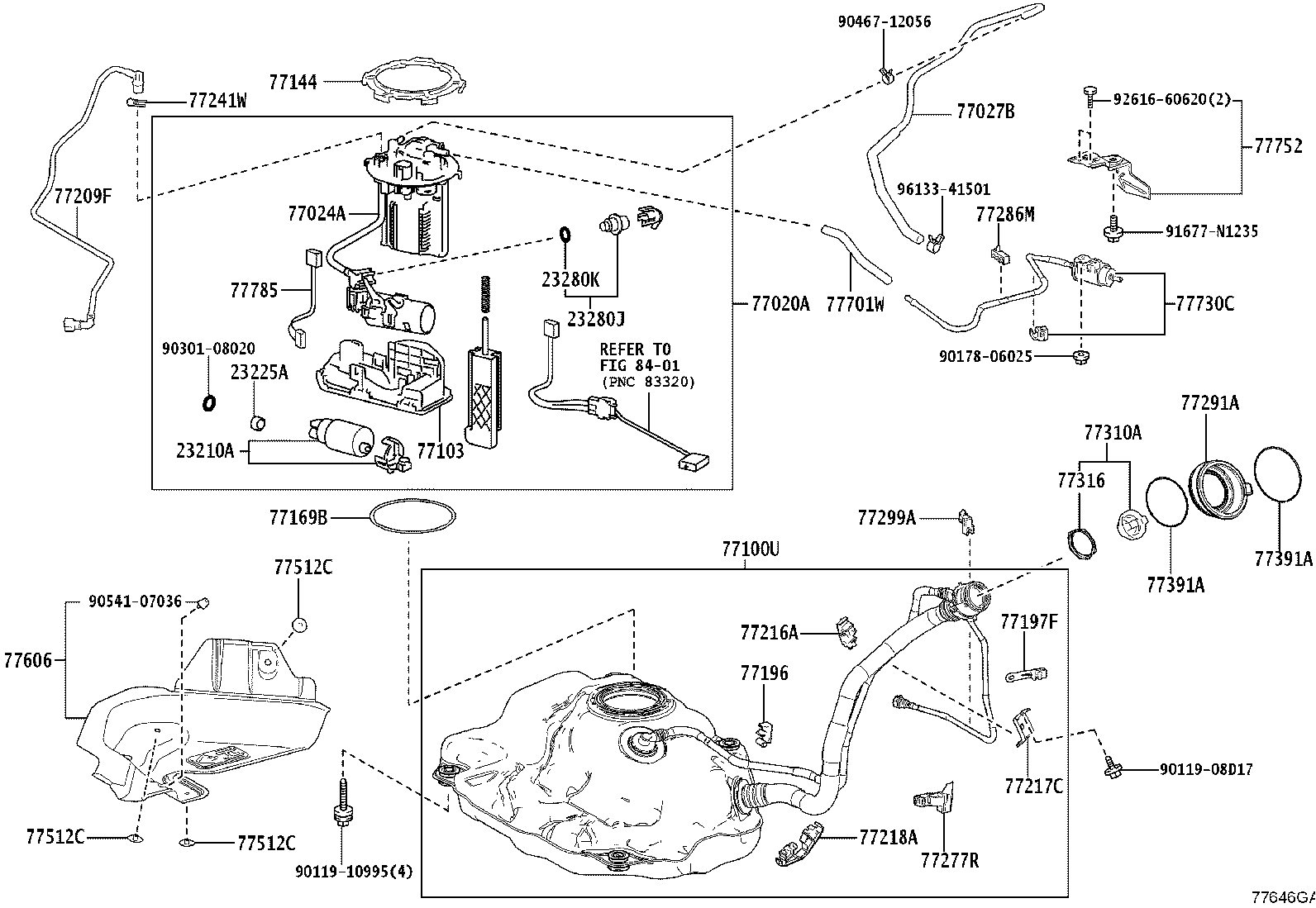

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23210A — Pump Assy, Fuel W/Motor & Bracket | ||||
| 23210-24010 |
Pump Assy, Fuel W/Motor & Bracket
2020-08 → 2024-01
ended
|
M15# MXPB1#,MXPJ1# | ¥23,400 | |
| 23210-24010 |
Pump Assy, Fuel W/Motor & Bracket
2024-01 → —
|
M15AFKS MXPB1# | ¥23,400 | |
| 23210-37020 |
Pump Assy, Fuel W/Motor & Bracket
2024-01 → —
|
M15AFXE MXPJ1# | ¥23,400 | |
| 23225A — Spacer, Fuel Pump | ||||
| 23225-21020 |
Spacer, Fuel Pump
2024-01 → —
|
M15AFXE MXPJ1# | ¥120 | |
| 23280J — Regulator Assy, Fuel Pressure | ||||
| 23280-15040 |
Regulator Assy, Fuel Pressure
2024-01 → —
|
M15AFKS MXPB1# | ¥4,830 | |
| 23280-15050 |
Regulator Assy, Fuel Pressure
2024-01 → —
|
M15AFXE MXPJ1# | ¥4,830 | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2024-01 → —
|
M15# MXPB1#,MXPJ1# | ¥140 | |
| 77020A — Tube Assy, Fuel Suction W/Pump & Gage | ||||
| 77020-52560 |
Tube Assy, Fuel Suction W/Pump & Gage
2020-08 → 2024-01
ended
|
MXPB10 | ¥50,800 | |
| 77020-52610 |
Tube Assy, Fuel Suction W/Pump & Gage
2020-08 → 2024-01
ended
|
MXPB15 | ¥50,800 | |
| 77020-52620 |
Tube Assy, Fuel Suction W/Pump & Gage
2020-08 → 2022-08
ended
|
MXPJ1# | ¥50,800 | |
| 77020-52630 |
Tube Assy, Fuel Suction W/Pump & Gage
2022-08 → 2024-01
ended
|
MXPJ1# | ¥50,800 | |
| 77020-52680 |
Tube Assy, Fuel Suction W/Pump & Gage
2024-01 → —
|
MXPJ1# | ¥48,100 | |
| 77020-52690 |
Tube Assy, Fuel Suction W/Pump & Gage
2024-01 → —
|
MXPB15 | ¥48,200 | |
| 77020-52710 |
Tube Assy, Fuel Suction W/Pump & Gage
2024-01 → —
|
MXPB10 | ¥48,200 | |
| 77024A — Plate Sub-assy, Fuel Suction | ||||
| 77024-52260 |
Plate Sub-assy, Fuel Suction
2020-08 → 2024-01
ended
|
MXPB10 | ¥7,200 | |
| 77024-52320 |
Plate Sub-assy, Fuel Suction
2020-08 → 2024-01
ended
|
MXPB15 | ¥6,500 | |
| 77024-52330 |
Plate Sub-assy, Fuel Suction
2020-08 → 2022-08
ended
|
MXPJ1# | ¥7,200 | |
| 77024-52360 |
Plate Sub-assy, Fuel Suction
2022-08 → 2024-01
ended
|
MXPJ1# | ¥7,200 | |
| 77024-52320 |
Plate Sub-assy, Fuel Suction
2024-01 → —
|
MXPB15 | ¥6,500 | |
| 77024-52380 |
Plate Sub-assy, Fuel Suction
2024-01 → —
|
MXPJ1# | ¥10,000 | |
| 77024-52390 |
Plate Sub-assy, Fuel Suction
2024-01 → —
|
MXPB10 | ¥6,500 | |
| 77027B — Tube Sub-assy, Fuel Emission, NO.1 | ||||
| 77027-52210 |
Tube Sub-assy, Fuel Emission, NO.1
2020-08 → 2024-01
ended
|
MXPB10 | ¥1,010 | |
| 77027-52220 |
Tube Sub-assy, Fuel Emission, NO.1
2020-08 → 2024-01
ended
|
MXPB15 | ¥590 | |
| 77027-52230 |
Tube Sub-assy, Fuel Emission, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# | ¥1,260 | |
| 77027-52210 |
Tube Sub-assy, Fuel Emission, NO.1
2024-01 → —
|
MXPB10 | ¥1,010 | |
| 77027-52220 |
Tube Sub-assy, Fuel Emission, NO.1
2024-01 → —
|
MXPB15 | ¥590 | |
| 77027-52230 |
Tube Sub-assy, Fuel Emission, NO.1
2024-01 → —
|
MXPJ1# | ¥1,260 | |
| 77100U — Tank Sub-assy, Fuel | ||||
| 77001-52560 |
Tank Sub-assy, Fuel
2020-08 → 2022-06
ended
|
MXPB10 | ¥30,000 | |
| 77001-52561 |
Tank Sub-assy, Fuel
2022-07 → 2024-01
ended
|
MXPB10 | ¥27,100 | |
| 77001-52600 |
Tank Sub-assy, Fuel
2020-08 → 2024-01
ended
|
MXPB15 | ¥27,100 | |
| 77001-52610 |
Tank Sub-assy, Fuel
2020-08 → 2022-08
ended
|
MXPJ10 | ¥30,000 | |
| 77001-52620 |
Tank Sub-assy, Fuel
2020-08 → 2022-08
ended
|
MXPJ15 | ¥30,000 | |
| 77001-52790 |
Tank Sub-assy, Fuel
2022-08 → 2022-09
ended
|
MXPJ10 | ¥30,000 | |
| 77001-52791 |
Tank Sub-assy, Fuel
2022-10 → 2024-01
ended
|
MXPJ10 | ¥27,100 | |
| 77001-52800 |
Tank Sub-assy, Fuel
2022-08 → 2022-09
ended
|
MXPJ15 | ¥30,000 | |
| 77001-52801 |
Tank Sub-assy, Fuel
2022-09 → 2024-01
ended
|
MXPJ15 | ¥27,100 | |
| 77001-52561 |
Tank Sub-assy, Fuel
2024-01 → —
|
MXPB10 | ¥27,100 | |
| 77001-52600 |
Tank Sub-assy, Fuel
2024-01 → —
|
MXPB15 | ¥27,100 | |
| 77001-52791 |
Tank Sub-assy, Fuel
2024-01 → —
|
MXPJ10 | ¥27,100 | |
| 77001-52801 |
Tank Sub-assy, Fuel
2024-01 → —
|
MXPJ15 | ¥27,100 | |
| 77103 — Sub-tank Sub-assy, Fuel | ||||
| 77103-52090 |
Sub-tank Sub-assy, Fuel
2020-08 → 2024-01
ended
|
MXPB10 | ¥2,920 | |
| 77103-52110 |
Sub-tank Sub-assy, Fuel
2020-08 → 2024-01
ended
|
MXPB15 | ¥2,920 | |
| 77103-52120 |
Sub-tank Sub-assy, Fuel
2020-08 → 2024-01
ended
|
MXPJ1# | ¥3,210 | |
| 77103-52090 |
Sub-tank Sub-assy, Fuel
2024-01 → —
|
MXPB10 | ¥2,920 | |
| 77103-52110 |
Sub-tank Sub-assy, Fuel
2024-01 → —
|
MXPB15 | ¥2,920 | |
| 77103-52130 |
Sub-tank Sub-assy, Fuel
2024-01 → —
|
MXPJ1# | ¥2,920 | |
| 77144 — Retainer, Fuel Pump Gauge | ||||
| 77144-30030 |
Retainer, Fuel Pump Gauge
2020-08 → 2024-01
ended
|
MXPB10,MXPJ1# | ¥1,270 | |
| 77144-30030 |
Retainer, Fuel Pump Gauge
2020-08 → 2024-01
ended
|
MXPB15 | ¥1,270 | |
| 77144-30030 |
Retainer, Fuel Pump Gauge
2024-01 → —
|
MXPB10,MXPJ1# | ¥1,270 | |
| 77144-30030 |
Retainer, Fuel Pump Gauge
2024-01 → —
|
MXPB15 | ¥1,270 | |
| 77169B — Gasket, Fuel Suction Tube Set, NO.1 | ||||
| 77169-47030 |
Gasket, Fuel Suction Tube Set, NO.1
2020-08 → 2024-01
ended
|
MXPB10,MXPJ1# | ¥220 | |
| 77169-47030 |
Gasket, Fuel Suction Tube Set, NO.1
2020-08 → 2024-01
ended
|
MXPB15 | ¥220 | |
| 77169-47030 |
Gasket, Fuel Suction Tube Set, NO.1
2024-01 → —
|
MXPB10,MXPJ1# | ¥220 | |
| 77169-47030 |
Gasket, Fuel Suction Tube Set, NO.1
2024-01 → —
|
MXPB15 | ¥220 | |
| 77196 — Clamp, Evaporation Vent Tube, NO.1 | ||||
| 77196-52010 |
Clamp, Evaporation Vent Tube, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# | ¥440 | |
| 77196-52010 |
Clamp, Evaporation Vent Tube, NO.1
2024-01 → —
|
MXPJ1# | ¥440 | |
| 77197F — Clamp, Evaporation Vent Tube, NO.2 | ||||
| 77197-52020 |
Clamp, Evaporation Vent Tube, NO.2
2022-08 → 2024-01
ended
|
MXPJ1# | ¥380 | |
| 77197-52020 |
Clamp, Evaporation Vent Tube, NO.2
2024-01 → —
|
MXPJ1# | ¥380 | |
| 77209F — Tube Sub-assy, Fuel Tank Main | ||||
| 77209-52280 |
Tube Sub-assy, Fuel Tank Main
2020-08 → 2024-01
ended
|
MXPB10 | ¥1,350 | |
| 77209-52290 |
Tube Sub-assy, Fuel Tank Main
2020-08 → 2024-01
ended
|
MXPB15 | ¥1,090 | |
| 77209-52300 |
Tube Sub-assy, Fuel Tank Main
2020-08 → 2022-08
ended
|
MXPJ1# | ¥1,190 | |
| 77209-52310 |
Tube Sub-assy, Fuel Tank Main
2022-08 → 2024-01
ended
|
MXPJ1# | ¥1,190 | |
| 77209-52280 |
Tube Sub-assy, Fuel Tank Main
2024-01 → —
|
MXPB10 | ¥1,350 | |
| 77209-52290 |
Tube Sub-assy, Fuel Tank Main
2024-01 → —
|
MXPB15 | ¥1,090 | |
| 77209-52310 |
Tube Sub-assy, Fuel Tank Main
2024-01 → —
|
MXPJ1# | ¥1,190 | |
| 77216A — Support, Fuel Tank Filler Pipe, NO.1 | ||||
| 77216-52300 |
Support, Fuel Tank Filler Pipe, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥300 | |
| 77216-52300 |
Support, Fuel Tank Filler Pipe, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# | ¥300 | |
| 77217C — Support, Fuel Tank Filler Pipe, NO.2 | ||||
| 77217-52190 |
Support, Fuel Tank Filler Pipe, NO.2
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥860 | |
| 77217-52190 |
Support, Fuel Tank Filler Pipe, NO.2
2024-01 → —
|
MXPB1#,MXPJ1# | ¥860 | |
| 77218A — Support, Fuel Tank Filler Pipe, NO.3 | ||||
| 77218-52050 |
Support, Fuel Tank Filler Pipe, NO.3
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥730 | |
| 77218-52060 |
Support, Fuel Tank Filler Pipe, NO.3
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥800 | |
| 77218-52050 |
Support, Fuel Tank Filler Pipe, NO.3
2024-01 → —
|
MXPB10,MXPJ10 | ¥730 | |
| 77218-52060 |
Support, Fuel Tank Filler Pipe, NO.3
2024-01 → —
|
MXPB15,MXPJ15 | ¥800 | |
| 77241W — Clip, Tube Joint | ||||
| 77241-33011 |
Clip, Tube Joint
2020-08 → 2021-03
ended
|
MXPB1#,MXPJ1# | ¥80 | |
| 77241-60550 |
Clip, Tube Joint
2021-04 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥50 | |
| 77241-60550 |
Clip, Tube Joint
2024-01 → —
|
MXPB1#,MXPJ1# | ¥50 | |
| 77277R — Protector, Fuel Tank Filler Pipe | ||||
| 77277-52120 |
Protector, Fuel Tank Filler Pipe
2020-08 → 2024-01
ended
|
MXPB10,MXPJ10 | ¥1,090 | |
| 77277-52130 |
Protector, Fuel Tank Filler Pipe
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥590 | |
| 77277-52120 |
Protector, Fuel Tank Filler Pipe
2024-01 → —
|
MXPB10,MXPJ10 | ¥1,090 | |
| 77277-52130 |
Protector, Fuel Tank Filler Pipe
2024-01 → —
|
MXPB15,MXPJ15 | ¥590 | |
| 77286M — Clamp, Fuel Tube, NO.6 | ||||
| 77299-52130 |
Clamp, Fuel Tube, NO.6
2022-08 → 2024-01
ended
|
MXPJ15 | ¥270 | |
| 77299-52130 |
Clamp, Fuel Tube, NO.6
2024-01 → —
|
MXPJ15 | ¥270 | |
| 77291A — Shield, Fuel Tank Filler Pipe | ||||
| 77291-K0010 |
Shield, Fuel Tank Filler Pipe
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥980 | |
| 77291-K0010 |
Shield, Fuel Tank Filler Pipe
2024-01 → —
|
MXPB1#,MXPJ1# | ¥980 | |
| 77299A — Clamp, Fuel Tube, NO.5 | ||||
| 77299-52120 |
Clamp, Fuel Tube, NO.5
2022-08 → 2024-01
ended
|
MXPJ15 | ¥350 | |
| 77299-52120 |
Clamp, Fuel Tube, NO.5
2024-01 → —
|
MXPJ15 | ¥350 | |
| 77310A — Cap Assy, Fuel Tank | ||||
| 77300-12020 |
Cap Assy, Fuel Tank
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥1,660 | |
| 77300-12020 |
Cap Assy, Fuel Tank
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,660 | |
| 77316 — Gasket, Fuel Tank Cap | ||||
| 77316-52040 |
Gasket, Fuel Tank Cap
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥230 | |
| 77316-52040 |
Gasket, Fuel Tank Cap
2024-01 → —
|
MXPB1#,MXPJ1# | ¥230 | |
| 77391A — Ring, Fuel Inlet Box | ||||
| 77391-12020 |
Ring, Fuel Inlet Box
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥180 | |
| 77391-12020 |
Ring, Fuel Inlet Box
2024-01 → —
|
MXPB1#,MXPJ1# | ¥180 | |
| 77512C — Bracket, Fuel Tank | ||||
| 77512-35140 |
Bracket, Fuel Tank
2020-08 → 2024-01
ended
|
MXPB10,MXPJ1# | ¥230 | |
| 77512-35140 |
Bracket, Fuel Tank
2020-08 → 2024-01
ended
|
MXPB15 | ¥230 | |
| 77512-35140 |
Bracket, Fuel Tank
2024-01 → —
|
MXPB10,MXPJ1# | ¥230 | |
| 77512-35140 |
Bracket, Fuel Tank
2024-01 → —
|
MXPB15 | ¥230 | |
| 77606 — Protector Sub-assy, Fuel Tank, NO.1 | ||||
| 77606-52140 |
Protector Sub-assy, Fuel Tank, NO.1
2020-08 → 2022-07
ended
|
MXPB10 | ¥3,230 | |
| 77606-52141 |
Protector Sub-assy, Fuel Tank, NO.1
2022-07 → 2024-01
ended
|
MXPB10 | ¥2,930 | |
| 77606-52150 |
Protector Sub-assy, Fuel Tank, NO.1
2020-08 → 2024-01
ended
|
MXPB15 | ¥3,000 | |
| 77606-52160 |
Protector Sub-assy, Fuel Tank, NO.1
2020-08 → 2022-08
ended
|
MXPJ1# | ¥3,330 | |
| 77606-52160 |
Protector Sub-assy, Fuel Tank, NO.1
2020-08 → 2022-09
ended
|
MXPJ10 GRS | ¥3,330 | |
| 77606-52161 |
Protector Sub-assy, Fuel Tank, NO.1
2022-09 → 2024-01
ended
|
MXPJ1# | ¥3,030 | |
| 77606-52141 |
Protector Sub-assy, Fuel Tank, NO.1
2024-01 → —
|
MXPB10 | ¥2,930 | |
| 77606-52150 |
Protector Sub-assy, Fuel Tank, NO.1
2024-01 → —
|
MXPB15 | ¥3,000 | |
| 77606-52161 |
Protector Sub-assy, Fuel Tank, NO.1
2024-01 → —
|
MXPJ1# | ¥3,030 | |
| 77701W — Hose Sub-assy, Canister Outlet, NO.1 | ||||
| 77701-52060 |
Hose Sub-assy, Canister Outlet, NO.1
2020-08 → 2024-01
ended
|
MXPB10 | ¥610 | |
| 77701-52070 |
Hose Sub-assy, Canister Outlet, NO.1
2020-08 → 2024-01
ended
|
MXPB15 | ¥1,070 | |
| 77701-52080 |
Hose Sub-assy, Canister Outlet, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# | ¥580 | |
| 77701-52060 |
Hose Sub-assy, Canister Outlet, NO.1
2024-01 → —
|
MXPB10 | ¥610 | |
| 77701-52070 |
Hose Sub-assy, Canister Outlet, NO.1
2024-01 → —
|
MXPB15 | ¥1,070 | |
| 77701-52080 |
Hose Sub-assy, Canister Outlet, NO.1
2024-01 → —
|
MXPJ1# | ¥580 | |
| 77730C — Canister Assy, Charcoal, NO.2 | ||||
| 77730-52020 |
Canister Assy, Charcoal, NO.2
2022-08 → 2024-01
ended
|
MXPJ15 | ¥4,480 | |
| 77730-52040 |
Canister Assy, Charcoal, NO.2
2022-08 → 2024-01
ended
|
MXPJ10 | ¥4,480 | |
| 77730-52020 |
Canister Assy, Charcoal, NO.2
2024-01 → —
|
MXPJ15 | ¥4,480 | |
| 77730-52040 |
Canister Assy, Charcoal, NO.2
2024-01 → —
|
MXPJ10 | ¥4,480 | |
| 77752 — Bracket, Charcoal Canister Support | ||||
| 77752-52080 |
Bracket, Charcoal Canister Support
2022-08 → 2024-01
ended
|
MXPJ15 | ¥1,110 | |
| 77752-52080 |
Bracket, Charcoal Canister Support
2024-01 → —
|
MXPJ15 | ¥1,110 | |
| 77785 — Harness, Fuel Pump | ||||
| 77785-52120 |
Harness, Fuel Pump
2020-08 → 2024-01
ended
|
MXPJ1# | ¥870 | |
| 77785-76010 |
Harness, Fuel Pump
2020-08 → 2024-01
ended
|
MXPB1# | ¥870 | |
| 77785-52141 |
Harness, Fuel Pump
2024-01 → —
|
MXPJ1# | ¥870 | |
| 77785-76010 |
Harness, Fuel Pump
2024-01 → —
|
MXPB1# | ¥870 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
