Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

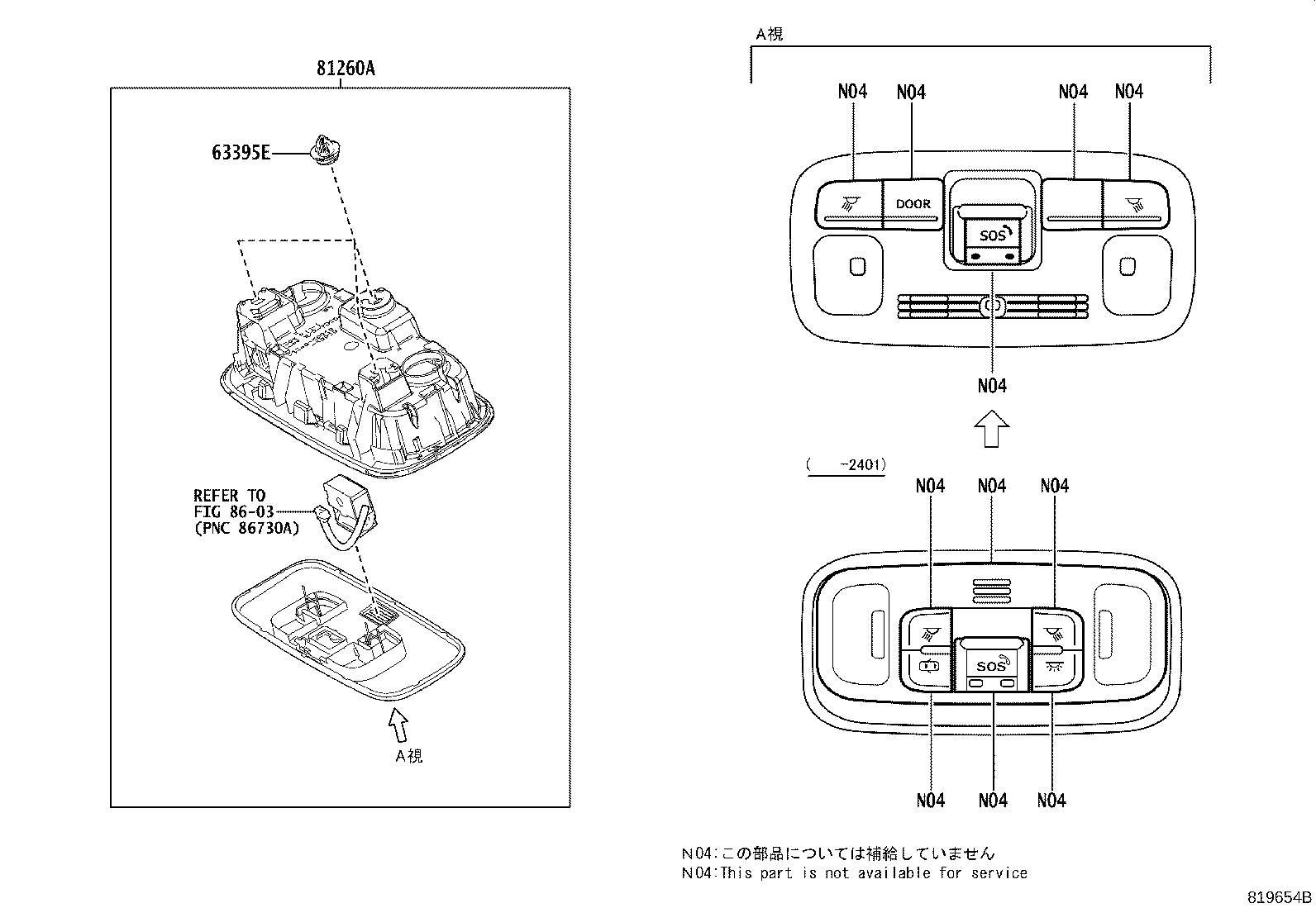

Exploded illustration 819654B 8603 — not listed in this catalogue 63395E — CLIP(FOR MAP LAMP) (2 parts) 81260A — LAMP ASSY, MAP (17 parts)
819654B · 2 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
63395E — Clip(FOR MAP LAMP)
90467-09240 Clip(FOR MAP LAMP)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥80
90467-09240 Clip(FOR MAP LAMP)
2024-01 → —
MXPB1#,MXPJ1# ¥80
81260A — Lamp Assy, Map
81260-K0010-B0 note Lamp Assy, Map
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥17,000
81260-K0011-B0 note Lamp Assy, Map
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥17,000
81260-K0020-B0 note Lamp Assy, Map
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDZ,Z ¥20,600
81260-K0020-B0 note Lamp Assy, Map
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDX,X ¥20,600
81260-K0020-B0 note Lamp Assy, Map
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG ¥20,600
81260-K0020-C0 note Lamp Assy, Map
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# HBDZ,Z ¥20,600
81260-K0020-C0 note Lamp Assy, Map
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG ¥20,600
81260-K0021-B0 note Lamp Assy, Map
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥20,600
81260-K0021-B0 note Lamp Assy, Map
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥20,600
81260-K0021-B0 note Lamp Assy, Map
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥20,600
81260-K0021-C0 note Lamp Assy, Map
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥20,600
81260-K0021-C0 note Lamp Assy, Map
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG ¥20,600
81260-K0021-C0 note Lamp Assy, Map
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥20,600
81260-52420-B0 note Lamp Assy, Map
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥12,500
81260-52420-B0 note Lamp Assy, Map
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥12,500
81260-52420-C0 note Lamp Assy, Map
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥12,500
81260-52420-C0 note Lamp Assy, Map
2024-01 → —
MXPB10,MXPJ10 GRS ¥12,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
