Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

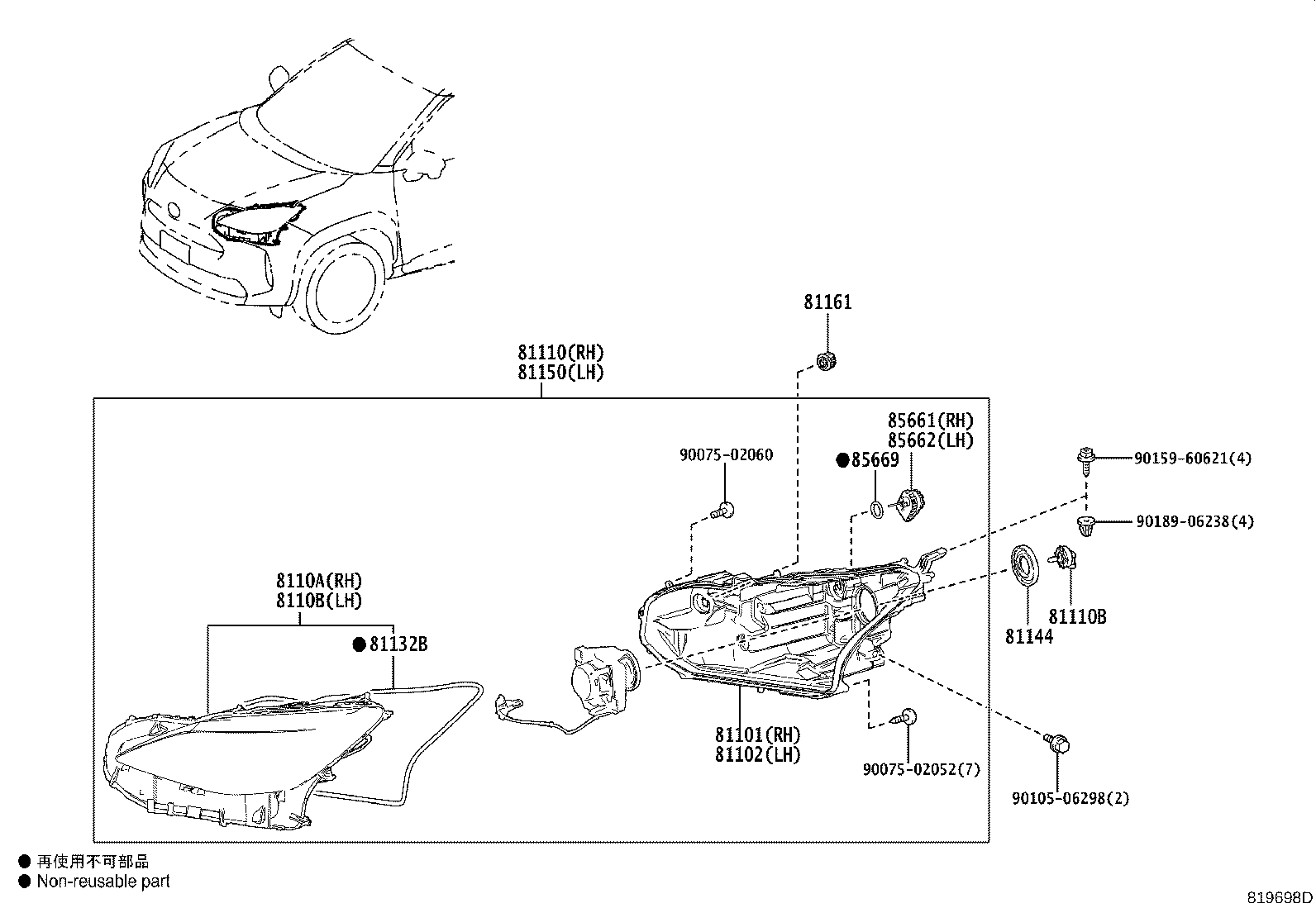

Exploded illustration 819698D 9010506298 — not listed in this catalogue 9015960621 — not listed in this catalogue 9018906238 — not listed in this catalogue 81161 — LED, CLEARANCE LAMP (3 parts) 81144 — COVER, HEADLAMP, NO.1 (6 parts) 81110B — BULB(FOR HEADLAMP, NO.1) (2 parts) 85669 — PACKING, HEADLAMP LEVELING MOTOR BASE (2 parts) 81132B — GASKET, HEADLAMP LENS (2 parts) 8110A — LENS SUB-ASSY, HEADLAMP, RH (6 parts) 8110B — LENS SUB-ASSY, HEADLAMP, LH (6 parts) 81101 — HOUSING SUB-ASSY, HEADLAMP, RH (8 parts) 81102 — HOUSING SUB-ASSY, HEADLAMP, LH (8 parts) 85661 — MOTOR, HEADLAMP LEVELING, RH (4 parts) 85662 — MOTOR, HEADLAMP LEVELING, LH (4 parts) 9007502060 — not listed in this catalogue 9007502052 — not listed in this catalogue 81110 — HEADLAMP ASSY, RH (8 parts) 81150 — HEADLAMP ASSY, LH (8 parts)
819698D · 13 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
81101 — Housing Sub-assy, Headlamp, RH
8111B-52N10 Housing Sub-assy, Headlamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥10,600
8111B-52N20 Housing Sub-assy, Headlamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥13,500
8111B-52N20 note Housing Sub-assy, Headlamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥13,500
8111B-52N30 note Housing Sub-assy, Headlamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥18,000
8111B-52N10 Housing Sub-assy, Headlamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥10,600
8111B-52N20 Housing Sub-assy, Headlamp, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥13,500
8111B-52N20 note Housing Sub-assy, Headlamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥13,500
8111B-52P90 note Housing Sub-assy, Headlamp, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥10,500
81102 — Housing Sub-assy, Headlamp, LH
8115B-52N10 Housing Sub-assy, Headlamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥10,600
8115B-52N20 Housing Sub-assy, Headlamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥13,500
8115B-52N20 note Housing Sub-assy, Headlamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥13,500
8115B-52N30 note Housing Sub-assy, Headlamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥18,000
8115B-52N10 Housing Sub-assy, Headlamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥10,600
8115B-52N20 Housing Sub-assy, Headlamp, LH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥13,500
8115B-52N20 note Housing Sub-assy, Headlamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥13,500
8115B-52P90 note Housing Sub-assy, Headlamp, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥10,500
8110A — Lens Sub-assy, Headlamp, RH
8110A-52N10 Lens Sub-assy, Headlamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥14,800
8110A-52N20 Lens Sub-assy, Headlamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥23,500
8110A-52N20 note Lens Sub-assy, Headlamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥23,500
8110A-52N10 Lens Sub-assy, Headlamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥14,800
8110A-52N20 Lens Sub-assy, Headlamp, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥23,500
8110A-52N20 note Lens Sub-assy, Headlamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥23,500
8110B — Lens Sub-assy, Headlamp, LH
8110B-52N10 Lens Sub-assy, Headlamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥14,800
8110B-52N20 Lens Sub-assy, Headlamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥23,500
8110B-52N20 note Lens Sub-assy, Headlamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥23,500
8110B-52N10 Lens Sub-assy, Headlamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥14,800
8110B-52N20 Lens Sub-assy, Headlamp, LH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥23,500
8110B-52N20 note Lens Sub-assy, Headlamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥23,500
81110 — Headlamp Assy, RH
81110-52N20 Headlamp Assy, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥97,800
81110-52N20 note Headlamp Assy, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥97,800
81130-52N10 Headlamp Assy, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥30,500
81145-52N30 note Headlamp Assy, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥156,000
81110-52N21 note Headlamp Assy, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥88,900
81110-52N21 Headlamp Assy, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥88,900
81130-52N10 Headlamp Assy, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥30,500
81145-52P90 note Headlamp Assy, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥96,300
81110B — Bulb(FOR HEADLAMP, NO.1)
90981-13091 note Bulb(FOR HEADLAMP, NO.1)
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥3,540
90981-13091 note Bulb(FOR HEADLAMP, NO.1)
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥3,540
81132B — Gasket, Headlamp Lens
81132-50590 Gasket, Headlamp Lens
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,230
81132-50590 Gasket, Headlamp Lens
2024-01 → —
MXPB1#,MXPJ1# ¥2,230
81144 — Cover, Headlamp, NO.1
90075-65006 Cover, Headlamp, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥460
90075-66016 Cover, Headlamp, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥610
90075-66016 note Cover, Headlamp, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥610
90075-65006 Cover, Headlamp, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥460
90075-66016 Cover, Headlamp, NO.1
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥610
90075-66016 note Cover, Headlamp, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥610
81150 — Headlamp Assy, LH
81150-52N20 Headlamp Assy, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥97,800
81150-52N20 note Headlamp Assy, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥97,800
81170-52N10 Headlamp Assy, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥30,500
81185-52N30 note Headlamp Assy, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥156,000
81150-52N21 Headlamp Assy, LH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥88,900
81150-52N21 note Headlamp Assy, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥88,900
81170-52N10 Headlamp Assy, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥30,500
81185-52P90 note Headlamp Assy, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥96,300
81161 — Led, Clearance Lamp
81161-52N10 Led, Clearance Lamp
2020-08 → 2022-07 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥3,520
81965-52060 Led, Clearance Lamp
2022-07 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥3,200
81965-52060 Led, Clearance Lamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥3,200
85661 — Motor, Headlamp Leveling, RH
85661-12010 Motor, Headlamp Leveling, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥3,710
85661-45010 note Motor, Headlamp Leveling, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥10,500
85661-12010 Motor, Headlamp Leveling, RH
2024-01 → —
MXPB1#,MXPJ1# ¥3,710
85661-45010 note Motor, Headlamp Leveling, RH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥10,500
85662 — Motor, Headlamp Leveling, LH
85661-12010 Motor, Headlamp Leveling, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥3,710
85691-45010 note Motor, Headlamp Leveling, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥10,500
85661-12010 Motor, Headlamp Leveling, LH
2024-01 → —
MXPB1#,MXPJ1# ¥3,710
85691-45010 note Motor, Headlamp Leveling, LH
2024-01 → —
MXPB1#,MXPJ1# HBDZ,Z ¥10,500
85669 — Packing, Headlamp Leveling Motor Base
90075-99120 Packing, Headlamp Leveling Motor Base
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥220
90075-99120 Packing, Headlamp Leveling Motor Base
2024-01 → —
MXPB1#,MXPJ1# ¥220
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
