Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

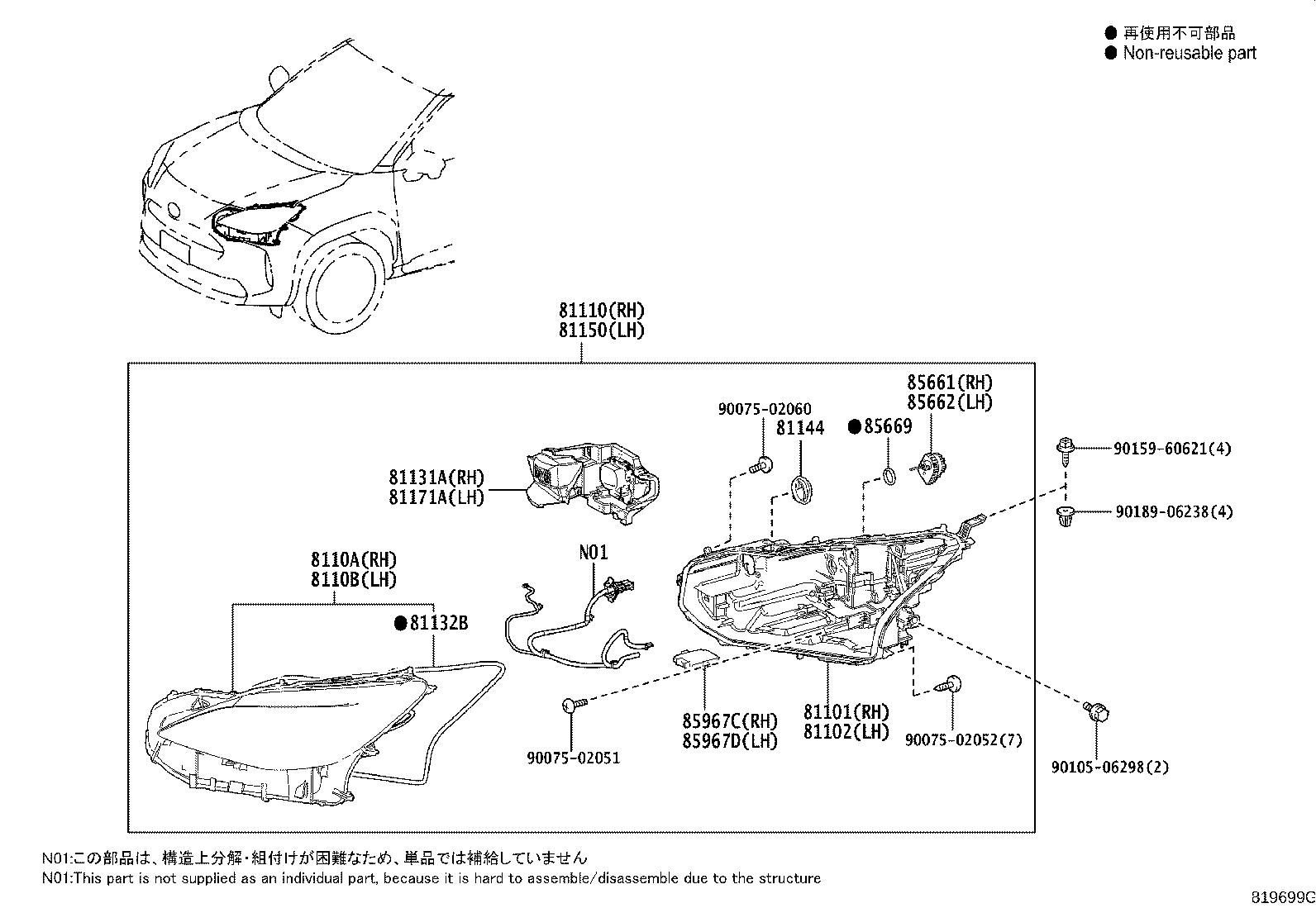

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81101 — Housing Sub-assy, Headlamp, RH | ||||
| 8111B-52N10 |
Housing Sub-assy, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥10,600 | |
| 8111B-52N20 |
Housing Sub-assy, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥13,500 | |
| 8111B-52N20 note |
Housing Sub-assy, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥13,500 | |
| 8111B-52N30 note |
Housing Sub-assy, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥18,000 | |
| 8111B-52N10 |
Housing Sub-assy, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X | ¥10,600 | |
| 8111B-52N20 |
Housing Sub-assy, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥13,500 | |
| 8111B-52N20 note |
Housing Sub-assy, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥13,500 | |
| 8111B-52P90 note |
Housing Sub-assy, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥10,500 | |
| 81102 — Housing Sub-assy, Headlamp, LH | ||||
| 8115B-52N10 |
Housing Sub-assy, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥10,600 | |
| 8115B-52N20 |
Housing Sub-assy, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥13,500 | |
| 8115B-52N20 note |
Housing Sub-assy, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥13,500 | |
| 8115B-52N30 note |
Housing Sub-assy, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥18,000 | |
| 8115B-52N10 |
Housing Sub-assy, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X | ¥10,600 | |
| 8115B-52N20 note |
Housing Sub-assy, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥13,500 | |
| 8115B-52N20 |
Housing Sub-assy, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥13,500 | |
| 8115B-52P90 note |
Housing Sub-assy, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥10,500 | |
| 8110A — Lens Sub-assy, Headlamp, RH | ||||
| 8110A-52N10 |
Lens Sub-assy, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥14,800 | |
| 8110A-52N20 |
Lens Sub-assy, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥23,500 | |
| 8110A-52N20 note |
Lens Sub-assy, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥23,500 | |
| 8110A-52N10 |
Lens Sub-assy, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X | ¥14,800 | |
| 8110A-52N20 |
Lens Sub-assy, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥23,500 | |
| 8110A-52N20 note |
Lens Sub-assy, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥23,500 | |
| 8110B — Lens Sub-assy, Headlamp, LH | ||||
| 8110B-52N10 |
Lens Sub-assy, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥14,800 | |
| 8110B-52N20 |
Lens Sub-assy, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥23,500 | |
| 8110B-52N20 note |
Lens Sub-assy, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥23,500 | |
| 8110B-52N10 |
Lens Sub-assy, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X | ¥14,800 | |
| 8110B-52N20 |
Lens Sub-assy, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥23,500 | |
| 8110B-52N20 note |
Lens Sub-assy, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥23,500 | |
| 81110 — Headlamp Assy, RH | ||||
| 81110-52N20 |
Headlamp Assy, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥97,800 | |
| 81110-52N20 note |
Headlamp Assy, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥97,800 | |
| 81130-52N10 |
Headlamp Assy, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥30,500 | |
| 81145-52N30 note |
Headlamp Assy, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥156,000 | |
| 81110-52N21 |
Headlamp Assy, RH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥88,900 | |
| 81110-52N21 note |
Headlamp Assy, RH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥88,900 | |
| 81130-52N10 |
Headlamp Assy, RH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X | ¥30,500 | |
| 81145-52P90 note |
Headlamp Assy, RH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥96,300 | |
| 81131A — Unit, Headlamp, RH | ||||
| 81130-52N20 |
Unit, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥33,900 | |
| 81130-52N20 note |
Unit, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥33,900 | |
| 81130-52N30 note |
Unit, Headlamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥65,700 | |
| 81130-52N20 |
Unit, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥33,900 | |
| 81130-52N20 note |
Unit, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥33,900 | |
| 81130-52P90 note |
Unit, Headlamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥43,800 | |
| 81132B — Gasket, Headlamp Lens | ||||
| 81132-50590 |
Gasket, Headlamp Lens
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥2,230 | |
| 81132-50590 |
Gasket, Headlamp Lens
2024-01 → —
|
MXPB1#,MXPJ1# | ¥2,230 | |
| 81144 — Cover, Headlamp, NO.1 | ||||
| 90075-65006 |
Cover, Headlamp, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥460 | |
| 90075-66016 note |
Cover, Headlamp, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥610 | |
| 90075-66016 |
Cover, Headlamp, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥610 | |
| 90075-65006 |
Cover, Headlamp, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X | ¥460 | |
| 90075-66016 |
Cover, Headlamp, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥610 | |
| 90075-66016 note |
Cover, Headlamp, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥610 | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-52N20 |
Headlamp Assy, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥97,800 | |
| 81150-52N20 note |
Headlamp Assy, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥97,800 | |
| 81170-52N10 |
Headlamp Assy, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥30,500 | |
| 81185-52N30 note |
Headlamp Assy, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥156,000 | |
| 81150-52N21 |
Headlamp Assy, LH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥88,900 | |
| 81150-52N21 note |
Headlamp Assy, LH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥88,900 | |
| 81170-52N10 |
Headlamp Assy, LH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X | ¥30,500 | |
| 81185-52P90 note |
Headlamp Assy, LH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥96,300 | |
| 81171A — Unit, Headlamp, LH | ||||
| 81170-52N20 |
Unit, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥33,900 | |
| 81170-52N20 note |
Unit, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥33,900 | |
| 81170-52N30 note |
Unit, Headlamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥65,700 | |
| 81170-52N20 |
Unit, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥33,900 | |
| 81170-52N20 note |
Unit, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥33,900 | |
| 81170-52P90 note |
Unit, Headlamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥43,800 | |
| 85661 — Motor, Headlamp Leveling, RH | ||||
| 85661-12010 |
Motor, Headlamp Leveling, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥3,710 | |
| 85661-45010 note |
Motor, Headlamp Leveling, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥10,500 | |
| 85661-12010 |
Motor, Headlamp Leveling, RH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥3,710 | |
| 85661-45010 note |
Motor, Headlamp Leveling, RH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥10,500 | |
| 85662 — Motor, Headlamp Leveling, LH | ||||
| 85661-12010 |
Motor, Headlamp Leveling, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥3,710 | |
| 85691-45010 note |
Motor, Headlamp Leveling, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥10,500 | |
| 85661-12010 |
Motor, Headlamp Leveling, LH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥3,710 | |
| 85691-45010 note |
Motor, Headlamp Leveling, LH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥10,500 | |
| 85669 — Packing, Headlamp Leveling Motor Base | ||||
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥220 | |
| 90075-99120 |
Packing, Headlamp Leveling Motor Base
2024-01 → —
|
MXPB1#,MXPJ1# | ¥220 | |
| 85967C — Computer, Light Control Led, RH | ||||
| 85967-48100 note |
Computer, Light Control Led, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥21,700 | |
| 8596A-52020 note |
Computer, Light Control Led, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥8,900 | |
| 8596A-52020 note |
Computer, Light Control Led, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥8,900 | |
| 8596A-52020 |
Computer, Light Control Led, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥8,900 | |
| 8596A-52021 |
Computer, Light Control Led, RH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥8,000 | |
| 8596A-52021 note |
Computer, Light Control Led, RH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥8,000 | |
| 8596A-52021 note |
Computer, Light Control Led, RH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥8,000 | |
| 85967D — Computer, Light Control Led, LH | ||||
| 85967-48090 note |
Computer, Light Control Led, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥21,700 | |
| 8596A-52010 |
Computer, Light Control Led, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥8,900 | |
| 8596A-52010 note |
Computer, Light Control Led, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDX,X | ¥8,900 | |
| 8596A-52010 note |
Computer, Light Control Led, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥8,900 | |
| 8596A-52011 |
Computer, Light Control Led, LH
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥8,000 | |
| 8596A-52011 note |
Computer, Light Control Led, LH
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥8,000 | |
| 8596A-52011 note |
Computer, Light Control Led, LH
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥8,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
