Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

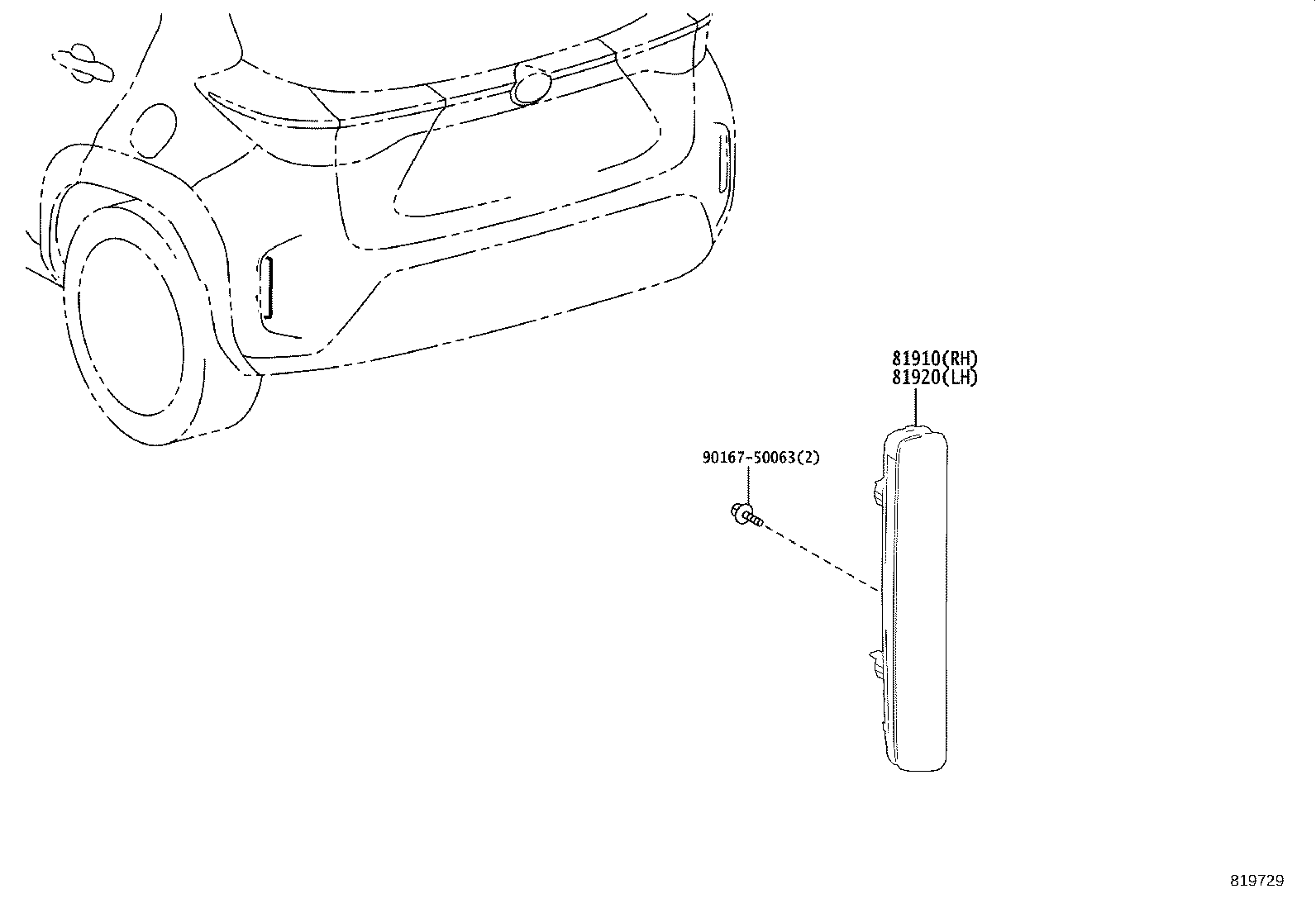

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81910 — Reflector Assy, Reflex, RH | ||||
| 81910-47010 |
Reflector Assy, Reflex, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥1,290 | |
| 81910-47010 |
Reflector Assy, Reflex, RH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,290 | |
| 81920 — Reflector Assy, Reflex, LH | ||||
| 81920-47010 |
Reflector Assy, Reflex, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥1,290 | |
| 81920-47010 |
Reflector Assy, Reflex, LH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,290 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
