Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

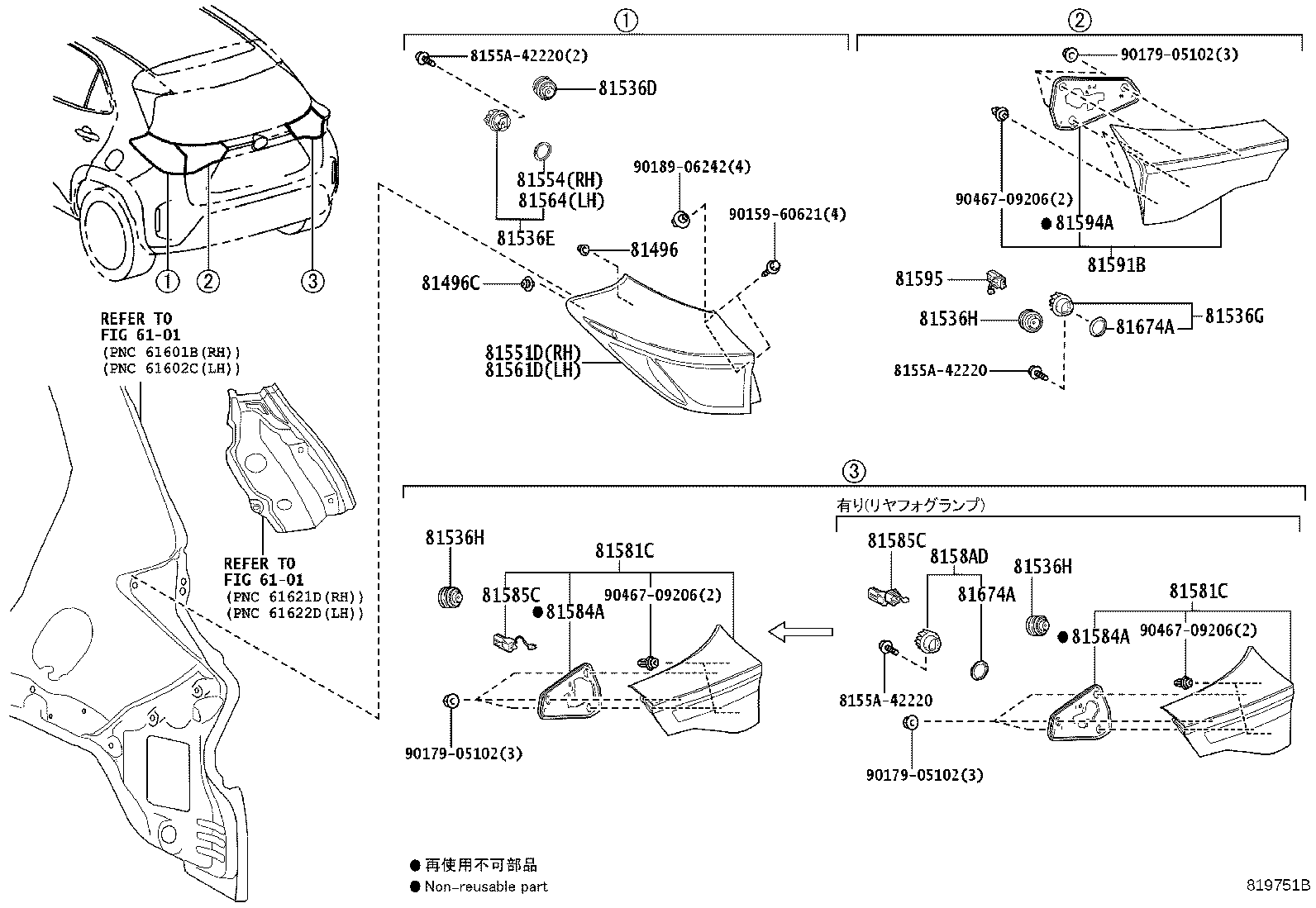

Exploded illustration 819751B 81536H — LED, TAILLAMP, NO.2 (6 parts) 8155A42220 — not listed in this catalogue 81536H — LED, TAILLAMP, NO.2 (6 parts) 81595 — SOCKET & WIRE, REAR LAMP, LH (9 parts) 81674A — GASKET, BACK-UP LAMP (10 parts) 81536G — LED, BACK-UP LAMP (6 parts) 81536H — LED, TAILLAMP, NO.2 (6 parts) 6101 — not listed in this catalogue 6101 — not listed in this catalogue 9046709206 — not listed in this catalogue 9017905102 — not listed in this catalogue 8155A42220 — not listed in this catalogue 9018906242 — not listed in this catalogue 9015960621 — not listed in this catalogue 8155A42220 — not listed in this catalogue 9046709206 — not listed in this catalogue 9017905102 — not listed in this catalogue 9046709206 — not listed in this catalogue 9017905102 — not listed in this catalogue 81594A — GASKET, REAR LAMP LH (8 parts) 81591B — LENS AND BODY, REAR LAMP, LH (12 parts) 81496 — GUIDE, REAR COMBINATION LAMP (2 parts) 81496C — GUIDE, REAR COMBINATION LAMP, NO.2 (2 parts) 81554 — GASKET, REAR COMBINATION LAMP BODY, RH (2 parts) 81564 — GASKET, REAR COMBINATION LAMP BODY, LH (2 parts) 81536E — LED, STOP LAMP (4 parts) 81551D — LENS & BODY, REAR COMBINATION LAMP, RH (6 parts) 81561D — LENS & BODY, REAR COMBINATION LAMP, LH (6 parts) 81581C — LENS AND BODY, REAR LAMP, RH (20 parts) 81585C — SOCKET & WIRE, REAR LAMP, RH (16 parts) 8158AD — LED, REAR FOG LAMP (4 parts) 81584A — GASKET, REAR LAMP RH (8 parts) 81674A — GASKET, BACK-UP LAMP (10 parts) 81581C — LENS AND BODY, REAR LAMP, RH (20 parts) 81584A — GASKET, REAR LAMP RH (8 parts) 81536D — LED, TAILLAMP (4 parts) 81585C — SOCKET & WIRE, REAR LAMP, RH (16 parts)
819751B · 24 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
127 parts on this figure
Part number Description Fitment Price
81496 — Guide, Rear Combination Lamp
81496-52020 Guide, Rear Combination Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥70
81496-52020 Guide, Rear Combination Lamp
2024-01 → —
MXPB1#,MXPJ1# ¥70
81496C — Guide, Rear Combination Lamp, NO.2
81496-60010 Guide, Rear Combination Lamp, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥100
81496-60010 Guide, Rear Combination Lamp, NO.2
2024-01 → —
MXPB1#,MXPJ1# ¥100
81536D — Led, Taillamp
81536-52E60 note Led, Taillamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥2,270
81536-52E60 Led, Taillamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥2,270
81536-52E60 Led, Taillamp
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥2,270
81536-52E60 note Led, Taillamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥2,270
81536E — Led, Stop Lamp
81536-42230 Led, Stop Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥2,270
81536-42230 note Led, Stop Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥2,270
81536-42230 Led, Stop Lamp
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥2,270
81536-42230 note Led, Stop Lamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥2,270
81536G — Led, Back-up Lamp
8159A-52420 Led, Back-up Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥2,500
8159A-52420 note Led, Back-up Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥2,500
8159A-52420 note Led, Back-up Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥2,500
8159A-52420 Led, Back-up Lamp
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥2,500
8159A-52420 note Led, Back-up Lamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥2,500
8159A-52420 note Led, Back-up Lamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥2,500
81536H — Led, Taillamp, NO.2
81536-52E60 Led, Taillamp, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥2,270
81536-52E60 note Led, Taillamp, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥2,270
81536-52E60 note Led, Taillamp, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥2,270
81536-52E60 Led, Taillamp, NO.2
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥2,270
81536-52E60 note Led, Taillamp, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥2,270
81536-52E60 note Led, Taillamp, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥2,270
81551D — Lens & Body, Rear Combination Lamp, RH
81551-52E50 Lens & Body, Rear Combination Lamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥15,200
81551-52E60 Lens & Body, Rear Combination Lamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥20,600
81551-52E60 note Lens & Body, Rear Combination Lamp, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥20,600
81551-52E50 Lens & Body, Rear Combination Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥15,200
81551-52E60 Lens & Body, Rear Combination Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥20,600
81551-52E60 note Lens & Body, Rear Combination Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥20,600
81554 — Gasket, Rear Combination Lamp Body, RH
81538-42200 Gasket, Rear Combination Lamp Body, RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥670
81538-42200 Gasket, Rear Combination Lamp Body, RH
2024-01 → —
MXPB1#,MXPJ1# ¥670
81561D — Lens & Body, Rear Combination Lamp, LH
81561-52E50 Lens & Body, Rear Combination Lamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥15,200
81561-52E60 note Lens & Body, Rear Combination Lamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥20,600
81561-52E60 Lens & Body, Rear Combination Lamp, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥20,600
81561-52E50 Lens & Body, Rear Combination Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥15,200
81561-52E60 Lens & Body, Rear Combination Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥20,600
81561-52E60 note Lens & Body, Rear Combination Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥20,600
81564 — Gasket, Rear Combination Lamp Body, LH
81538-42200 Gasket, Rear Combination Lamp Body, LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥670
81538-42200 Gasket, Rear Combination Lamp Body, LH
2024-01 → —
MXPB1#,MXPJ1# ¥670
81581C — Lens And Body, Rear Lamp, RH
81581-52400 note Lens And Body, Rear Lamp, RH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥12,400
81581-52401 note Lens And Body, Rear Lamp, RH
2023-11 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥12,400
81581-52401 note Lens And Body, Rear Lamp, RH
2023-01 → 2023-09 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥12,400
81581-52402 note Lens And Body, Rear Lamp, RH
2023-09 → 2023-11 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥11,300
81581-52410 note Lens And Body, Rear Lamp, RH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥11,200
81581-52411 note Lens And Body, Rear Lamp, RH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥10,100
81581-52420 note Lens And Body, Rear Lamp, RH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥20,400
81581-52420 Lens And Body, Rear Lamp, RH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥20,400
81581-52421 Lens And Body, Rear Lamp, RH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥18,500
81581-52421 note Lens And Body, Rear Lamp, RH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥18,500
81581-52430 note Lens And Body, Rear Lamp, RH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥19,400
81581-52430 note Lens And Body, Rear Lamp, RH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥19,400
81581-52431 note Lens And Body, Rear Lamp, RH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥17,600
81581-52431 note Lens And Body, Rear Lamp, RH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥17,600
81581-52402 Lens And Body, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥11,300
81581-52411 note Lens And Body, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥10,100
81581-52421 Lens And Body, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥18,500
81581-52421 note Lens And Body, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥18,500
81581-52431 note Lens And Body, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥17,600
81581-52431 note Lens And Body, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥17,600
81584A — Gasket, Rear Lamp RH
81584-52400 Gasket, Rear Lamp RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥750
81584-52420 note Gasket, Rear Lamp RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥750
81584-52420 Gasket, Rear Lamp RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥750
81584-52420 note Gasket, Rear Lamp RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥750
81584-52400 Gasket, Rear Lamp RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥750
81584-52420 Gasket, Rear Lamp RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥750
81584-52420 note Gasket, Rear Lamp RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥750
81584-52420 note Gasket, Rear Lamp RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥750
81585C — Socket & Wire, Rear Lamp, RH
81585-52410 note Socket & Wire, Rear Lamp, RH
2020-08 → 2023-09 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,150
81585-52410 note Socket & Wire, Rear Lamp, RH
2023-11 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,150
81585-52411 note Socket & Wire, Rear Lamp, RH
2023-09 → 2023-11 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,040
81585-52420 Socket & Wire, Rear Lamp, RH
2020-08 → 2022-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,150
81585-52420 note Socket & Wire, Rear Lamp, RH
2020-08 → 2022-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,150
81585-52421 Socket & Wire, Rear Lamp, RH
2022-01 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥1,040
81585-52421 note Socket & Wire, Rear Lamp, RH
2022-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,040
81585-52430 note Socket & Wire, Rear Lamp, RH
2020-08 → 2022-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,490
81585-52430 note Socket & Wire, Rear Lamp, RH
2020-08 → 2022-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,490
81585-52431 note Socket & Wire, Rear Lamp, RH
2022-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,350
81585-52431 note Socket & Wire, Rear Lamp, RH
2022-01 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥1,350
81585-52411 note Socket & Wire, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥1,040
81585-52421 Socket & Wire, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥1,040
81585-52421 note Socket & Wire, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥1,040
81585-52431 note Socket & Wire, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥1,350
81585-52431 note Socket & Wire, Rear Lamp, RH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥1,350
8158AD — Led, Rear Fog Lamp
8158A-52410 note Led, Rear Fog Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥2,270
8158A-52410 note Led, Rear Fog Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,270
8158A-52410 note Led, Rear Fog Lamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥2,270
8158A-52410 note Led, Rear Fog Lamp
2024-01 → —
MXPB1#,MXPJ1# ¥2,270
81591B — Lens And Body, Rear Lamp, LH
81590-52400 Lens And Body, Rear Lamp, LH
2020-08 → 2022-12 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥12,900
81590-52401 Lens And Body, Rear Lamp, LH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥11,700
81591-52420 Lens And Body, Rear Lamp, LH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥19,400
81591-52420 note Lens And Body, Rear Lamp, LH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥19,400
81591-52420 note Lens And Body, Rear Lamp, LH
2020-08 → 2023-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥19,400
81591-52421 note Lens And Body, Rear Lamp, LH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥17,600
81591-52421 note Lens And Body, Rear Lamp, LH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥17,600
81591-52421 Lens And Body, Rear Lamp, LH
2023-01 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥17,600
81590-52401 Lens And Body, Rear Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥11,700
81591-52421 Lens And Body, Rear Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥17,600
81591-52421 note Lens And Body, Rear Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥17,600
81591-52421 note Lens And Body, Rear Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥17,600
81594A — Gasket, Rear Lamp LH
81584-52400 Gasket, Rear Lamp LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥750
81584-52420 Gasket, Rear Lamp LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥750
81584-52420 note Gasket, Rear Lamp LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥750
81584-52420 note Gasket, Rear Lamp LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥750
81584-52400 Gasket, Rear Lamp LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥750
81584-52420 Gasket, Rear Lamp LH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥750
81584-52420 note Gasket, Rear Lamp LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥750
81584-52420 note Gasket, Rear Lamp LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥750
81595 — Socket & Wire, Rear Lamp, LH
81595-52420 Socket & Wire, Rear Lamp, LH
2020-08 → 2022-01 ended
MXPB1#,MXPJ1# HBDZ,Z ¥1,490
81595-52420 note Socket & Wire, Rear Lamp, LH
2020-08 → 2022-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,490
81595-52420 note Socket & Wire, Rear Lamp, LH
2020-08 → 2022-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,490
81595-52421 Socket & Wire, Rear Lamp, LH
2022-01 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥1,350
81595-52421 note Socket & Wire, Rear Lamp, LH
2022-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,350
81595-52421 note Socket & Wire, Rear Lamp, LH
2022-01 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥1,350
81595-52421 Socket & Wire, Rear Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥1,350
81595-52421 note Socket & Wire, Rear Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥1,350
81595-52421 note Socket & Wire, Rear Lamp, LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥1,350
81674A — Gasket, Back-up Lamp
81538-42200 Gasket, Back-up Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥670
81538-42200 note Gasket, Back-up Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥670
81538-42200 note Gasket, Back-up Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥670
81538-42200 note Gasket, Back-up Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,X ¥670
81538-42200 note Gasket, Back-up Lamp
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥670
81538-42200 Gasket, Back-up Lamp
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥670
81538-42200 note Gasket, Back-up Lamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥670
81538-42200 note Gasket, Back-up Lamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥670
81538-42200 note Gasket, Back-up Lamp
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥670
81538-42200 note Gasket, Back-up Lamp
2024-01 → —
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥670
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
