Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

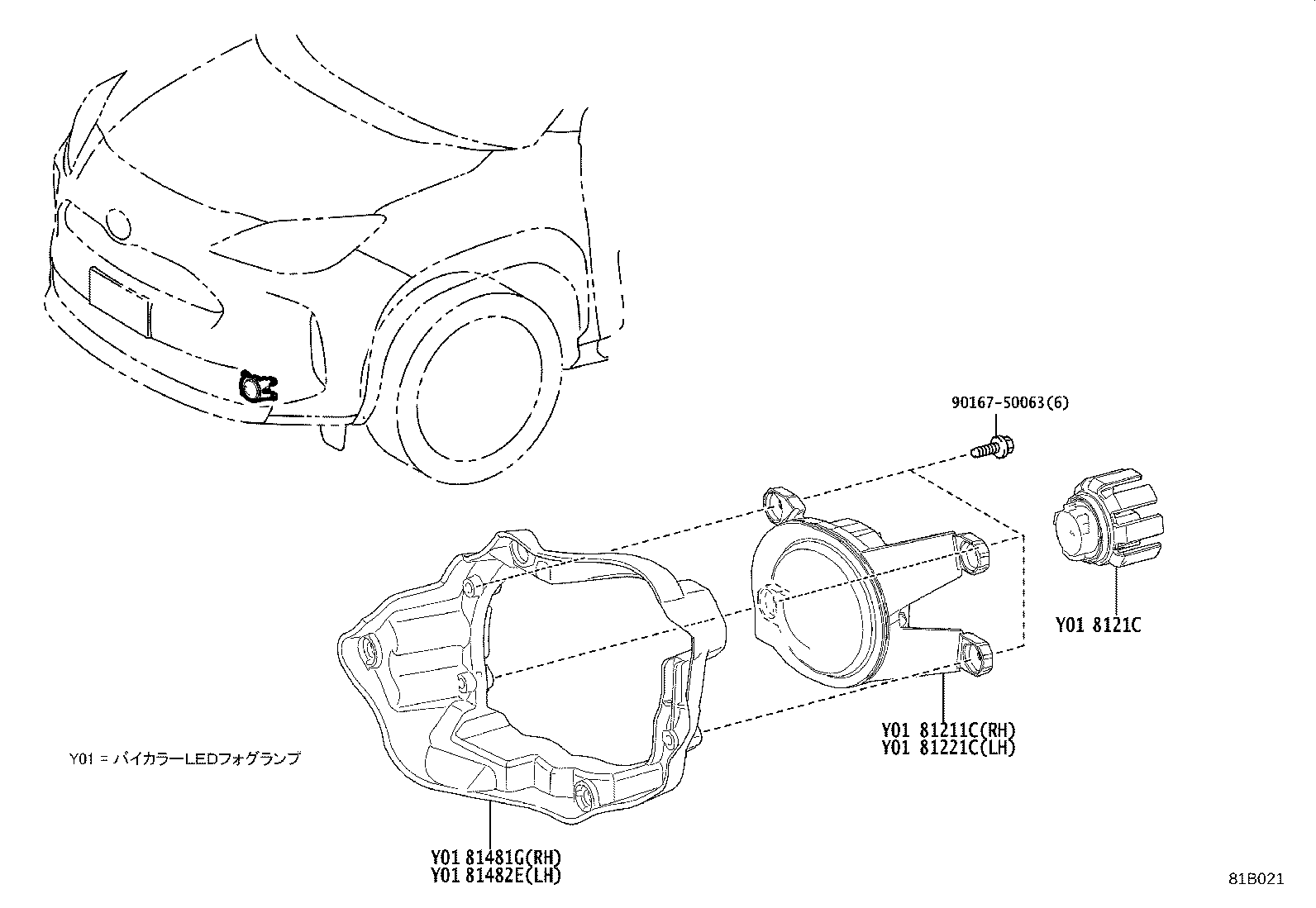

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81211C — Lamp Unit, Fog Lamp, RH | ||||
| 81211-52140 note |
Lamp Unit, Fog Lamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥5,300 | |
| 81211-52140 note |
Lamp Unit, Fog Lamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥5,300 | |
| 8121C — Led, Fog Lamp | ||||
| 8121C-52140 note |
Led, Fog Lamp
2020-08 → 2022-05
ended
|
MXPB1#,MXPJ1# | ¥3,540 | |
| 81965-52050 note |
Led, Fog Lamp
2022-05 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥3,210 | |
| 81965-52050 note |
Led, Fog Lamp
2024-01 → —
|
MXPB1#,MXPJ1# | ¥3,210 | |
| 81221C — Lamp Unit, Fog Lamp, LH | ||||
| 81221-52120 note |
Lamp Unit, Fog Lamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥5,300 | |
| 81221-52120 note |
Lamp Unit, Fog Lamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥5,300 | |
| 81481G — Bracket, Fog Lamp, RH | ||||
| 52112-52120 note |
Bracket, Fog Lamp, RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥750 | |
| 52112-52120 note |
Bracket, Fog Lamp, RH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥750 | |
| 81482E — Bracket, Fog Lamp, LH | ||||
| 52113-52120 note |
Bracket, Fog Lamp, LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥750 | |
| 52113-52120 note |
Bracket, Fog Lamp, LH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
