Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

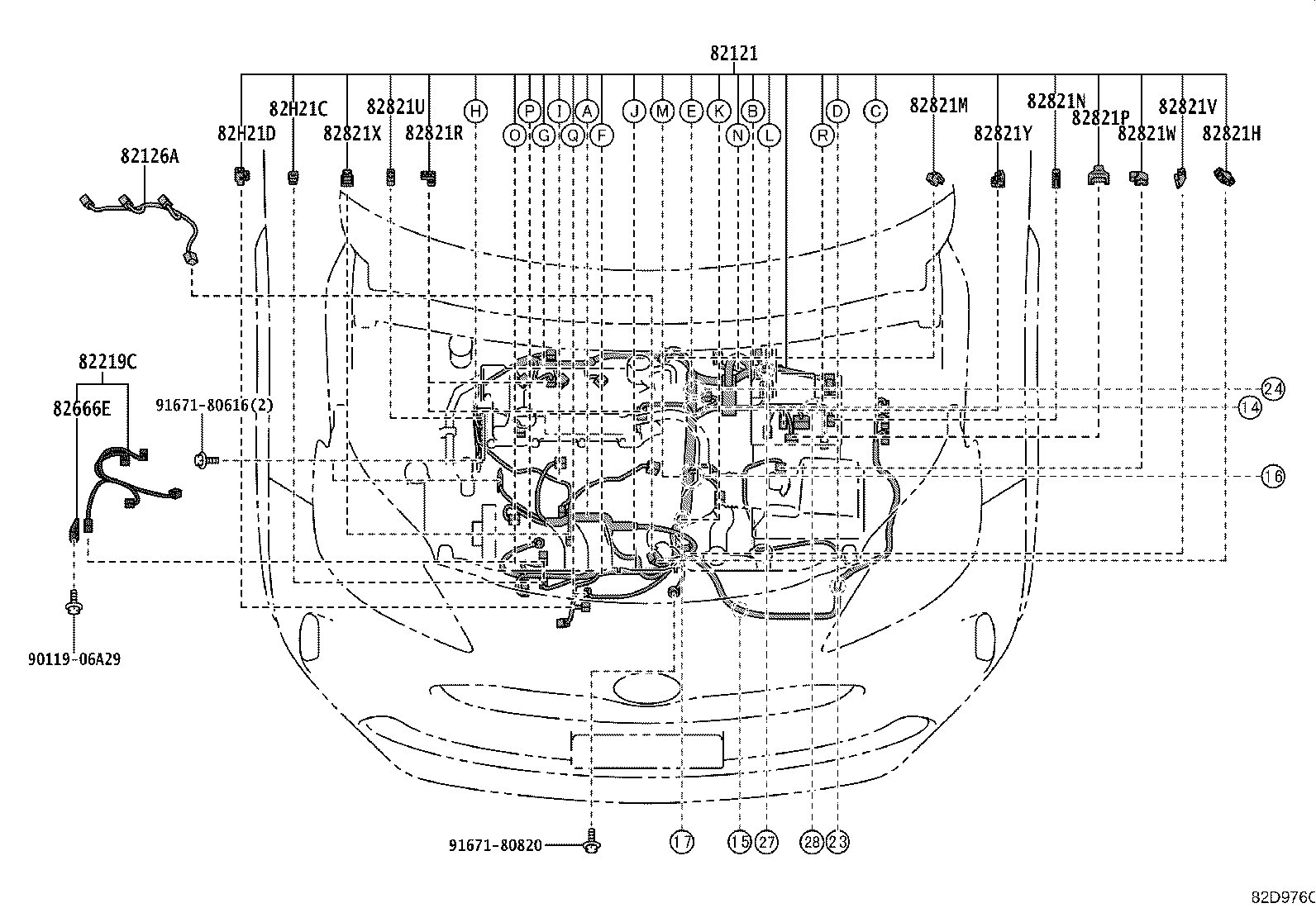

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-52U70 |
Wire, Engine
2020-08 → 2024-01
ended
|
MXPB1# | ¥61,300 | |
| 82121-K0230 |
Wire, Engine
2020-08 → 2022-08
ended
|
MXPJ1# | ¥56,800 | |
| 82121-K0231 |
Wire, Engine
2022-08 → 2024-01
ended
|
MXPJ1# | ¥56,800 | |
| 82121-52W80 |
Wire, Engine
2024-01 → —
|
MXPB1# | ¥55,700 | |
| 82121-52X00 |
Wire, Engine
2024-01 → —
|
MXPJ1# | ¥55,700 | |
| 82126A — Wire, Engine, NO.6 | ||||
| 82126-K0040 |
Wire, Engine, NO.6
2020-08 → 2024-01
ended
|
MXPB1# | ¥1,430 | |
| 82126-K0040 |
Wire, Engine, NO.6
2024-01 → —
|
MXPB1# | ¥1,430 | |
| 82219C — Wire, Sensor | ||||
| 82219-K0050 |
Wire, Sensor
2020-08 → 2024-01
ended
|
MXPB1# | ¥1,790 | |
| 82219-K0060 |
Wire, Sensor
2020-08 → 2024-01
ended
|
MXPJ1# | ¥1,070 | |
| 82219-K0050 |
Wire, Sensor
2024-01 → —
|
MXPB1# | ¥1,790 | |
| 82219-K0060 |
Wire, Sensor
2024-01 → —
|
MXPJ1# | ¥1,070 | |
| 82666E — Holder, Connector NO.6 | ||||
| 82666-K0050 |
Holder, Connector NO.6
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥400 | |
| 82666-K0050 |
Holder, Connector NO.6
2024-01 → —
|
MXPB1#,MXPJ1# | ¥400 | |
| 82821H — Cover, Connector | ||||
| 82821-12760 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1# | ¥280 | |
| 82821M — Cover, Connector | ||||
| 82821-20510 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1# | ¥230 | |
| 82821N — Cover, Connector | ||||
| 82821-30600 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥60 | |
| 82821P — Cover, Connector | ||||
| 82821-33490 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥200 | |
| 82821R — Cover, Connector | ||||
| 82821-33590 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥140 | |
| 82821U — Cover, Connector | ||||
| 82821-33610 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥100 | |
| 82821V — Cover, Connector | ||||
| 82821-33620 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥200 | |
| 82821W — Cover, Connector | ||||
| 82821-30690 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPJ1# | ¥140 | |
| 82821-33690 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1# | ¥200 | |
| 82821X — Cover, Connector | ||||
| 82821-33650 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPJ1# | ¥200 | |
| 82821-33780 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1# | ¥100 | |
| 82821Y — Cover, Connector | ||||
| 82821-33810 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPJ1# | ¥100 | |
| 82821-33810 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1# | ¥100 | |
| 82H21C — Cover, Connector | ||||
| 82821-33770 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPJ1# | ¥140 | |
| 82821-33860 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1# | ¥280 | |
| 82H21D — Cover, Connector | ||||
| 82821-33830 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPJ1# | ¥200 | |
| 82821-33A00 |
Cover, Connector
2020-08 → 2024-01
ended
|
MXPB1# | ¥200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
