Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

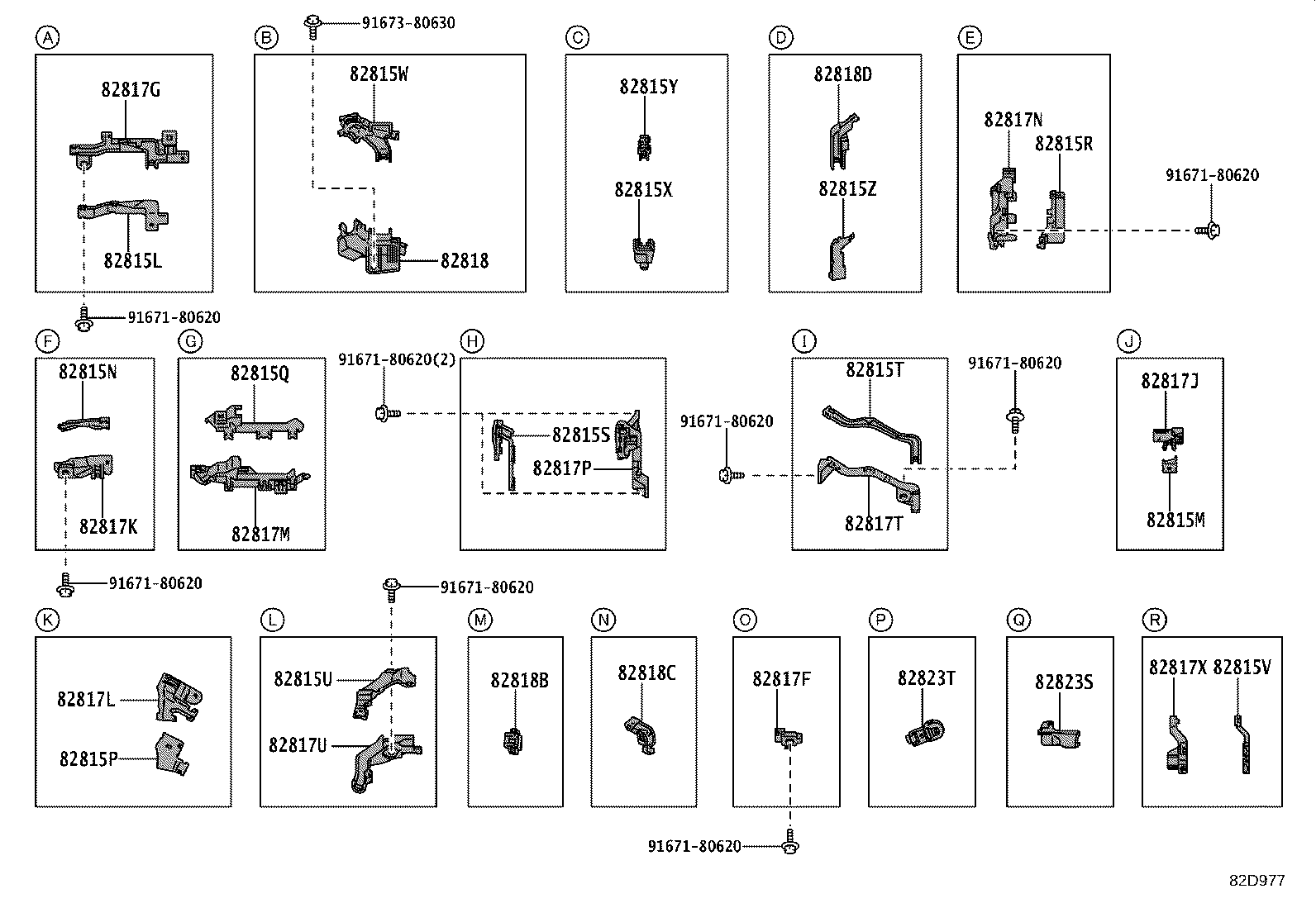

Exploded illustration 82D977 82815L — COVER, WIRING HARNESS PROTECTOR, NO.9 (4 parts) 82817G — PROTECTOR, WIRING HARNESS, NO.8 (4 parts) 82815W — COVER, WIRING HARNESS PROTECTOR, NO.2 (4 parts) 82818 — PROTECTOR, WIRING HARNESS, NO.2 (4 parts) 82815X — COVER, WIRING HARNESS PROTECTOR, NO.3 (4 parts) 82818D — PROTECTOR, WIRING HARNESS, NO.5 (2 parts) 82815Z — COVER, WIRING HARNESS PROTECTOR, NO.18 (5 parts) 82815Y — COVER, WIRING HARNESS PROTECTOR, NO.4 (4 parts) 82817F — PROTECTOR, WIRING HARNESS, NO.7 (4 parts) 82823S — CAP, STARTER TERMINAL (1 parts) 82815V — COVER, WIRING HARNESS PROTECTOR, NO.1 (4 parts) 82817X — PROTECTOR, WIRING HARNESS, NO.17 (4 parts) 82823T — CAP, ALTERNATOR TERMINAL (1 parts) 82817J — PROTECTOR, WIRING HARNESS, NO.9 (4 parts) 82817N — PROTECTOR, WIRING HARNESS, NO.13 (4 parts) 82815R — COVER, WIRING HARNESS PROTECTOR, NO.14 (4 parts) 82815P — COVER, WIRING HARNESS PROTECTOR, NO.12 (4 parts) 82815Q — COVER, WIRING HARNESS PROTECTOR, NO.13 (4 parts) 82817M — PROTECTOR, WIRING HARNESS, NO.12 (4 parts) 82817P — PROTECTOR, WIRING HARNESS, NO.14 (2 parts) 82818B — PROTECTOR, WIRING HARNESS, NO.3 (4 parts) 82818C — PROTECTOR, WIRING HARNESS, NO.4 (2 parts) 82815S — COVER, WIRING HARNESS PROTECTOR, NO.15 (2 parts) 82817T — PROTECTOR, WIRING HARNESS, NO.15 (2 parts) 82815T — COVER, WIRING HARNESS PROTECTOR, NO.16 (2 parts) 82817L — PROTECTOR, WIRING HARNESS, NO.11 (4 parts) 82815U — COVER, WIRING HARNESS PROTECTOR, NO.17 (5 parts) 82817U — PROTECTOR, WIRING HARNESS, NO.16 (4 parts) 82815M — COVER, WIRING HARNESS PROTECTOR, NO.10 (4 parts) 82817K — PROTECTOR, WIRING HARNESS, NO.10 (4 parts) 82815N — COVER, WIRING HARNESS PROTECTOR, NO.11 (4 parts) 9167380630 — not listed in this catalogue 9167180620 — not listed in this catalogue 9167180620 — not listed in this catalogue 9167180620 — not listed in this catalogue 9167180620 — not listed in this catalogue 9167180620 — not listed in this catalogue 9167180620 — not listed in this catalogue 9167180620 — not listed in this catalogue 9167180620 — not listed in this catalogue
82D977 · 31 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
108 parts on this figure
Part number Description Fitment Price
82815L — Cover, Wiring Harness Protector, NO.9
82815-K0010 Cover, Wiring Harness Protector, NO.9
2020-08 → 2024-01 ended
MXPJ1# ¥780
82815-K0120 Cover, Wiring Harness Protector, NO.9
2020-08 → 2024-01 ended
MXPB1# ¥330
82815-K0010 Cover, Wiring Harness Protector, NO.9
2024-01 → —
MXPJ1# ¥780
82815-K0120 Cover, Wiring Harness Protector, NO.9
2024-01 → —
MXPB1# ¥330
82815M — Cover, Wiring Harness Protector, NO.10
82815-K0020 Cover, Wiring Harness Protector, NO.10
2020-08 → 2024-01 ended
MXPJ1# ¥740
82815-K0130 Cover, Wiring Harness Protector, NO.10
2020-08 → 2024-01 ended
MXPB1# ¥110
82815-K0020 Cover, Wiring Harness Protector, NO.10
2024-01 → —
MXPJ1# ¥740
82815-K0130 Cover, Wiring Harness Protector, NO.10
2024-01 → —
MXPB1# ¥110
82815N — Cover, Wiring Harness Protector, NO.11
82815-K0030 Cover, Wiring Harness Protector, NO.11
2020-08 → 2024-01 ended
MXPJ1# ¥350
82815-K0140 Cover, Wiring Harness Protector, NO.11
2020-08 → 2024-01 ended
MXPB1# ¥200
82815-K0030 Cover, Wiring Harness Protector, NO.11
2024-01 → —
MXPJ1# ¥350
82815-K0140 Cover, Wiring Harness Protector, NO.11
2024-01 → —
MXPB1# ¥200
82815P — Cover, Wiring Harness Protector, NO.12
82815-K0040 Cover, Wiring Harness Protector, NO.12
2020-08 → 2024-01 ended
MXPJ1# ¥400
82815-K0150 Cover, Wiring Harness Protector, NO.12
2020-08 → 2024-01 ended
MXPB1# ¥230
82815-K0040 Cover, Wiring Harness Protector, NO.12
2024-01 → —
MXPJ1# ¥400
82815-K0150 Cover, Wiring Harness Protector, NO.12
2024-01 → —
MXPB1# ¥230
82815Q — Cover, Wiring Harness Protector, NO.13
82815-K0050 Cover, Wiring Harness Protector, NO.13
2020-08 → 2024-01 ended
MXPJ1# ¥650
82815-K0160 Cover, Wiring Harness Protector, NO.13
2020-08 → 2024-01 ended
MXPB1# ¥670
82815-K0050 Cover, Wiring Harness Protector, NO.13
2024-01 → —
MXPJ1# ¥650
82815-K0160 Cover, Wiring Harness Protector, NO.13
2024-01 → —
MXPB1# ¥670
82815R — Cover, Wiring Harness Protector, NO.14
82815-K0060 Cover, Wiring Harness Protector, NO.14
2020-08 → 2024-01 ended
MXPJ1# ¥210
82815-K0170 Cover, Wiring Harness Protector, NO.14
2020-08 → 2024-01 ended
MXPB1# ¥970
82815-K0060 Cover, Wiring Harness Protector, NO.14
2024-01 → —
MXPJ1# ¥210
82815-K0170 Cover, Wiring Harness Protector, NO.14
2024-01 → —
MXPB1# ¥970
82815S — Cover, Wiring Harness Protector, NO.15
82815-K0180 Cover, Wiring Harness Protector, NO.15
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥930
82815-K0180 Cover, Wiring Harness Protector, NO.15
2024-01 → —
MXPB1#,MXPJ1# ¥930
82815T — Cover, Wiring Harness Protector, NO.16
82815-K0190 Cover, Wiring Harness Protector, NO.16
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥540
82815-K0190 Cover, Wiring Harness Protector, NO.16
2024-01 → —
MXPB1#,MXPJ1# ¥540
82815U — Cover, Wiring Harness Protector, NO.17
82815-K0070 Cover, Wiring Harness Protector, NO.17
2020-08 → 2022-08 ended
MXPJ1# ¥350
82815-K0070 Cover, Wiring Harness Protector, NO.17
2022-08 → 2024-01 ended
MXPJ1# ¥350
82815-K0200 Cover, Wiring Harness Protector, NO.17
2020-08 → 2024-01 ended
MXPB1# ¥840
82815-K0070 Cover, Wiring Harness Protector, NO.17
2024-01 → —
MXPJ1# ¥350
82815-K0200 Cover, Wiring Harness Protector, NO.17
2024-01 → —
MXPB1# ¥840
82815V — Cover, Wiring Harness Protector, NO.1
82815-K0080 Cover, Wiring Harness Protector, NO.1
2020-08 → 2024-01 ended
MXPJ1# ¥750
82815-K0210 Cover, Wiring Harness Protector, NO.1
2020-08 → 2024-01 ended
MXPB1# ¥230
82815-K0080 Cover, Wiring Harness Protector, NO.1
2024-01 → —
MXPJ1# ¥750
82815-K0210 Cover, Wiring Harness Protector, NO.1
2024-01 → —
MXPB1# ¥230
82815W — Cover, Wiring Harness Protector, NO.2
82815-K0090 Cover, Wiring Harness Protector, NO.2
2020-08 → 2024-01 ended
MXPJ1# ¥310
82815-K0260 Cover, Wiring Harness Protector, NO.2
2020-08 → 2024-01 ended
MXPB1# ¥970
82815-K0090 Cover, Wiring Harness Protector, NO.2
2024-01 → —
MXPJ1# ¥310
82815-K0260 Cover, Wiring Harness Protector, NO.2
2024-01 → —
MXPB1# ¥970
82815X — Cover, Wiring Harness Protector, NO.3
82815-K0370 Cover, Wiring Harness Protector, NO.3
2020-08 → 2024-01 ended
MXPB1#,MXPJ10 G,GRS,X,Z ¥590
82815-K0370 Cover, Wiring Harness Protector, NO.3
2022-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥590
82815-K0370 Cover, Wiring Harness Protector, NO.3
2020-08 → 2022-08 ended
MXPJ1# ¥590
82815-K0370 Cover, Wiring Harness Protector, NO.3
2024-01 → —
MXPB1#,MXPJ1# ¥590
82815Y — Cover, Wiring Harness Protector, NO.4
82815-K0380 Cover, Wiring Harness Protector, NO.4
2020-08 → 2022-08 ended
MXPJ1# ¥200
82815-K0380 Cover, Wiring Harness Protector, NO.4
2020-08 → 2024-01 ended
MXPB1#,MXPJ10 G,GRS,X,Z ¥200
82815-K0380 Cover, Wiring Harness Protector, NO.4
2022-08 → 2024-01 ended
MXPJ1# HBDG,HBDX,HBDZ ¥200
82815-K0380 Cover, Wiring Harness Protector, NO.4
2024-01 → —
MXPB1#,MXPJ1# ¥200
82815Z — Cover, Wiring Harness Protector, NO.18
82815-K0390 Cover, Wiring Harness Protector, NO.18
2020-08 → 2024-01 ended
MXPB1# ¥300
82815-K0400 Cover, Wiring Harness Protector, NO.18
2020-08 → 2022-08 ended
MXPJ1# ¥970
82815-K0400 Cover, Wiring Harness Protector, NO.18
2022-08 → 2024-01 ended
MXPJ1# ¥970
82815-K0390 Cover, Wiring Harness Protector, NO.18
2024-01 → —
MXPB1# ¥300
82815-K0400 Cover, Wiring Harness Protector, NO.18
2024-01 → —
MXPJ1# ¥970
82817F — Protector, Wiring Harness, NO.7
82817-52L30 Protector, Wiring Harness, NO.7
2020-08 → 2024-01 ended
MXPB1# ¥260
82817-K0120 Protector, Wiring Harness, NO.7
2020-08 → 2024-01 ended
MXPJ1# ¥980
82817-52L30 Protector, Wiring Harness, NO.7
2024-01 → —
MXPB1# ¥260
82817-K0120 Protector, Wiring Harness, NO.7
2024-01 → —
MXPJ1# ¥980
82817G — Protector, Wiring Harness, NO.8
82817-K0130 Protector, Wiring Harness, NO.8
2020-08 → 2024-01 ended
MXPJ1# ¥640
82817-K0220 Protector, Wiring Harness, NO.8
2020-08 → 2024-01 ended
MXPB1# ¥520
82817-K0130 Protector, Wiring Harness, NO.8
2024-01 → —
MXPJ1# ¥640
82817-K0220 Protector, Wiring Harness, NO.8
2024-01 → —
MXPB1# ¥520
82817J — Protector, Wiring Harness, NO.9
82817-K0140 Protector, Wiring Harness, NO.9
2020-08 → 2024-01 ended
MXPJ1# ¥520
82817-K0230 Protector, Wiring Harness, NO.9
2020-08 → 2024-01 ended
MXPB1# ¥320
82817-K0140 Protector, Wiring Harness, NO.9
2024-01 → —
MXPJ1# ¥520
82817-K0230 Protector, Wiring Harness, NO.9
2024-01 → —
MXPB1# ¥320
82817K — Protector, Wiring Harness, NO.10
82817-K0150 Protector, Wiring Harness, NO.10
2020-08 → 2024-01 ended
MXPJ1# ¥580
82817-K0240 Protector, Wiring Harness, NO.10
2020-08 → 2024-01 ended
MXPB1# ¥520
82817-K0150 Protector, Wiring Harness, NO.10
2024-01 → —
MXPJ1# ¥580
82817-K0240 Protector, Wiring Harness, NO.10
2024-01 → —
MXPB1# ¥520
82817L — Protector, Wiring Harness, NO.11
82817-K0160 Protector, Wiring Harness, NO.11
2020-08 → 2024-01 ended
MXPJ1# ¥740
82817-K0250 Protector, Wiring Harness, NO.11
2020-08 → 2024-01 ended
MXPB1# ¥520
82817-K0160 Protector, Wiring Harness, NO.11
2024-01 → —
MXPJ1# ¥740
82817-K0250 Protector, Wiring Harness, NO.11
2024-01 → —
MXPB1# ¥520
82817M — Protector, Wiring Harness, NO.12
82817-K0170 Protector, Wiring Harness, NO.12
2020-08 → 2024-01 ended
MXPJ1# ¥330
82817-K0260 Protector, Wiring Harness, NO.12
2020-08 → 2024-01 ended
MXPB1# ¥740
82817-K0170 Protector, Wiring Harness, NO.12
2024-01 → —
MXPJ1# ¥330
82817-K0260 Protector, Wiring Harness, NO.12
2024-01 → —
MXPB1# ¥740
82817N — Protector, Wiring Harness, NO.13
82817-K0180 Protector, Wiring Harness, NO.13
2020-08 → 2024-01 ended
MXPJ1# ¥520
82817-K0270 Protector, Wiring Harness, NO.13
2020-08 → 2024-01 ended
MXPB1# ¥970
82817-K0180 Protector, Wiring Harness, NO.13
2024-01 → —
MXPJ1# ¥520
82817-K0270 Protector, Wiring Harness, NO.13
2024-01 → —
MXPB1# ¥970
82817P — Protector, Wiring Harness, NO.14
82817-K0280 Protector, Wiring Harness, NO.14
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥970
82817-52T30 Protector, Wiring Harness, NO.14
2024-01 → —
MXPB1#,MXPJ1# ¥890
82817T — Protector, Wiring Harness, NO.15
82817-K0290 Protector, Wiring Harness, NO.15
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥520
82817-K0290 Protector, Wiring Harness, NO.15
2024-01 → —
MXPB1#,MXPJ1# ¥520
82817U — Protector, Wiring Harness, NO.16
82817-K0190 Protector, Wiring Harness, NO.16
2020-08 → 2024-01 ended
MXPJ1# ¥890
82817-K0300 Protector, Wiring Harness, NO.16
2020-08 → 2024-01 ended
MXPB1# ¥680
82817-K0190 Protector, Wiring Harness, NO.16
2024-01 → —
MXPJ1# ¥890
82817-K0300 Protector, Wiring Harness, NO.16
2024-01 → —
MXPB1# ¥680
82817X — Protector, Wiring Harness, NO.17
82817-K0200 Protector, Wiring Harness, NO.17
2020-08 → 2024-01 ended
MXPJ1# ¥430
82817-K0310 Protector, Wiring Harness, NO.17
2020-08 → 2024-01 ended
MXPB1# ¥330
82817-K0200 Protector, Wiring Harness, NO.17
2024-01 → —
MXPJ1# ¥430
82817-K0310 Protector, Wiring Harness, NO.17
2024-01 → —
MXPB1# ¥330
82818 — Protector, Wiring Harness, NO.2
82817-K0360 Protector, Wiring Harness, NO.2
2020-08 → 2024-01 ended
MXPB1# ¥1,010
82817-K0860 Protector, Wiring Harness, NO.2
2020-08 → 2024-01 ended
MXPJ1# ¥200
82817-K0360 Protector, Wiring Harness, NO.2
2024-01 → —
MXPB1# ¥1,010
82817-K0860 Protector, Wiring Harness, NO.2
2024-01 → —
MXPJ1# ¥200
82818B — Protector, Wiring Harness, NO.3
82817-K0380 Protector, Wiring Harness, NO.3
2020-08 → 2024-01 ended
MXPB1# ¥230
82817-K0A80 Protector, Wiring Harness, NO.3
2020-08 → 2024-01 ended
MXPJ1# ¥760
82817-K0380 Protector, Wiring Harness, NO.3
2024-01 → —
MXPB1# ¥230
82817-K0A80 Protector, Wiring Harness, NO.3
2024-01 → —
MXPJ1# ¥760
82818C — Protector, Wiring Harness, NO.4
82817-K0390 Protector, Wiring Harness, NO.4
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥330
82817-K0390 Protector, Wiring Harness, NO.4
2024-01 → —
MXPB1#,MXPJ1# ¥330
82818D — Protector, Wiring Harness, NO.5
82817-K0540 Protector, Wiring Harness, NO.5
2020-08 → 2024-01 ended
MXPB1# ¥520
82817-K0540 Protector, Wiring Harness, NO.5
2024-01 → —
MXPB1# ¥520
82823S — Cap, Starter Terminal
82823-K0020 Cap, Starter Terminal
2020-08 → 2024-01 ended
MXPB1# ¥940
82823T — Cap, Alternator Terminal
82823-K0030 Cap, Alternator Terminal
2020-08 → 2024-01 ended
MXPB1# ¥570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
