Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

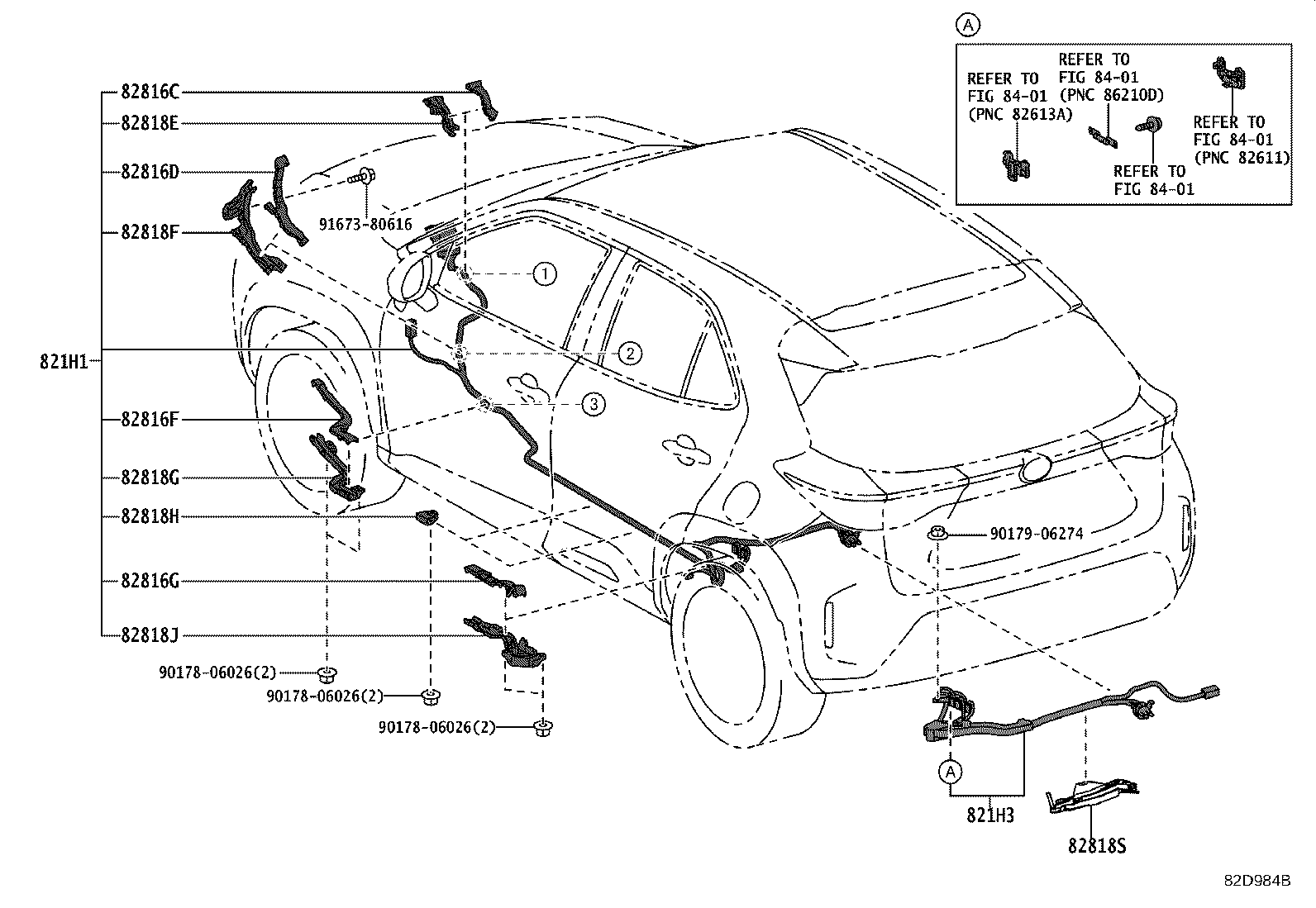

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-K0030 |
Wire, Floor Under
2020-08 → 2024-01
ended
|
MXPJ10 | ¥38,400 | |
| 821H1-K0040 |
Wire, Floor Under
2020-08 → 2024-01
ended
|
MXPJ15 | ¥38,400 | |
| 821H1-K0030 |
Wire, Floor Under
2024-01 → —
|
MXPJ10 | ¥38,400 | |
| 821H1-K0040 |
Wire, Floor Under
2024-01 → —
|
MXPJ15 | ¥38,400 | |
| 821H3 — Wire, HV Battery Pack | ||||
| 821H3-K0030 note |
Wire, HV Battery Pack
2020-08 → 2024-01
ended
|
MXPJ15 HBDX | ¥15,100 | |
| 821H3-K0030 note |
Wire, HV Battery Pack
2020-08 → 2024-01
ended
|
MXPJ15 HBDG,HBDZ | ¥15,100 | |
| 821H3-K0050 |
Wire, HV Battery Pack
2020-08 → 2024-01
ended
|
MXPJ15 | ¥10,100 | |
| 821H4-K0020 note |
Wire, HV Battery Pack
2020-08 → 2024-01
ended
|
MXPJ10 HBDX | ¥7,700 | |
| 821H4-K0020 note |
Wire, HV Battery Pack
2020-08 → 2024-01
ended
|
MXPJ10 GRS,HBDG,HBDZ | ¥7,700 | |
| 821H3-K0030 note |
Wire, HV Battery Pack
2024-01 → —
|
MXPJ15 | ¥15,100 | |
| 821H3-K0030 note |
Wire, HV Battery Pack
2024-01 → —
|
MXPJ15 U | ¥15,100 | |
| 821H3-K0050 |
Wire, HV Battery Pack
2024-01 → —
|
MXPJ15 | ¥10,100 | |
| 821H4-K0020 note |
Wire, HV Battery Pack
2024-01 → —
|
MXPJ10 | ¥7,700 | |
| 821H4-K0020 note |
Wire, HV Battery Pack
2024-01 → —
|
MXPJ10 U | ¥7,700 | |
| 82816C — Cover, Wiring Harness Protector, NO.2 | ||||
| 82815-K0320 |
Cover, Wiring Harness Protector, NO.2
2020-08 → 2024-01
ended
|
MXPJ1# | ¥400 | |
| 82815-K0320 |
Cover, Wiring Harness Protector, NO.2
2024-01 → —
|
MXPJ1# | ¥400 | |
| 82816D — Cover, Wiring Harness Protector, NO.3 | ||||
| 82815-K0330 |
Cover, Wiring Harness Protector, NO.3
2020-08 → 2024-01
ended
|
MXPJ1# | ¥650 | |
| 82815-K0330 |
Cover, Wiring Harness Protector, NO.3
2024-01 → —
|
MXPJ1# | ¥650 | |
| 82816F — Cover, Wiring Harness Protector, NO.4 | ||||
| 82815-K0340 |
Cover, Wiring Harness Protector, NO.4
2020-08 → 2024-01
ended
|
MXPJ1# | ¥650 | |
| 82815-K0340 |
Cover, Wiring Harness Protector, NO.4
2024-01 → —
|
MXPJ1# | ¥650 | |
| 82816G — Cover, Wiring Harness Protector, NO.5 | ||||
| 82815-K0350 |
Cover, Wiring Harness Protector, NO.5
2020-08 → 2024-01
ended
|
MXPJ1# | ¥650 | |
| 82815-K0350 |
Cover, Wiring Harness Protector, NO.5
2024-01 → —
|
MXPJ1# | ¥650 | |
| 82818E — Protector, Wiring Harness, NO.6 | ||||
| 82817-K0480 |
Protector, Wiring Harness, NO.6
2020-08 → 2024-01
ended
|
MXPJ1# | ¥610 | |
| 82817-K0480 |
Protector, Wiring Harness, NO.6
2024-01 → —
|
MXPJ1# | ¥610 | |
| 82818F — Protector, Wiring Harness, NO.7 | ||||
| 82817-K0490 |
Protector, Wiring Harness, NO.7
2020-08 → 2024-01
ended
|
MXPJ1# | ¥1,460 | |
| 82817-K0490 |
Protector, Wiring Harness, NO.7
2024-01 → —
|
MXPJ1# | ¥1,460 | |
| 82818G — Protector, Wiring Harness, NO.8 | ||||
| 82817-K0500 |
Protector, Wiring Harness, NO.8
2020-08 → 2024-01
ended
|
MXPJ1# | ¥1,270 | |
| 82817-K0500 |
Protector, Wiring Harness, NO.8
2024-01 → —
|
MXPJ1# | ¥1,270 | |
| 82818H — Protector, Wiring Harness, NO.9 | ||||
| 82817-K0510 |
Protector, Wiring Harness, NO.9
2020-08 → 2024-01
ended
|
MXPJ1# | ¥440 | |
| 82817-K0510 |
Protector, Wiring Harness, NO.9
2024-01 → —
|
MXPJ1# | ¥440 | |
| 82818J — Protector, Wiring Harness, NO.10 | ||||
| 82817-K0520 |
Protector, Wiring Harness, NO.10
2020-08 → 2024-01
ended
|
MXPJ1# | ¥1,590 | |
| 82817-K0520 |
Protector, Wiring Harness, NO.10
2024-01 → —
|
MXPJ1# | ¥1,590 | |
| 82818S — Protector, Wiring Harness, NO.15 | ||||
| 82817-K0A40 |
Protector, Wiring Harness, NO.15
2024-01 → —
|
MXPJ10 U | ¥970 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
