Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

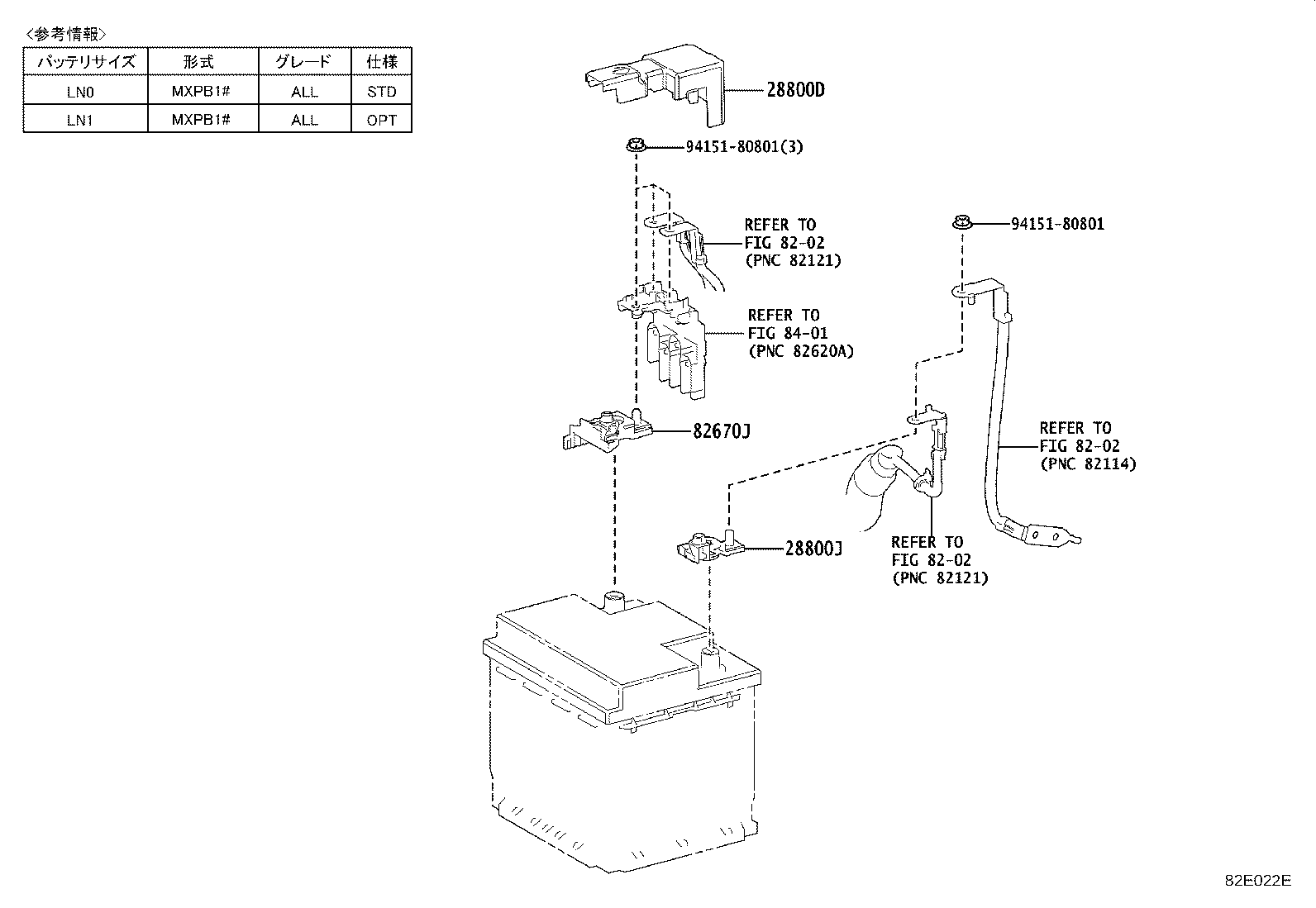

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28800D — Cover, Connector(FOR BATTERY TERMINAL) | ||||
| 82621-52170 |
Cover, Connector(FOR BATTERY TERMINAL)
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥650 | |
| 82621-52170 |
Cover, Connector(FOR BATTERY TERMINAL)
2024-01 → —
|
M15AFKS MXPB1# | ¥650 | |
| 28800J — Terminal, Battery Negative | ||||
| 90982-06061 |
Terminal, Battery Negative
2020-08 → 2024-01
ended
|
M15AFKS MXPB1# | ¥850 | |
| 90982-06061 |
Terminal, Battery Negative
2024-01 → —
|
M15AFKS MXPB1# | ¥850 | |
| 82670J — Block Assy, Junction | ||||
| 82670-33140 |
Block Assy, Junction
2020-08 → 2024-01
ended
|
MXPJ1# | ¥1,670 | |
| 82670-52050 |
Block Assy, Junction
2020-08 → 2024-01
ended
|
MXPB1# | ¥1,760 | |
| 82670-K0010 note |
Block Assy, Junction
2020-08 → 2024-01
ended
|
MXPB1# | ¥1,620 | |
| 82670-33140 |
Block Assy, Junction
2024-01 → —
|
MXPJ1# | ¥1,670 | |
| 82670-K0010 |
Block Assy, Junction
2024-01 → —
|
MXPB1# | ¥1,620 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
