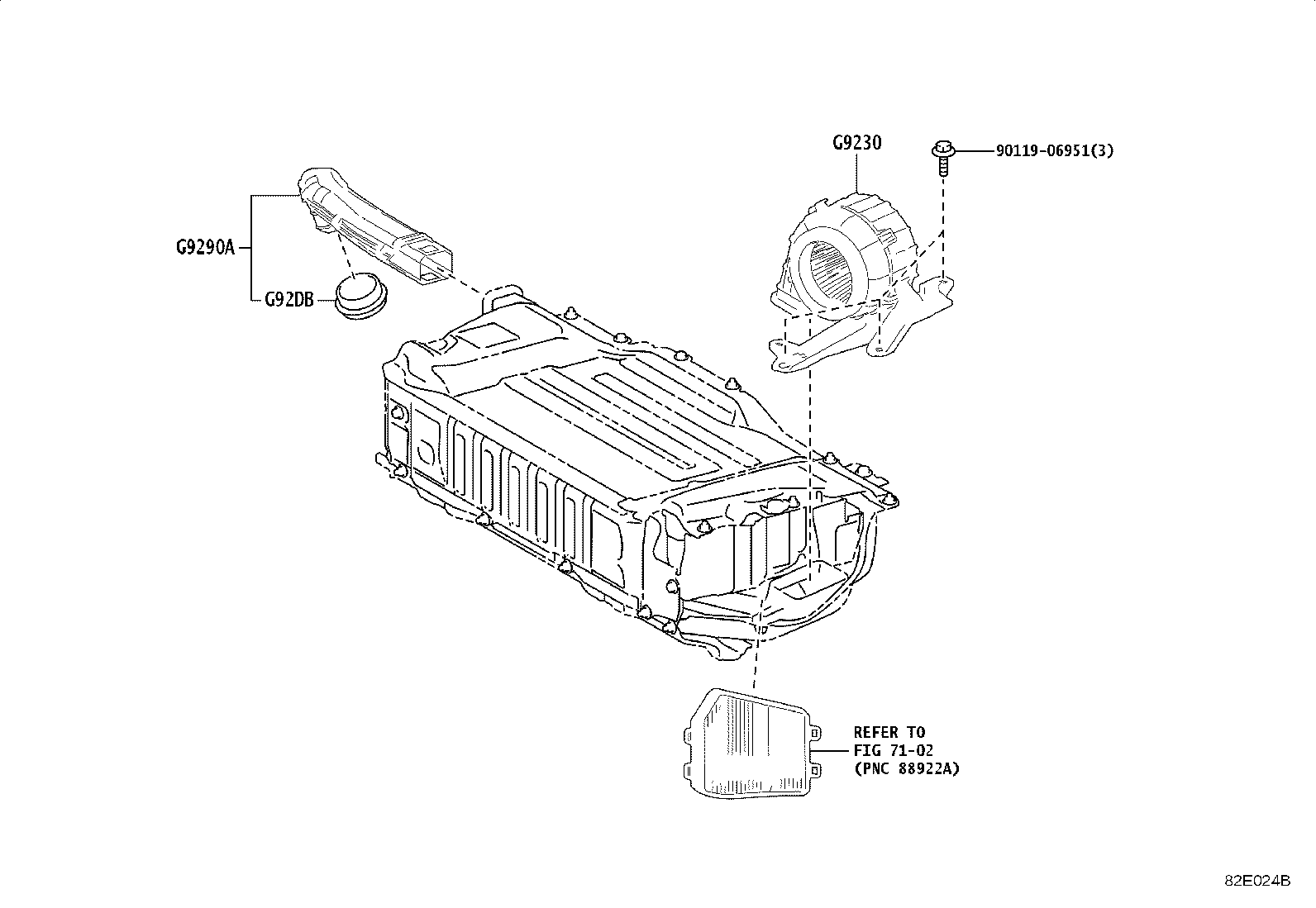

Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| G9230 — Blower Assy, Battery Cooling | ||||
| G9230-K0021 |
Blower Assy, Battery Cooling
2020-08 → 2024-01
ended
|
MXPJ1# | ¥16,200 | |
| G9230-K0021 |
Blower Assy, Battery Cooling
2024-01 → —
|
MXPJ1# | ¥16,200 | |
| G9290A — Hose Assy, Hybrid Battery | ||||
| G9290-K0010 |
Hose Assy, Hybrid Battery
2020-08 → 2024-01
ended
|
MXPJ1# | ¥1,150 | |
| G9290-K0010 |
Hose Assy, Hybrid Battery
2024-01 → —
|
MXPJ1# | ¥1,150 | |
| G92DB — Seal, Hybrid Battery, NO.1 | ||||
| G92DB-47030 |
Seal, Hybrid Battery, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# | ¥510 | |
| G92DB-47030 |
Seal, Hybrid Battery, NO.1
2024-01 → —
|
MXPJ1# | ¥510 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
