Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

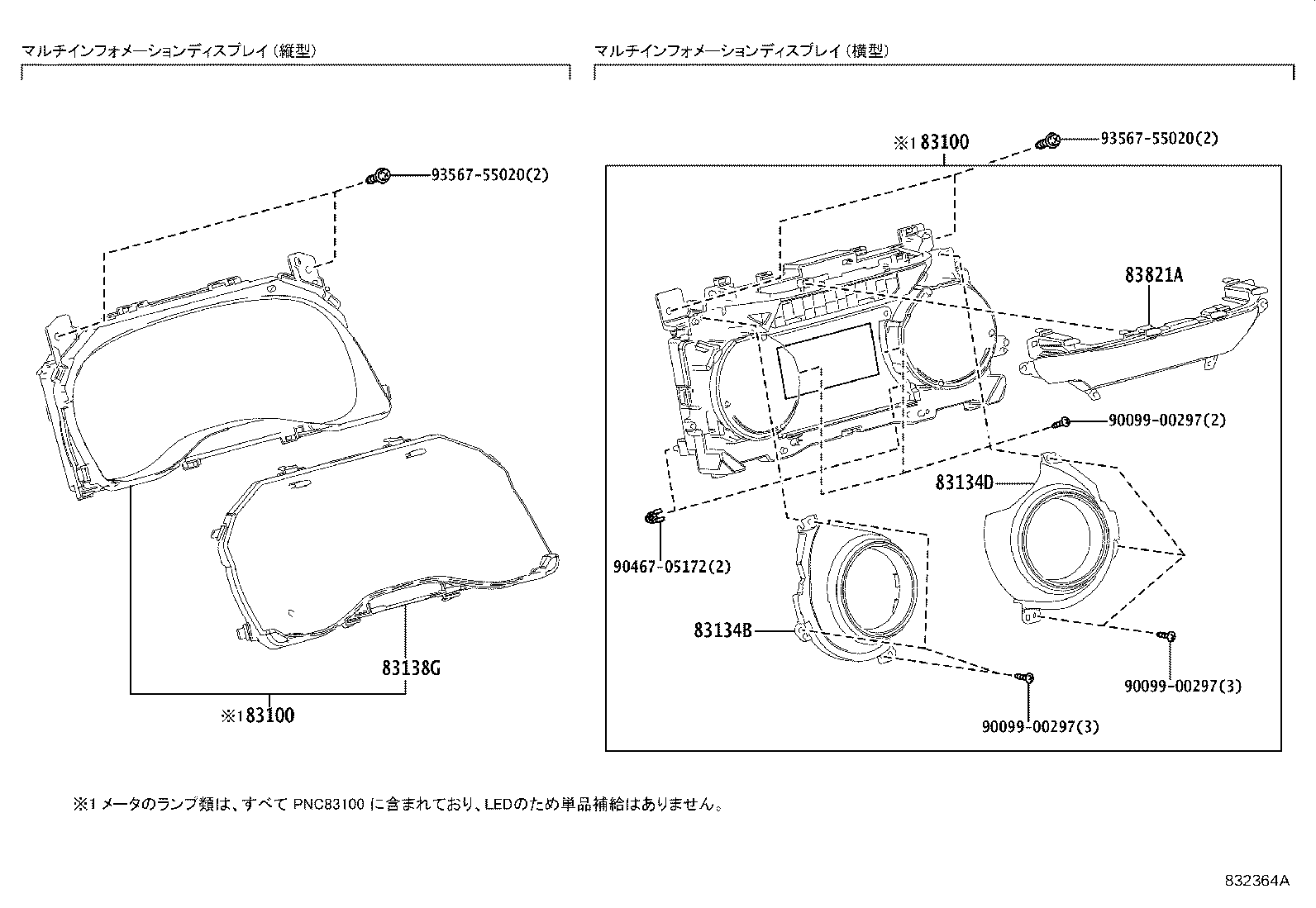

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-5CZ30 note |
Meter Assy, Combination
2020-08 → 2024-01
ended
|
MXPB10 G,GRS,X | ¥61,400 | |
| 83800-5CZ40 note |
Meter Assy, Combination
2020-08 → 2024-01
ended
|
MXPB15 G,X | ¥61,400 | |
| 83800-5D110 note |
Meter Assy, Combination
2020-08 → 2024-01
ended
|
MXPJ1# GRS,HBDG,HBDX | ¥61,400 | |
| 83800-5D130 note |
Meter Assy, Combination
2020-08 → 2024-01
ended
|
MXPB10 Z | ¥61,400 | |
| 83800-5D140 note |
Meter Assy, Combination
2020-08 → 2024-01
ended
|
MXPB15 Z | ¥61,400 | |
| 83800-5D150 note |
Meter Assy, Combination
2020-08 → 2024-01
ended
|
MXPJ1# HBDZ | ¥61,400 | |
| 83800-5D761 note |
Meter Assy, Combination
2024-01 → 2024-06
ended
|
MXPB10 | ¥46,000 | |
| 83800-5D762 note |
Meter Assy, Combination
2024-07 → —
|
MXPB10 | ¥41,800 | |
| 83800-5D771 note |
Meter Assy, Combination
2024-01 → 2024-06
ended
|
MXPB15 | ¥46,000 | |
| 83800-5D772 note |
Meter Assy, Combination
2024-07 → —
|
MXPB15 | ¥41,800 | |
| 83800-5D780 note |
Meter Assy, Combination
2024-01 → 2024-06
ended
|
MXPJ1# | ¥46,000 | |
| 83800-5D781 note |
Meter Assy, Combination
2024-07 → —
|
MXPJ1# | ¥41,800 | |
| 83134B — Cover, Combination Meter, NO.2 | ||||
| 83822-K0030 |
Cover, Combination Meter, NO.2
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X | — | |
| 83134D — Cover, Combination Meter, NO.3 | ||||
| 83823-K0030 |
Cover, Combination Meter, NO.3
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-5D130 |
Glass, Combination Meter
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | — | |
| 83852-5D840 |
Glass, Combination Meter
2024-01 → —
|
MXPB1#,MXPJ1# | ¥2,220 | |
| 83821A — Cover, Combination Meter, NO.1 | ||||
| 83821-K0030 |
Cover, Combination Meter, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
