Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

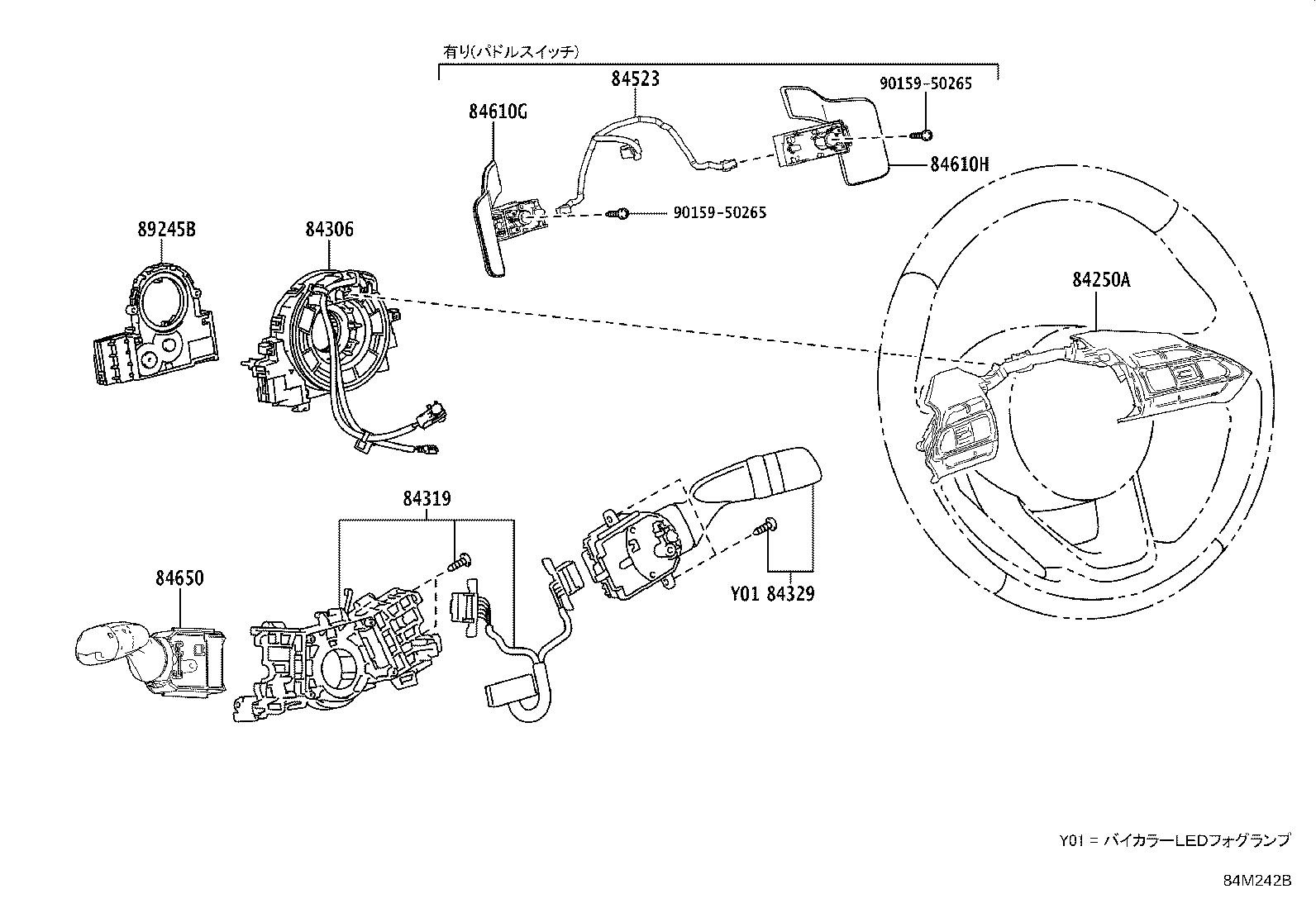

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-K0020-C0 note |
Switch Assy, Steering Pad
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥13,800 | |
| 84250-K0030-C3 note |
Switch Assy, Steering Pad
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥14,900 | |
| 84250-K0030-C3 note |
Switch Assy, Steering Pad
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# GRS,HBDX,X | ¥14,900 | |
| 84250-K0030-C3 note |
Switch Assy, Steering Pad
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥14,900 | |
| 84250-52590-C0 note |
Switch Assy, Steering Pad
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥15,500 | |
| 84250-52590-C0 note |
Switch Assy, Steering Pad
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X | ¥15,500 | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84308-12020 |
Cable Sub-assy, Spiral
2020-08 → 2022-07
ended
|
MXPB1#,MXPJ1# | ¥13,100 | |
| 84308-33110 note |
Cable Sub-assy, Spiral
2020-08 → 2022-07
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥11,900 | |
| 84308-33110 note |
Cable Sub-assy, Spiral
2020-08 → 2022-07
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥11,900 | |
| 84308-52010 |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X | ¥11,900 | |
| 84308-78040 |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥11,900 | |
| 84308-78040 note |
Cable Sub-assy, Spiral
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG | ¥11,900 | |
| 84308-52010 |
Cable Sub-assy, Spiral
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X | ¥11,900 | |
| 84308-78040 |
Cable Sub-assy, Spiral
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥11,900 | |
| 84308-78040 note |
Cable Sub-assy, Spiral
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG | ¥11,900 | |
| 84308-78040 note |
Cable Sub-assy, Spiral
2024-01 → —
|
MXPJ1# U | ¥11,900 | |
| 84319 — Housing, Steering Wheel Switch | ||||
| 84319-33030 |
Housing, Steering Wheel Switch
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥1,960 | |
| 84319-33030 |
Housing, Steering Wheel Switch
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,960 | |
| 84319-33030 note |
Housing, Steering Wheel Switch
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,960 | |
| 84319-33030 note |
Housing, Steering Wheel Switch
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,960 | |
| 84319-33030 note |
Housing, Steering Wheel Switch
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,960 | |
| 84329 — Switch, Turn Signal | ||||
| 84329-52010 |
Switch, Turn Signal
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥5,700 | |
| 84329-K0010 note |
Switch, Turn Signal
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥6,200 | |
| 84329-K0020 note |
Switch, Turn Signal
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥6,200 | |
| 84329-K0030 note |
Switch, Turn Signal
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥6,900 | |
| 84329-52010 |
Switch, Turn Signal
2024-01 → —
|
MXPB1#,MXPJ1# | ¥5,700 | |
| 84329-K0010 note |
Switch, Turn Signal
2024-01 → —
|
MXPB1#,MXPJ1# | ¥6,200 | |
| 84329-K0020 note |
Switch, Turn Signal
2024-01 → —
|
MXPB1#,MXPJ1# | ¥6,200 | |
| 84329-K0030 note |
Switch, Turn Signal
2024-01 → —
|
MXPB1#,MXPJ1# | ¥6,900 | |
| 84523 — Wire, Switch NO.1 | ||||
| 84523-11010 |
Wire, Switch NO.1
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥410 | |
| 84523-11010 |
Wire, Switch NO.1
2024-01 → —
|
MXPB10 GRS | ¥410 | |
| 84610G — Switch Assy, Transmission Shift, NO.1 | ||||
| 84610-33011 |
Switch Assy, Transmission Shift, NO.1
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥3,070 | |
| 84610-33011 |
Switch Assy, Transmission Shift, NO.1
2024-01 → —
|
MXPB10 GRS | ¥3,070 | |
| 84610H — Switch Assy, Transmission Shift, NO.2 | ||||
| 84610-33021 |
Switch Assy, Transmission Shift, NO.2
2022-08 → 2024-01
ended
|
MXPB10 GRS | ¥3,070 | |
| 84610-33021 |
Switch Assy, Transmission Shift, NO.2
2024-01 → —
|
MXPB10 GRS | ¥3,070 | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-12B40 |
Switch Assy, Windshield Wiper
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥7,300 | |
| 84652-12B50 |
Switch Assy, Windshield Wiper
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,X | ¥5,900 | |
| 84652-12B40 |
Switch Assy, Windshield Wiper
2024-01 → —
|
MXPB1#,MXPJ1# HBDZ,Z | ¥7,300 | |
| 84652-12B50 |
Switch Assy, Windshield Wiper
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,U,X | ¥5,900 | |
| 89245B — Sensor, Steering | ||||
| 8924B-60010 note |
Sensor, Steering
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥16,100 | |
| 8924B-K0010 note |
Sensor, Steering
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# | ¥16,100 | |
| 8924B-V1010 |
Sensor, Steering
2024-01 → —
|
MXPB1#,MXPJ1# | ¥14,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
