Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

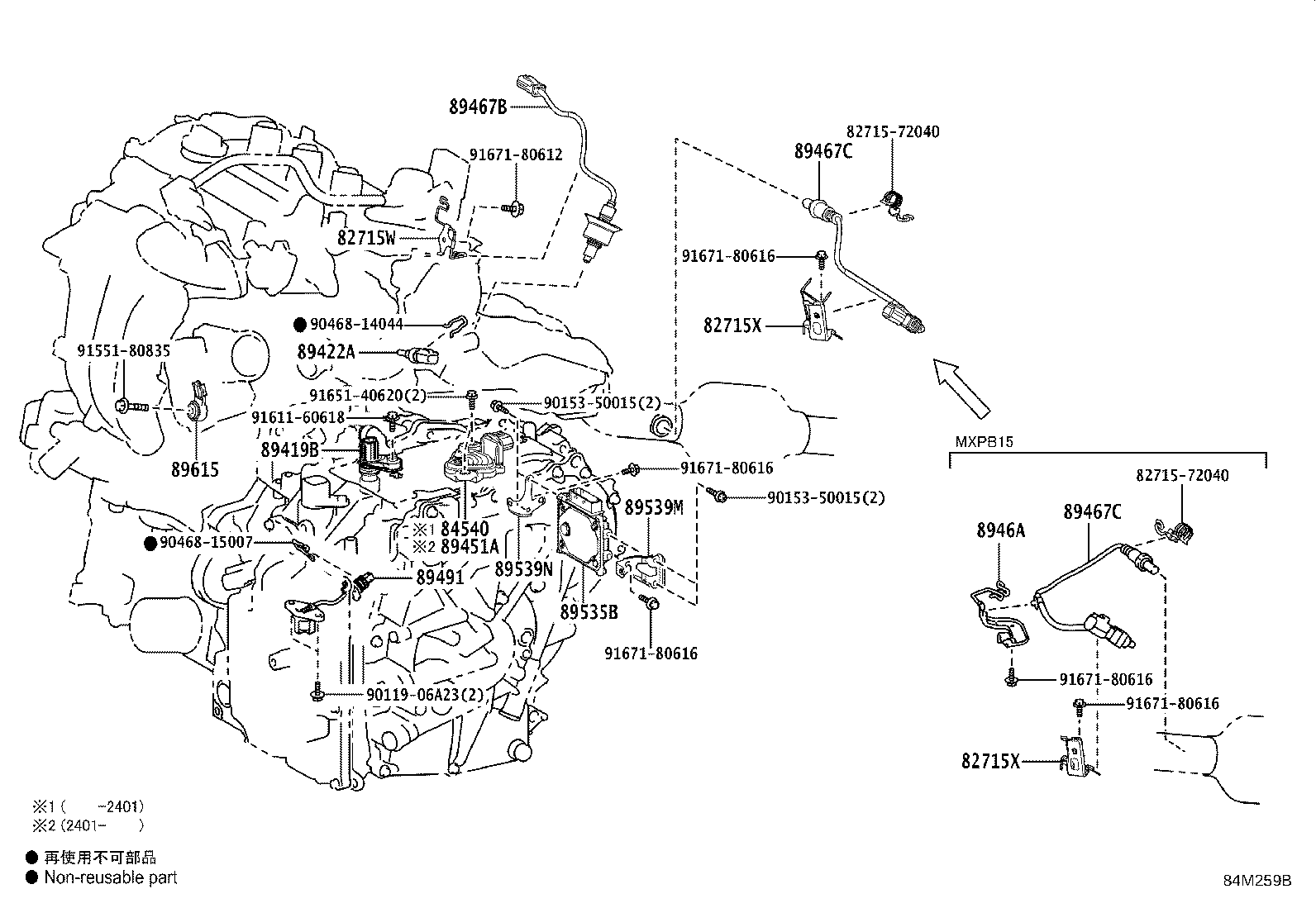

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82715W — Bracket, Wiring Harness Clamp | ||||
| 82715-K0030 |
Bracket, Wiring Harness Clamp
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥200 | |
| 82715-K0030 |
Bracket, Wiring Harness Clamp
2024-01 → —
|
MXPB1#,MXPJ1# | ¥200 | |
| 82715X — Bracket, Wiring Harness Clamp, NO.2 | ||||
| 82715-K0080 |
Bracket, Wiring Harness Clamp, NO.2
2020-08 → 2024-01
ended
|
MXPB15 | ¥670 | |
| 8946A-52030 |
Bracket, Wiring Harness Clamp, NO.2
2020-08 → 2024-01
ended
|
MXPB10,MXPJ1# | ¥770 | |
| 82715-K0080 |
Bracket, Wiring Harness Clamp, NO.2
2024-01 → —
|
MXPB15 | ¥670 | |
| 8946A-52030 |
Bracket, Wiring Harness Clamp, NO.2
2024-01 → —
|
MXPB10,MXPJ1# | ¥770 | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-K0010 |
Switch Assy, Neutral Start
2020-08 → 2024-01
ended
|
MXPB1# | ¥7,600 | |
| 89419B — Sensor, Shift Stroke | ||||
| 89419-K2010 |
Sensor, Shift Stroke
2020-08 → 2024-01
ended
|
MXPB1# | ¥4,100 | |
| 89419-K2010 |
Sensor, Shift Stroke
2024-01 → —
|
MXPB1# | ¥4,100 | |
| 89422A — Sensor, Water Temperature | ||||
| 89422-33040 |
Sensor, Water Temperature
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥2,410 | |
| 89422-33040 |
Sensor, Water Temperature
2024-01 → —
|
MXPB1#,MXPJ1# | ¥2,410 | |
| 89451A — Sensor, Shift Lever Position | ||||
| 89451-10010 |
Sensor, Shift Lever Position
2020-08 → 2024-01
ended
|
MXPJ1# | ¥5,900 | |
| 89451-10010 |
Sensor, Shift Lever Position
2024-01 → —
|
MXPJ1# | ¥5,900 | |
| 89451-42010 |
Sensor, Shift Lever Position
2024-01 → —
|
MXPB1# | ¥5,900 | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-K0020 |
Sensor, Air Fuel Ratio
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥9,900 | |
| 89467-52390 |
Sensor, Air Fuel Ratio
2024-01 → —
|
MXPB1# | ¥9,900 | |
| 89467-K0020 |
Sensor, Air Fuel Ratio
2024-01 → —
|
MXPJ1# | ¥9,900 | |
| 89467C — Sensor, Air Fuel Ratio, NO.2 | ||||
| 89467-K0030 |
Sensor, Air Fuel Ratio, NO.2
2020-08 → 2024-01
ended
|
MXPB10,MXPJ1# | ¥10,900 | |
| 89467-K0040 |
Sensor, Air Fuel Ratio, NO.2
2020-08 → 2024-01
ended
|
MXPB15 | ¥10,900 | |
| 89467-52370 |
Sensor, Air Fuel Ratio, NO.2
2024-01 → —
|
MXPB10,MXPJ1# | ¥9,900 | |
| 89467-52380 |
Sensor, Air Fuel Ratio, NO.2
2024-01 → —
|
MXPB15 | ¥9,900 | |
| 8946A — Bracket, Exhaust Sensor Clamp | ||||
| 8946A-52090 |
Bracket, Exhaust Sensor Clamp
2020-08 → 2024-01
ended
|
MXPB15 | ¥630 | |
| 8946A-52090 |
Bracket, Exhaust Sensor Clamp
2024-01 → —
|
MXPB15 | ¥630 | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-50081 |
Sensor, Engine Oil Level
2020-08 → 2022-04
ended
|
MXPB1#,MXPJ1# | ¥3,670 | |
| 89491-50082 |
Sensor, Engine Oil Level
2022-05 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥3,330 | |
| 89491-50082 |
Sensor, Engine Oil Level
2024-01 → —
|
MXPB1#,MXPJ1# | ¥3,330 | |
| 89535B — Computer, Transmission Control | ||||
| 89535-52100 note |
Computer, Transmission Control
2020-08 → 2024-01
ended
|
MXPB10 | ¥46,000 | |
| 89535-52110 note |
Computer, Transmission Control
2020-08 → 2024-01
ended
|
MXPB15 | ¥46,000 | |
| 89539M — Bracket, Transmission Control Computer, NO.1 | ||||
| 89539-K0010 |
Bracket, Transmission Control Computer, NO.1
2020-08 → 2024-01
ended
|
MXPB1# | ¥280 | |
| 89539N — Bracket, Transmission Control Computer, NO.2 | ||||
| 89539-K0020 |
Bracket, Transmission Control Computer, NO.2
2020-08 → 2024-01
ended
|
MXPB1# | ¥300 | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥2,370 | |
| 89615-20090 |
Sensor, Knock Control
2024-01 → —
|
MXPB1#,MXPJ1# | ¥2,370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
