Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

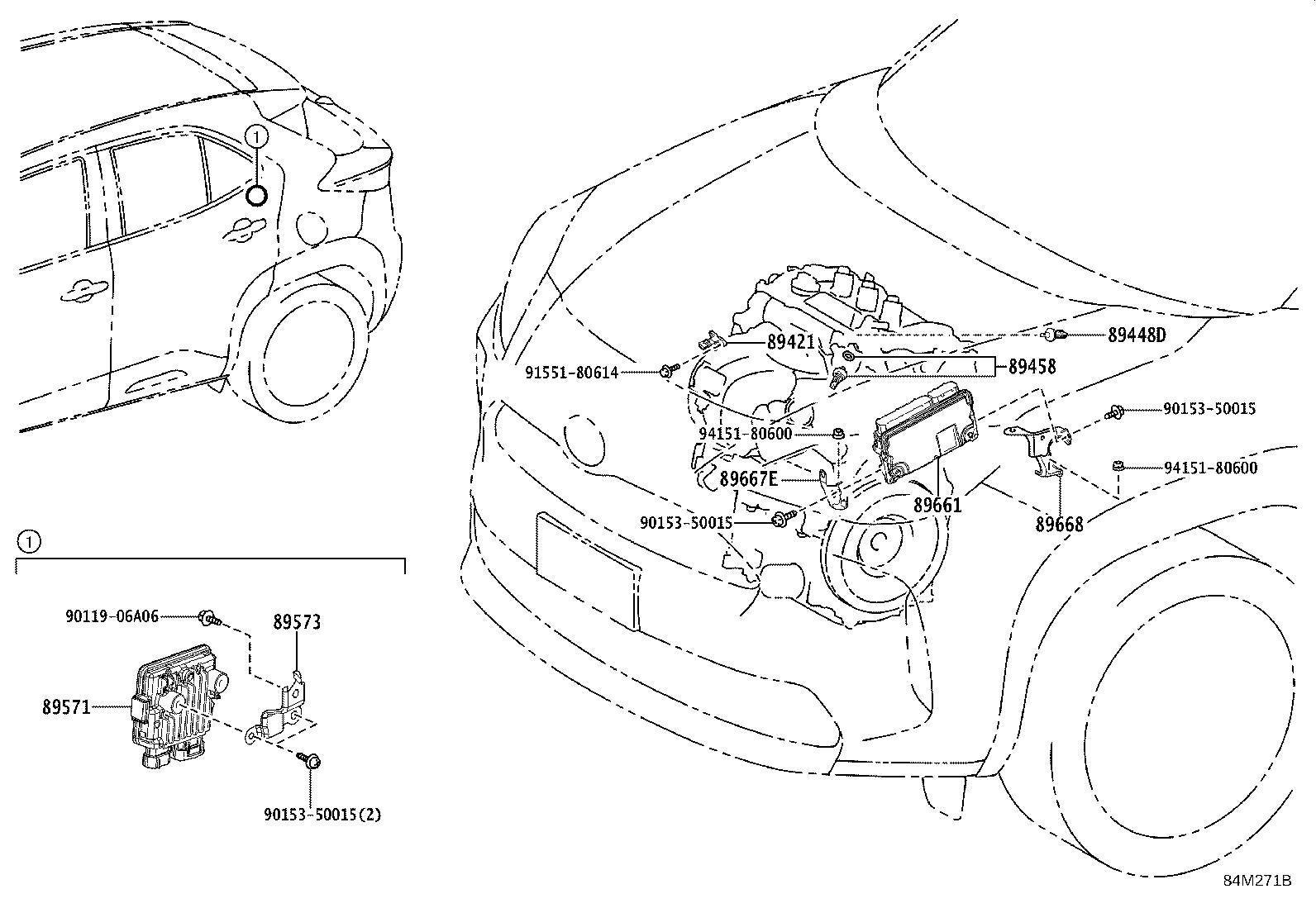

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89421 — Sensor Assy, Vacuum (FOR E.F.I.) | ||||
| 89421-33010 |
Sensor Assy, Vacuum (FOR E.F.I.)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥5,900 | |
| 89421-33010 |
Sensor Assy, Vacuum (FOR E.F.I.)
2024-01 → —
|
MXPB1#,MXPJ1# | ¥5,900 | |
| 89448D — Sensor, Oil Pressure & Temperature | ||||
| 89448-33010 |
Sensor, Oil Pressure & Temperature
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥5,700 | |
| 89448-33010 |
Sensor, Oil Pressure & Temperature
2024-01 → —
|
MXPB1#,MXPJ1# | ¥5,700 | |
| 89458 — Sensor, Fuel Pressure | ||||
| 89458-33030 |
Sensor, Fuel Pressure
2020-08 → 2024-01
ended
|
MXPB1# | ¥4,320 | |
| 89458-33041 |
Sensor, Fuel Pressure
2020-08 → 2022-06
ended
|
MXPJ1# | ¥4,760 | |
| 89458-33042 |
Sensor, Fuel Pressure
2022-07 → 2024-01
ended
|
MXPJ1# | ¥4,320 | |
| 89458-33030 |
Sensor, Fuel Pressure
2024-01 → —
|
MXPB1# | ¥4,320 | |
| 89571 — Computer, Fuel Pump Control | ||||
| 89571-10010 |
Computer, Fuel Pump Control
2021-05 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥9,900 | |
| 89571-K0010 |
Computer, Fuel Pump Control
2020-08 → 2021-04
ended
|
MXPB1#,MXPJ1# | ¥10,900 | |
| 89570-52070 |
Computer, Fuel Pump Control
2024-01 → —
|
MXPJ1# | ¥5,700 | |
| 89571-10010 |
Computer, Fuel Pump Control
2024-01 → —
|
MXPB1# | ¥9,900 | |
| 89573 — Bracket, Fuel Pump Control Computer | ||||
| 89573-K0010 |
Bracket, Fuel Pump Control Computer
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥300 | |
| 89573-K0010 |
Bracket, Fuel Pump Control Computer
2024-01 → —
|
MXPB1# | ¥300 | |
| 89661 — Computer, Engine Control | ||||
| 89661-5CA40 note |
Computer, Engine Control
2020-08 → 2021-05
ended
|
MXPB10 | ¥72,400 | |
| 89661-5CA50 note |
Computer, Engine Control
2020-08 → 2021-05
ended
|
MXPB15 | ¥72,400 | |
| 89661-5CA80 note |
Computer, Engine Control
2020-08 → 2020-11
ended
|
MXPJ10 | ¥72,400 | |
| 89661-5CA81 note |
Computer, Engine Control
2020-12 → 2021-06
ended
|
MXPJ10 | ¥72,400 | |
| 89661-5CA82 note |
Computer, Engine Control
2021-07 → 2024-01
ended
|
MXPJ10 HBDG,HBDX,HBDZ | ¥72,400 | |
| 89661-5CA90 note |
Computer, Engine Control
2020-08 → 2020-11
ended
|
MXPJ15 | ¥72,400 | |
| 89661-5CA91 note |
Computer, Engine Control
2020-12 → 2021-06
ended
|
MXPJ15 | ¥72,400 | |
| 89661-5CA92 note |
Computer, Engine Control
2021-07 → 2024-01
ended
|
MXPJ15 | ¥72,400 | |
| 89661-5CF10 note |
Computer, Engine Control
2021-05 → 2021-06
ended
|
MXPB10 | ¥72,400 | |
| 89661-5CF11 note |
Computer, Engine Control
2021-07 → 2024-01
ended
|
MXPB10 | ¥72,400 | |
| 89661-5CF20 note |
Computer, Engine Control
2021-05 → 2021-06
ended
|
MXPB15 | ¥72,400 | |
| 89661-5CF21 note |
Computer, Engine Control
2021-07 → 2024-01
ended
|
MXPB15 | ¥72,400 | |
| 89661-5CJ40 note |
Computer, Engine Control
2022-08 → 2024-01
ended
|
MXPJ10 GRS | ¥72,400 | |
| 89661-5CJ60 note |
Computer, Engine Control
2024-01 → —
|
MXPB1# | ¥65,800 | |
| 89661-5CK00 note |
Computer, Engine Control
2024-01 → —
|
MXPJ1# | ¥65,800 | |
| 89667E — Bracket, Engine Control Computer, NO.1 | ||||
| 89667-K0010 |
Bracket, Engine Control Computer, NO.1
2020-08 → 2024-01
ended
|
MXPB1# | ¥400 | |
| 89667-K0020 |
Bracket, Engine Control Computer, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# | ¥450 | |
| 89667-K0010 |
Bracket, Engine Control Computer, NO.1
2024-01 → —
|
MXPB1# | ¥400 | |
| 89667-K0020 |
Bracket, Engine Control Computer, NO.1
2024-01 → —
|
MXPJ1# | ¥450 | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-52430 |
Bracket, Engine Control Computer, NO.2
2020-08 → 2024-01
ended
|
MXPB1# | ¥680 | |
| 89668-K0020 |
Bracket, Engine Control Computer, NO.2
2020-08 → 2024-01
ended
|
MXPJ1# | ¥640 | |
| 89668-52430 |
Bracket, Engine Control Computer, NO.2
2024-01 → —
|
MXPB1# | ¥680 | |
| 89668-K0020 |
Bracket, Engine Control Computer, NO.2
2024-01 → —
|
MXPJ1# | ¥640 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
