Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

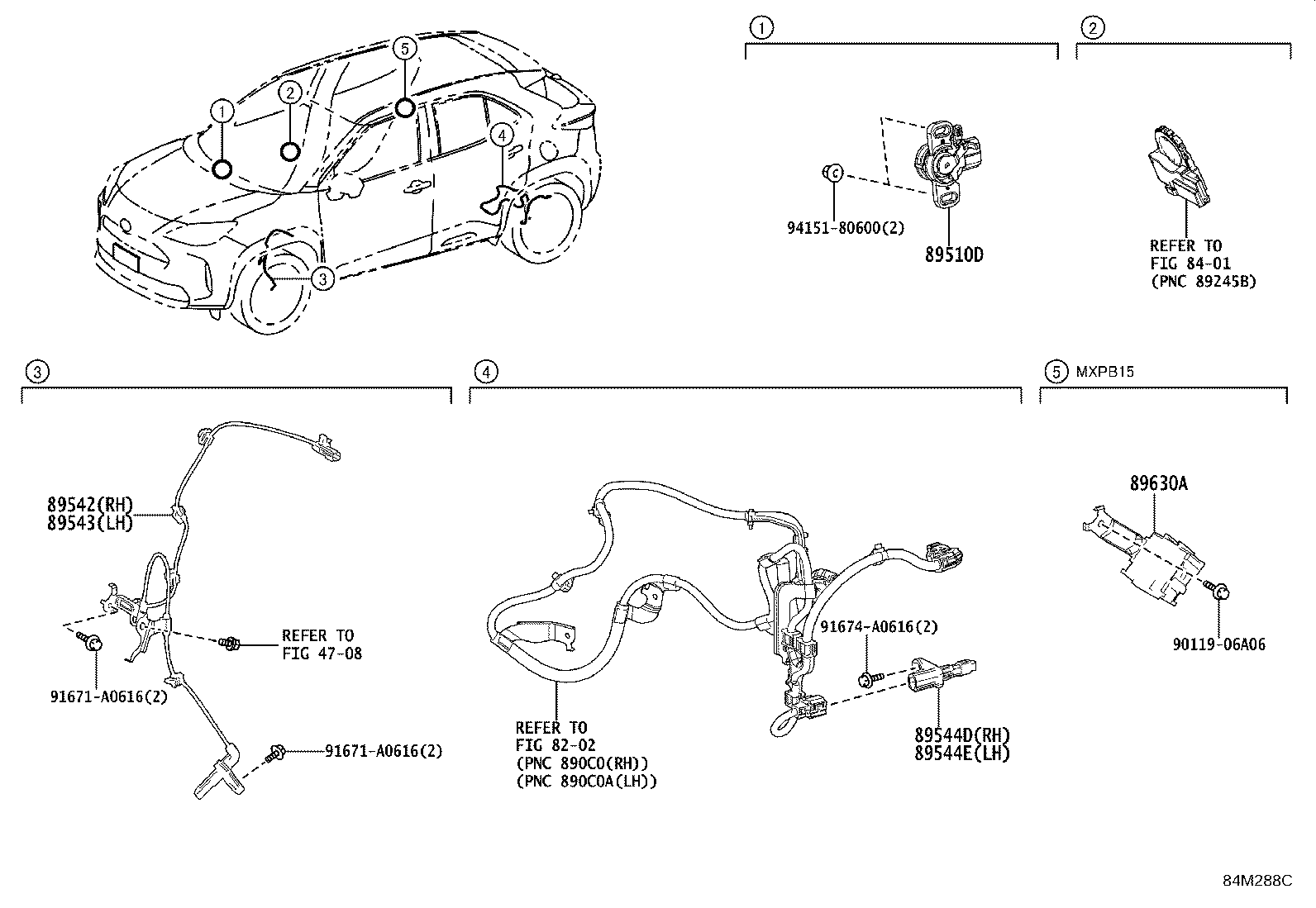

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89510D — Sensor Assy, Brake Pedal Stroke | ||||
| 89510-47030 |
Sensor Assy, Brake Pedal Stroke
2020-08 → 2024-01
ended
|
MXPJ1# | ¥7,900 | |
| 89510-K0021 |
Sensor Assy, Brake Pedal Stroke
2024-01 → —
|
MXPJ1# | ¥6,100 | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-52110 |
Sensor, Speed, Front RH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥8,100 | |
| 89542-52110 |
Sensor, Speed, Front RH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥8,100 | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-52110 |
Sensor, Speed, Front LH
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥8,100 | |
| 89543-52110 |
Sensor, Speed, Front LH
2024-01 → —
|
MXPB1#,MXPJ1# | ¥8,100 | |
| 89544D — Sensor, Skid Control, Rear RH | ||||
| 89544-52050 |
Sensor, Skid Control, Rear RH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥8,400 | |
| 89544-52050 |
Sensor, Skid Control, Rear RH
2024-01 → —
|
MXPB15,MXPJ15 | ¥8,400 | |
| 89544E — Sensor, Skid Control, Rear LH | ||||
| 89544-52050 |
Sensor, Skid Control, Rear LH
2020-08 → 2024-01
ended
|
MXPB15,MXPJ15 | ¥8,400 | |
| 89544-52050 |
Sensor, Skid Control, Rear LH
2024-01 → —
|
MXPB15,MXPJ15 | ¥8,400 | |
| 89630A — Computer Assy, 4WD | ||||
| 89630-52080 |
Computer Assy, 4WD
2020-08 → 2024-01
ended
|
MXPB15 | ¥21,400 | |
| 89630-52210 note |
Computer Assy, 4WD
2024-01 → 2025-03
ended
|
MXPB15 G | ¥19,500 | |
| 89630-52210 note |
Computer Assy, 4WD
2024-01 → —
|
MXPB15 Z | ¥19,500 | |
| 89630-52220 |
Computer Assy, 4WD
2024-01 → —
|
MXPB15 | ¥19,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
