Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

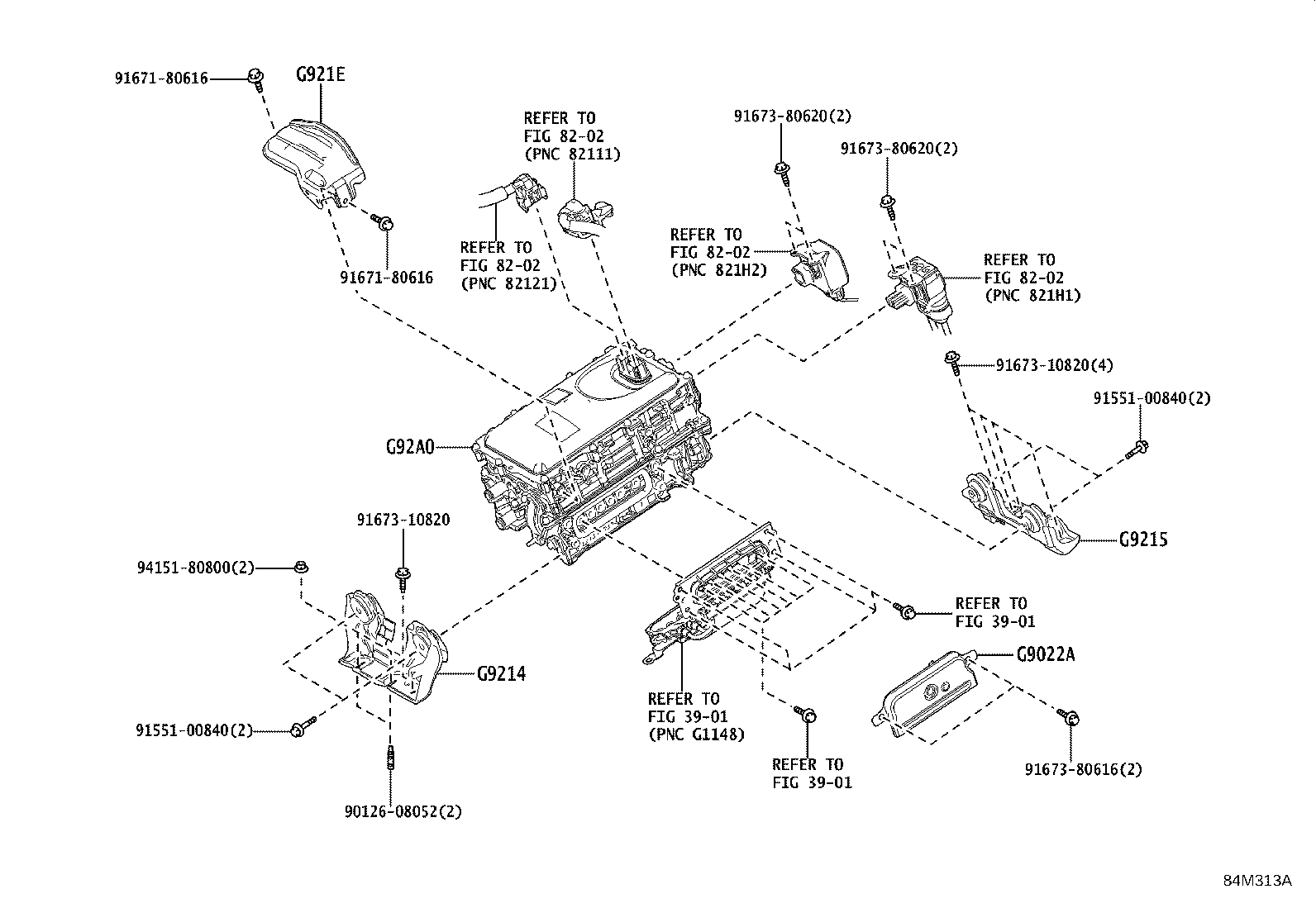

Exploded illustration 84M313A G9215 — BRACKET, INVERTER, NO.2 (2 parts) 9167310820 — not listed in this catalogue 9167310820 — not listed in this catalogue 9155100840 — not listed in this catalogue 3901 — not listed in this catalogue 3901 — not listed in this catalogue G92A0 — INVERTER ASSY, HYBRID MOTOR CONTROL (14 parts) G9214 — BRACKET, INVERTER, NO.1 (2 parts) G9022A — COVER SUB-ASSY, INVERTER, UPPER (2 parts) 9012608052 — not listed in this catalogue 9167380616 — not listed in this catalogue 9415180800 — not listed in this catalogue 9155100840 — not listed in this catalogue G921E — PROTECTOR, INVERTER (2 parts) 9167380620 — not listed in this catalogue 9167380620 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 3901 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue
84M313A · 5 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
G9022A — Cover Sub-assy, Inverter, Upper
G9022-47050 Cover Sub-assy, Inverter, Upper
2020-08 → 2024-01 ended
MXPJ1# ¥1,960
G9022-47050 Cover Sub-assy, Inverter, Upper
2024-01 → —
MXPJ1# ¥1,960
G9214 — Bracket, Inverter, NO.1
G9214-K0010 Bracket, Inverter, NO.1
2020-08 → 2024-01 ended
MXPJ1# ¥2,820
G9214-K0010 Bracket, Inverter, NO.1
2024-01 → —
MXPJ1# ¥2,820
G9215 — Bracket, Inverter, NO.2
G9215-K0010 Bracket, Inverter, NO.2
2020-08 → 2024-01 ended
MXPJ1# ¥2,190
G9215-K0010 Bracket, Inverter, NO.2
2024-01 → —
MXPJ1# ¥2,190
G921E — Protector, Inverter
G921E-K0010 Protector, Inverter
2020-08 → 2024-01 ended
MXPJ1# ¥1,610
G921E-K0010 Protector, Inverter
2024-01 → —
MXPJ1# ¥1,610
G92A0 — Inverter Assy, Hybrid Motor Control
G9200-K9011 Inverter Assy, Hybrid Motor Control
2023-01 → 2024-01 ended
MXPJ10 GRS ¥199,000
G92A0-52150 note Inverter Assy, Hybrid Motor Control
2021-11 → 2023-01 ended
MXPJ10 ¥199,000
G92A0-52160 note Inverter Assy, Hybrid Motor Control
2021-11 → 2023-01 ended
MXPJ15 ¥199,000
G92A0-52170 Inverter Assy, Hybrid Motor Control
2023-01 → 2024-01 ended
MXPJ10 HBDG,HBDX,HBDZ ¥181,000
G92A0-52180 Inverter Assy, Hybrid Motor Control
2023-01 → 2023-07 ended
MXPJ15 ¥199,000
G92A0-52181 Inverter Assy, Hybrid Motor Control
2023-08 → 2024-01 ended
MXPJ15 ¥181,000
G92A0-K2010 Inverter Assy, Hybrid Motor Control
2020-08 → 2021-03 ended
MXPJ10 ¥199,000
G92A0-K2011 Inverter Assy, Hybrid Motor Control
2021-04 → 2021-11 ended
MXPJ10 ¥200,000
G92A0-K2011 note Inverter Assy, Hybrid Motor Control
2021-11 → 2023-01 ended
MXPJ10 ¥200,000
G92A0-K2020 Inverter Assy, Hybrid Motor Control
2020-08 → 2021-03 ended
MXPJ15 ¥199,000
G92A0-K2021 Inverter Assy, Hybrid Motor Control
2021-04 → 2021-11 ended
MXPJ15 ¥200,000
G92A0-K2021 note Inverter Assy, Hybrid Motor Control
2021-11 → 2023-01 ended
MXPJ15 ¥200,000
G92A0-52170 Inverter Assy, Hybrid Motor Control
2024-01 → —
MXPJ10 ¥181,000
G92A0-52181 Inverter Assy, Hybrid Motor Control
2024-01 → —
MXPJ15 ¥181,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
