Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

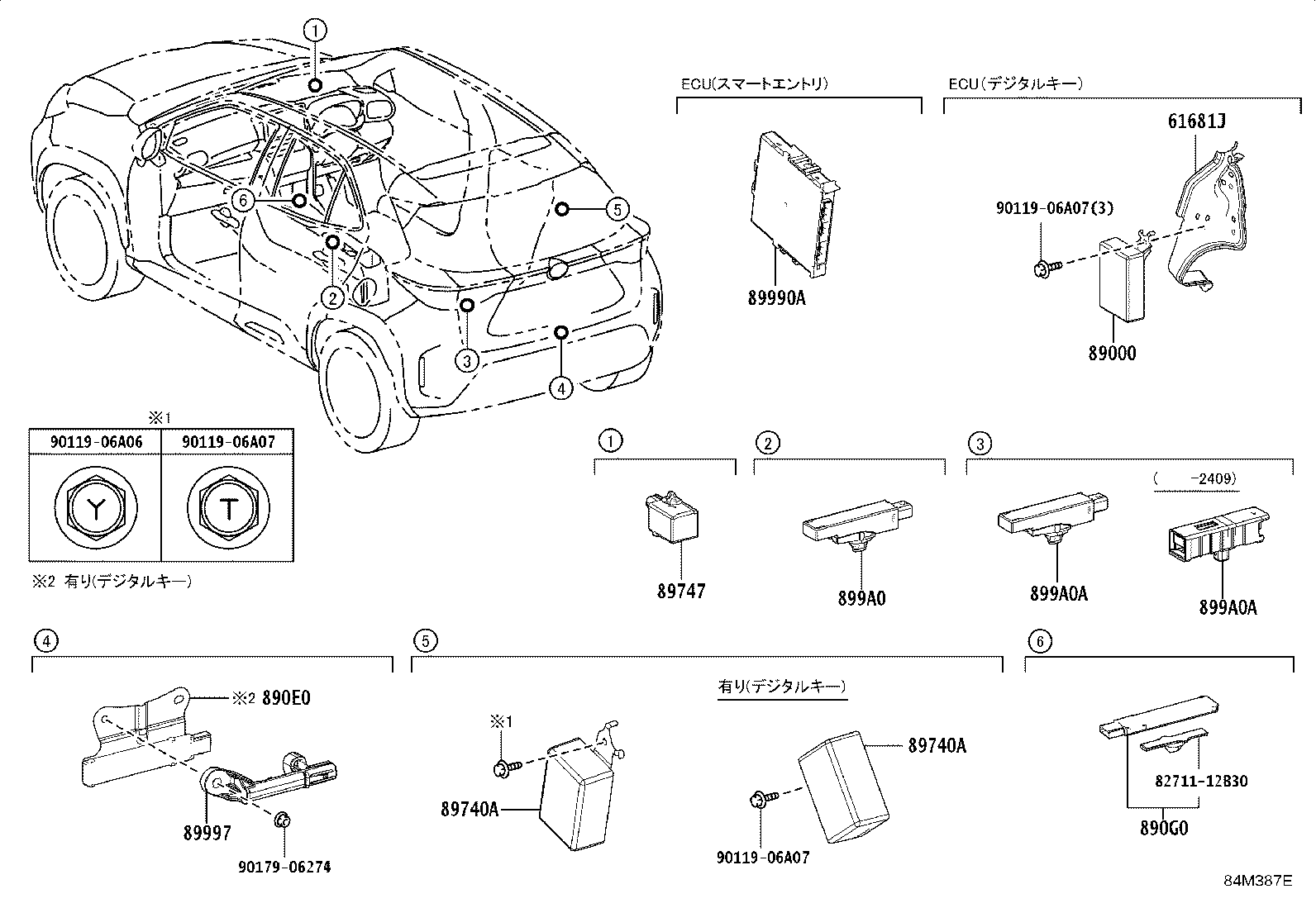

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 61681J — Bracket, Digital Key Computer | ||||
| 61681-52030 note |
Bracket, Digital Key Computer
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥1,470 | |
| 61681-52030 note |
Bracket, Digital Key Computer
2024-01 → —
|
MXPJ1# U | ¥1,470 | |
| 61681-52030 note |
Bracket, Digital Key Computer
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥1,470 | |
| 89000 — Computer Assy, Digital Key | ||||
| 89000-52080 note |
Computer Assy, Digital Key
2024-01 → 2024-08
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥23,800 | |
| 89000-52080 note |
Computer Assy, Digital Key
2024-01 → 2024-08
ended
|
MXPJ1# U | ¥23,800 | |
| 89000-52210 note |
Computer Assy, Digital Key
2024-08 → 2025-03
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥21,600 | |
| 89000-52210 note |
Computer Assy, Digital Key
2024-08 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥21,600 | |
| 89000-52210 note |
Computer Assy, Digital Key
2024-08 → —
|
MXPJ1# U | ¥21,600 | |
| 890E0 — Receiver Assy, Ble Digital Key | ||||
| 890E0-52060 |
Receiver Assy, Ble Digital Key
2024-01 → —
|
MXPJ1# U | ¥8,700 | |
| 890E0-52060 note |
Receiver Assy, Ble Digital Key
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥8,700 | |
| 890E0-52060 note |
Receiver Assy, Ble Digital Key
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥8,700 | |
| 890G0 — Receiver Assy, Ble Indoor Digital Key | ||||
| 890G0-V1010 note |
Receiver Assy, Ble Indoor Digital Key
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥7,100 | |
| 890G0-V1010 note |
Receiver Assy, Ble Indoor Digital Key
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥7,100 | |
| 890G0-V1010 note |
Receiver Assy, Ble Indoor Digital Key
2024-01 → —
|
MXPJ1# U | ¥7,100 | |
| 89740A — Receiver Assy, Smart Door Control | ||||
| 89740-52520 |
Receiver Assy, Smart Door Control
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥11,700 | |
| 89740-52520 |
Receiver Assy, Smart Door Control
2024-01 → —
|
MXPB1#,MXPJ1# | ¥11,700 | |
| 89740-52650 note |
Receiver Assy, Smart Door Control
2024-01 → —
|
MXPJ1# U | ¥11,700 | |
| 89740-52650 note |
Receiver Assy, Smart Door Control
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥11,700 | |
| 89740-52650 note |
Receiver Assy, Smart Door Control
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥11,700 | |
| 89740-52650 note |
Receiver Assy, Smart Door Control
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# G,HBDG | ¥11,700 | |
| 89740-52650 note |
Receiver Assy, Smart Door Control
2024-01 → —
|
MXPB1#,MXPJ1# GRS,HBDZ,Z | ¥11,700 | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-30040 |
Buzzer, Wireless Door Lock
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥2,900 | |
| 89747-30040 |
Buzzer, Wireless Door Lock
2024-01 → —
|
MXPB1# | ¥2,900 | |
| 89990A — Computer Assy, Smart Key | ||||
| 899H0-52010 |
Computer Assy, Smart Key
2020-08 → 2022-08
ended
|
MXPB1# | ¥49,400 | |
| 899H0-52020 |
Computer Assy, Smart Key
2020-08 → 2022-08
ended
|
MXPJ1# | ¥49,400 | |
| 899H0-52170 |
Computer Assy, Smart Key
2022-08 → 2024-01
ended
|
MXPB1# | ¥49,400 | |
| 899H0-52180 |
Computer Assy, Smart Key
2022-08 → 2024-01
ended
|
MXPJ1# | ¥49,400 | |
| 899H0-52310 |
Computer Assy, Smart Key
2024-01 → —
|
MXPB1# | ¥44,900 | |
| 899H0-52320 |
Computer Assy, Smart Key
2024-01 → —
|
MXPJ1# | ¥44,900 | |
| 899H0-52330 note |
Computer Assy, Smart Key
2024-01 → 2025-03
ended
|
MXPB1# G | ¥44,900 | |
| 899H0-52330 note |
Computer Assy, Smart Key
2024-01 → —
|
MXPB1# GRS,Z | ¥44,900 | |
| 899H0-52340 note |
Computer Assy, Smart Key
2024-01 → 2025-03
ended
|
MXPJ1# HBDG | ¥44,900 | |
| 899H0-52340 note |
Computer Assy, Smart Key
2024-01 → —
|
MXPJ1# GRS,HBDZ | ¥44,900 | |
| 899H0-52340 note |
Computer Assy, Smart Key
2024-01 → —
|
MXPJ1# U | ¥44,900 | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-30100 |
Antenna, Electrical Key
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥1,800 | |
| 89997-30100 |
Antenna, Electrical Key
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,800 | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-12080 |
Antenna Assy, Indoor Electrical Key, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥1,410 | |
| 899A0-12080 |
Antenna Assy, Indoor Electrical Key, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# | ¥1,410 | |
| 899A0A — Antenna Assy, Indoor Electrical Key, NO.2 | ||||
| 899A0-12090 |
Antenna Assy, Indoor Electrical Key, NO.2
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥1,560 | |
| 899A0-12080 |
Antenna Assy, Indoor Electrical Key, NO.2
2024-09 → —
|
MXPB1#,MXPJ1# | ¥1,410 | |
| 899A0-12090 |
Antenna Assy, Indoor Electrical Key, NO.2
2024-01 → 2024-09
ended
|
MXPB1#,MXPJ1# | ¥1,560 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
