Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

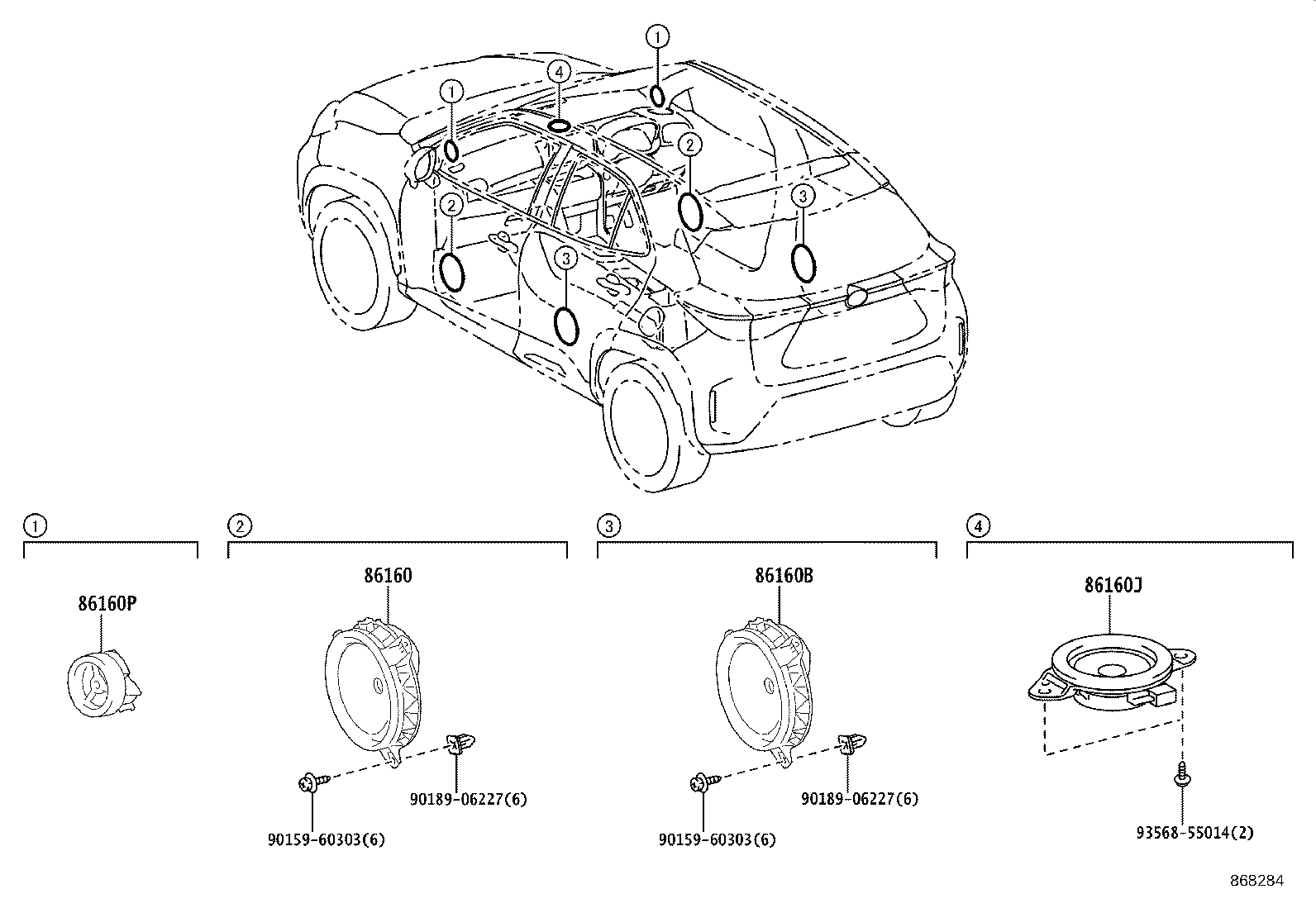

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

17 parts on this figure

Part number	Description	Fitment	Price
86160 — Speaker Assy, Front NO.1
86160-30E00	Speaker Assy, Front NO.1 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥6,300
86160-30E00	Speaker Assy, Front NO.1 2024-01 → —	MXPB1#,MXPJ1#	¥6,300
86160B — Speaker Assy, Rear
86160-30E00	Speaker Assy, Rear 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z	¥6,300
86160-30E00 note	Speaker Assy, Rear 2024-01 → 2025-02 ended	MXPB1#,MXPJ1# HBDX,X	¥6,300
86160-30E00 note	Speaker Assy, Rear 2024-01 → 2025-02 ended	MXPB1#,MXPJ1# HBDX,X	¥6,300
86160-30E00 note	Speaker Assy, Rear 2024-01 → 2025-02 ended	MXPB1#,MXPJ1# HBDX,X	¥6,300
86160-30E00	Speaker Assy, Rear 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z	¥6,300
86160J — Speaker Assy, Front NO.3
86150-52100 note	Speaker Assy, Front NO.3 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# HBDX,X	¥3,700
86150-52100	Speaker Assy, Front NO.3 2020-08 → 2024-01 ended	MXPB1#,MXPJ1#	¥3,700
86150-52100 note	Speaker Assy, Front NO.3 2024-01 → 2025-02 ended	MXPB1#,MXPJ1# HBDX,X	¥3,700
86150-52100 note	Speaker Assy, Front NO.3 2024-01 → 2025-02 ended	MXPB1#,MXPJ1# HBDX,X	¥3,700
86150-52100	Speaker Assy, Front NO.3 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z	¥3,700
86160P — Speaker Assy, Front NO.2
86160-52170	Speaker Assy, Front NO.2 2020-08 → 2024-01 ended	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z	¥2,210
86160-52170 note	Speaker Assy, Front NO.2 2024-01 → 2025-02 ended	MXPB1#,MXPJ1# HBDX,X	¥2,210
86160-52170 note	Speaker Assy, Front NO.2 2024-01 → 2025-02 ended	MXPB1#,MXPJ1# HBDX,X	¥2,210
86160-52170 note	Speaker Assy, Front NO.2 2024-01 → 2025-02 ended	MXPB1#,MXPJ1# HBDX,X	¥2,210
86160-52170	Speaker Assy, Front NO.2 2024-01 → —	MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z	¥2,210

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
