Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

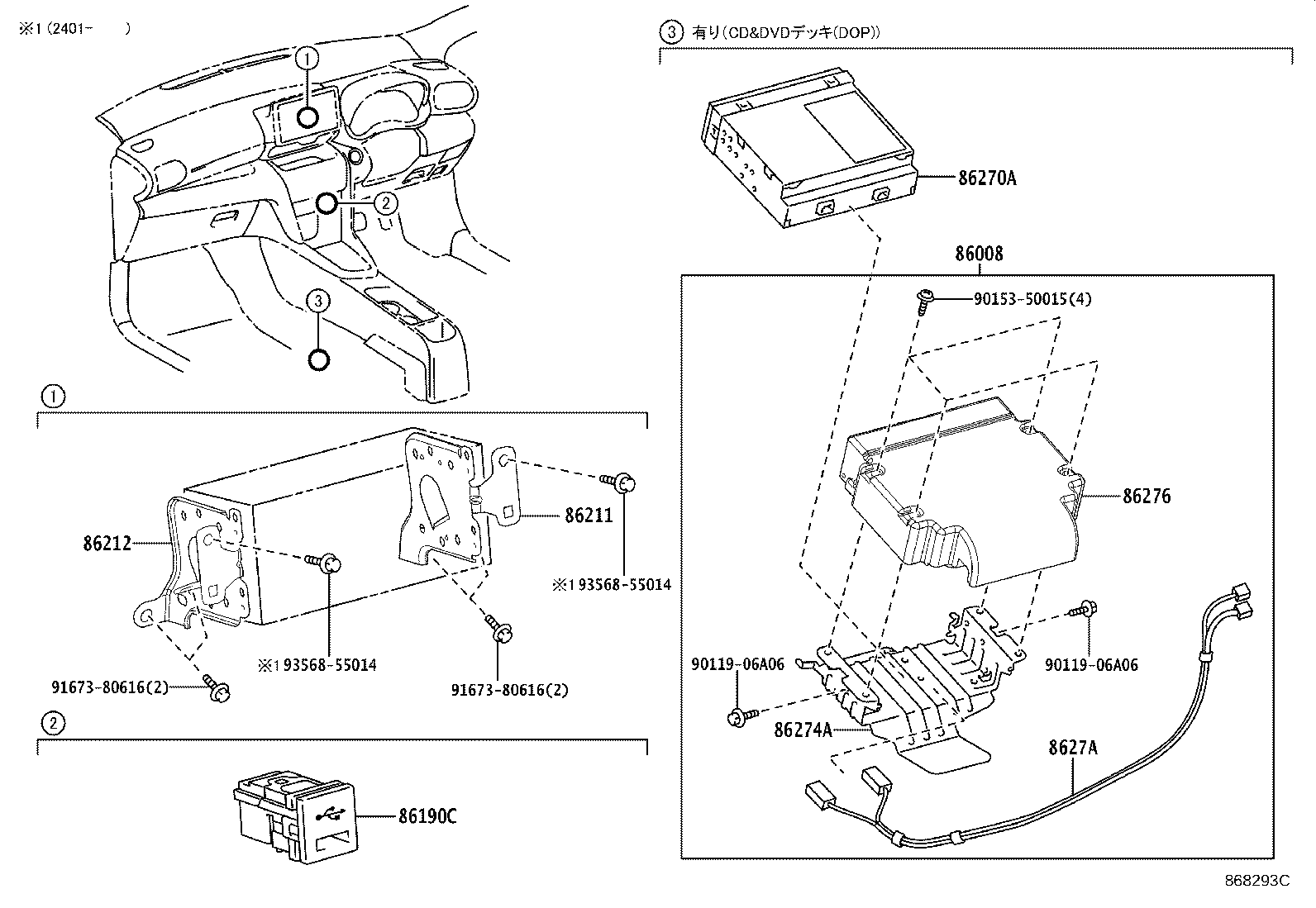

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86008 — Deck Set, Disc Player | ||||
| 86008-K0010 note |
Deck Set, Disc Player
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥5,000 | |
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-52070 |
Adapter Assy, Stereo Jack, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥4,160 | |
| 86190-12080 note |
Adapter Assy, Stereo Jack, NO.1
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥3,780 | |
| 86190-12080 note |
Adapter Assy, Stereo Jack, NO.1
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥3,780 | |
| 86190-12080 |
Adapter Assy, Stereo Jack, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z | ¥3,780 | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-52390 note |
Bracket, Radio, NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥1,340 | |
| 86211-52390 note |
Bracket, Radio, NO.1
2024-01 → —
|
MXPB1#,MXPJ1# HBDX,X | ¥1,340 | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-52390 note |
Bracket, Radio, NO.2
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥1,340 | |
| 86212-52390 note |
Bracket, Radio, NO.2
2024-01 → —
|
MXPB1#,MXPJ1# HBDX,X | ¥1,340 | |
| 86270A — Disc Player Assy | ||||
| 86270-K0010 note |
Disc Player Assy
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥32,500 | |
| 86274A — Bracket, Disc Player | ||||
| 86274-K0010 note |
Bracket, Disc Player
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥2,950 | |
| 86276 — Cover, Disc Player | ||||
| 86276-K0010 note |
Cover, Disc Player
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥5,400 | |
| 8627A — Wire, Disc Player | ||||
| 8627A-K0010 note |
Wire, Disc Player
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥5,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
