Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

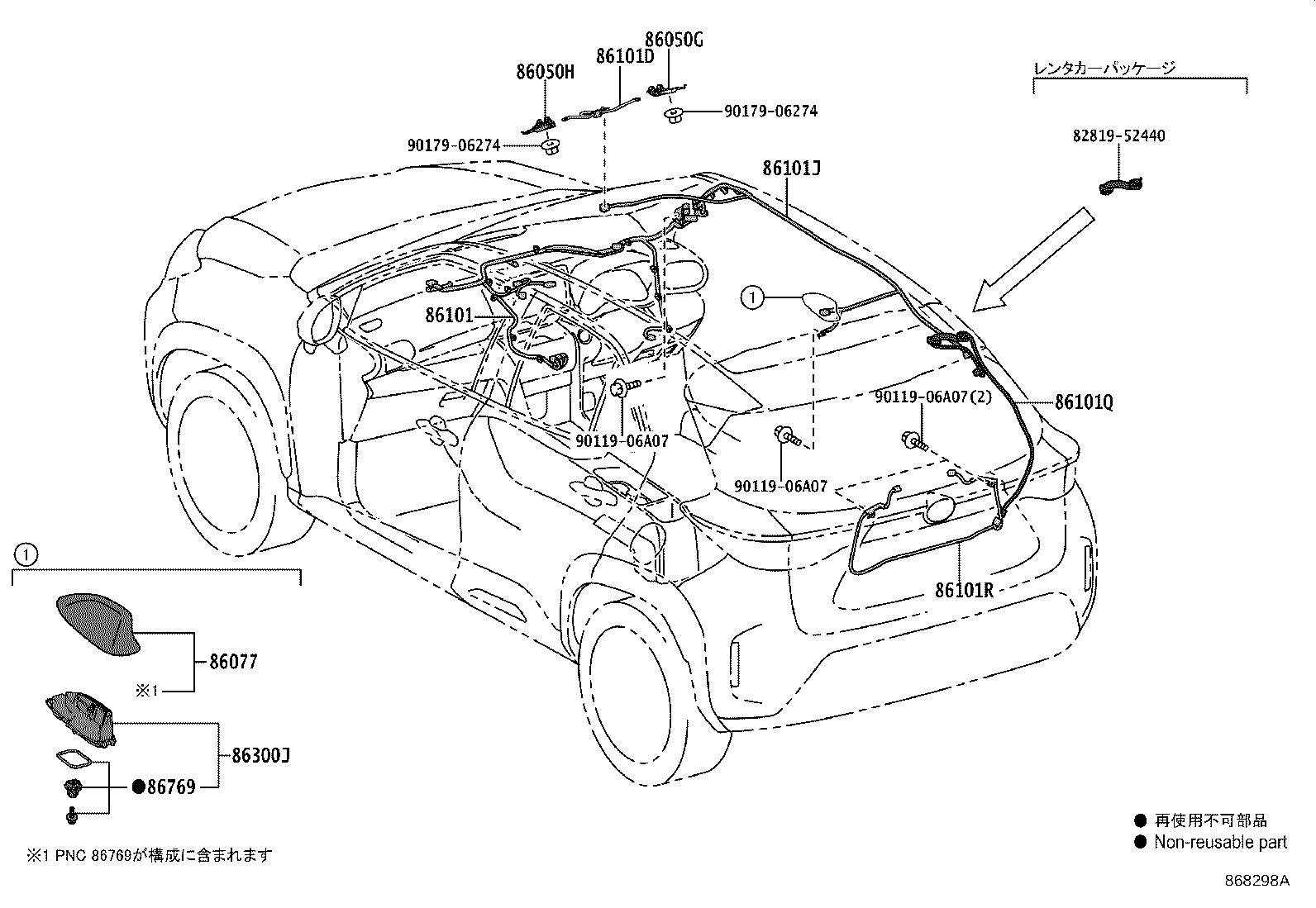

Exploded illustration 868298A 8281952440 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9011906A07 — not listed in this catalogue 86101Q — CORD SUB-ASSY, ANTENNA, NO.4 (3 parts) 86050G — ANTENNA ASSY, TELEVISION, NO.1 RH (3 parts) 86101R — CORD SUB-ASSY, ANTENNA, NO.5 (3 parts) 86101J — CORD SUB-ASSY, ANTENNA, NO.2 (7 parts) 86101 — CORD SUB-ASSY, ANTENNA (11 parts) 86101D — CORD SUB-ASSY, ANTENNA, NO.3 (3 parts) 86050H — ANTENNA ASSY, TELEVISION, NO.1 LH (3 parts) 86077 — COVER KIT, ANTENNA (20 parts) 86300J — ANTENNA ASSY, ROOF (2 parts) 86769 — HOUSING, ROOF ANTENNA (2 parts) 9011906A07 — not listed in this catalogue 9011906A07 — not listed in this catalogue
868298A · 10 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
86050G — Antenna Assy, Television, NO.1 RH
86050-53180 Antenna Assy, Television, NO.1 RH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥6,400
86050-53180 note Antenna Assy, Television, NO.1 RH
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDX,HBDZ,U,X,Z ¥6,400
86050-53180 note Antenna Assy, Television, NO.1 RH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥6,400
86050H — Antenna Assy, Television, NO.1 LH
86050-53190 Antenna Assy, Television, NO.1 LH
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥6,400
86050-53190 note Antenna Assy, Television, NO.1 LH
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDX,HBDZ,U,X,Z ¥6,400
86050-53190 note Antenna Assy, Television, NO.1 LH
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥6,400
86077 — Cover Kit, Antenna
86077-33040-A0 note Cover Kit, Antenna
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,960
86077-33040-A1 note Cover Kit, Antenna
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# ¥1,960
86077-33040-B2 note Cover Kit, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,960
86077-33040-C1 note Cover Kit, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥1,960
86077-33040-C1 note Cover Kit, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥1,960
86077-33040-C1 note Cover Kit, Antenna
2022-08 → 2024-01 ended
MXPB10,MXPJ10 GRS ¥1,960
86077-33040-D1 note Cover Kit, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,960
86077-33040-E2 note Cover Kit, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥1,960
86077-33040-F0 note Cover Kit, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥2,160
86077-33040-J0 note Cover Kit, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,960
86077-33040-J1 note Cover Kit, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,X,Z ¥1,960
86077-33040-A0 note Cover Kit, Antenna
2024-01 → —
MXPB1#,MXPJ1# ¥1,960
86077-33040-B2 note Cover Kit, Antenna
2024-01 → —
MXPB1#,MXPJ1# ¥1,960
86077-33040-C1 note Cover Kit, Antenna
2024-01 → —
MXPB1#,MXPJ1# HBDX,X ¥1,960
86077-33040-C1 note Cover Kit, Antenna
2024-01 → —
MXPB10,MXPJ10 GRS ¥1,960
86077-33040-C1 note Cover Kit, Antenna
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDZ,U,Z ¥1,960
86077-33040-D1 note Cover Kit, Antenna
2024-01 → —
MXPB1#,MXPJ1# ¥1,960
86077-33040-E2 note Cover Kit, Antenna
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥1,960
86077-33040-J1 note Cover Kit, Antenna
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,HBDZ,U,X,Z ¥1,960
86077-33040-P1 note Cover Kit, Antenna
2024-01 → —
MXPB1#,MXPJ1# ¥1,960
86101 — Cord Sub-assy, Antenna
86101-52L20 note Cord Sub-assy, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥4,460
86101-K0820 Cord Sub-assy, Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥8,700
86101-52R30 note Cord Sub-assy, Antenna
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDZ,U,Z ¥7,800
86101-52R30 note Cord Sub-assy, Antenna
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥7,800
86101-52R30 note Cord Sub-assy, Antenna
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥7,800
86101-52R30 note Cord Sub-assy, Antenna
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥7,800
86101-52R40 Cord Sub-assy, Antenna
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥6,700
86101-52R40 note Cord Sub-assy, Antenna
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥6,700
86101-52R40 note Cord Sub-assy, Antenna
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥6,700
86101-52R40 Cord Sub-assy, Antenna
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,U ¥6,700
86101-52S20 Cord Sub-assy, Antenna
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥5,500
86101D — Cord Sub-assy, Antenna, NO.3
86101-K0010 Cord Sub-assy, Antenna, NO.3
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,410
86101-52S30 note Cord Sub-assy, Antenna, NO.3
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDX,HBDZ,U,X,Z ¥2,190
86101-52S30 note Cord Sub-assy, Antenna, NO.3
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥2,190
86101J — Cord Sub-assy, Antenna, NO.2
86101-52C00 Cord Sub-assy, Antenna, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥7,500
86101-52L10 note Cord Sub-assy, Antenna, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥4,460
86101-52Q20 note Cord Sub-assy, Antenna, NO.2
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDX,HBDZ,U,X,Z ¥4,980
86101-52Q20 note Cord Sub-assy, Antenna, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥4,980
86101-52Q50 Cord Sub-assy, Antenna, NO.2
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥3,130
86101-52Q50 Cord Sub-assy, Antenna, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,HBDG,HBDX,U,X ¥3,130
86101-52Q50 note Cord Sub-assy, Antenna, NO.2
2025-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,HBDZ,X,Z ¥3,130
86101Q — Cord Sub-assy, Antenna, NO.4
86101-52D80 Cord Sub-assy, Antenna, NO.4
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥4,970
86101-52S60 note Cord Sub-assy, Antenna, NO.4
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDX,HBDZ,U,X,Z ¥4,050
86101-52S60 note Cord Sub-assy, Antenna, NO.4
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥4,050
86101R — Cord Sub-assy, Antenna, NO.5
86101-52F20 Cord Sub-assy, Antenna, NO.5
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥2,920
86101-52S70 note Cord Sub-assy, Antenna, NO.5
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDX,HBDZ,U,X,Z ¥2,190
86101-52S70 note Cord Sub-assy, Antenna, NO.5
2024-01 → —
MXPB1#,MXPJ1# G,HBDG ¥2,190
86300J — Antenna Assy, Roof
86760-K0010 Antenna Assy, Roof
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥11,700
86760-K0010 Antenna Assy, Roof
2024-01 → —
MXPB1#,MXPJ1# ¥11,700
86769 — Housing, Roof Antenna
86769-K0010 Housing, Roof Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥500
86769-K0010 Housing, Roof Antenna
2024-01 → —
MXPB1#,MXPJ1# ¥500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
