Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

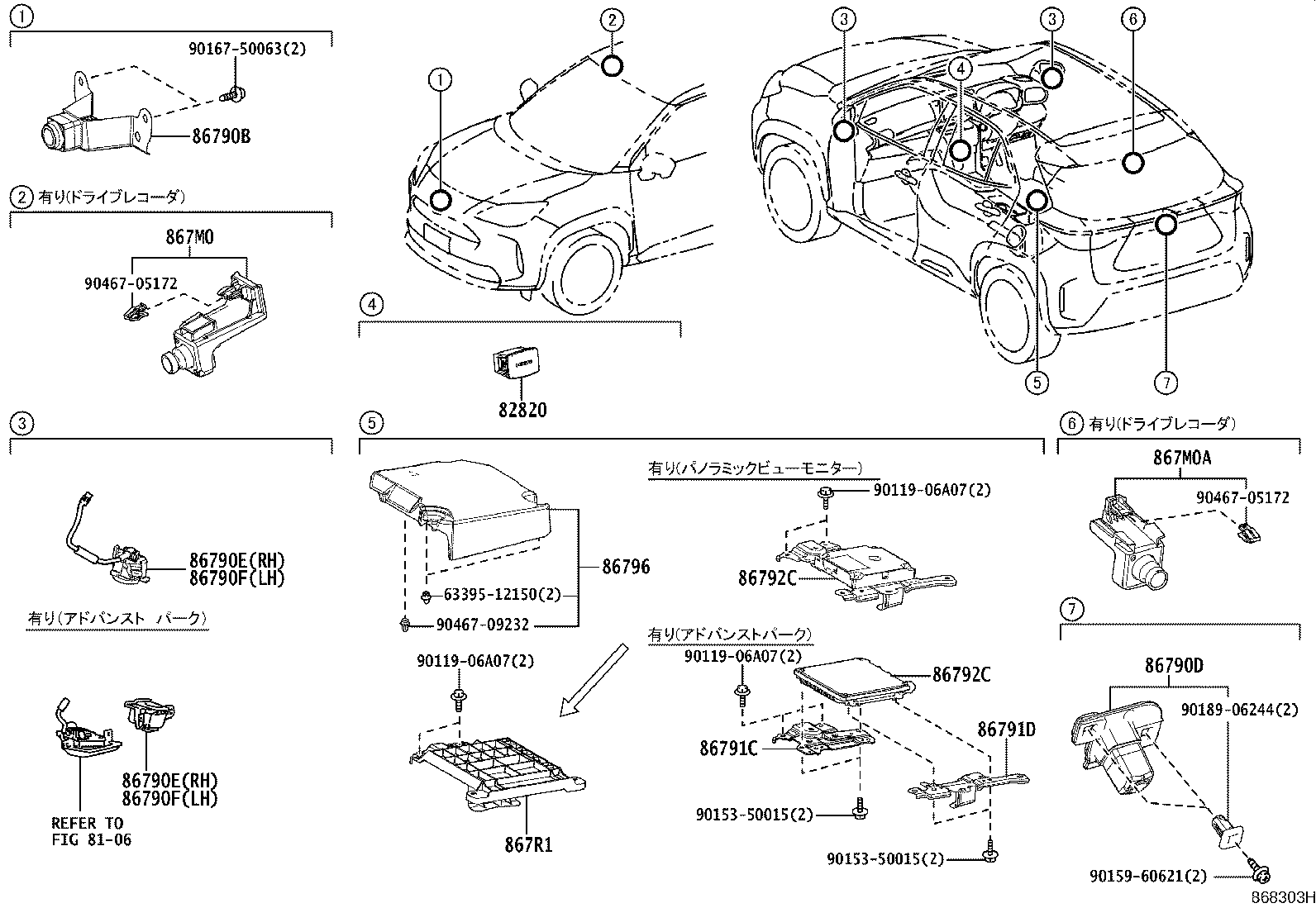

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82820 — Cover, Connector | ||||
| 82821-58050-C2 note |
Cover, Connector
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥300 | |
| 82821-58050-C2 note |
Cover, Connector
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥300 | |
| 82821-58050-C2 note |
Cover, Connector
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z | ¥300 | |
| 86790B — Camera Assy, Television, FR | ||||
| 86790-52290 note |
Camera Assy, Television, FR
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# | ¥26,800 | |
| 86790-52291 note |
Camera Assy, Television, FR
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥26,800 | |
| 86790-52300 note |
Camera Assy, Television, FR
2020-08 → 2022-08
ended
|
MXPJ1# HBDX | ¥34,100 | |
| 86790-52300 note |
Camera Assy, Television, FR
2020-08 → 2024-01
ended
|
MXPJ1# GRS,HBDG,HBDZ | ¥34,100 | |
| 86790-52750 note |
Camera Assy, Television, FR
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z | ¥15,500 | |
| 86790-52750 |
Camera Assy, Television, FR
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥15,500 | |
| 86790-52760 note |
Camera Assy, Television, FR
2024-01 → 2025-02
ended
|
MXPJ1# HBDG,U | ¥21,900 | |
| 86790-52760 note |
Camera Assy, Television, FR
2024-01 → —
|
MXPJ1# GRS,HBDZ | ¥21,900 | |
| 86790-52760 note |
Camera Assy, Television, FR
2024-01 → —
|
MXPJ1# U | ¥21,900 | |
| 86790-52760 note |
Camera Assy, Television, FR
2024-01 → —
|
MXPJ1# U | ¥21,900 | |
| 86790-52760 note |
Camera Assy, Television, FR
2024-01 → —
|
MXPJ1# U | ¥21,900 | |
| 86790D — Camera Assy, Television, RR | ||||
| 86790-52280 note |
Camera Assy, Television, RR
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥26,800 | |
| 86790-52280 note |
Camera Assy, Television, RR
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥26,800 | |
| 86790-52480 note |
Camera Assy, Television, RR
2020-08 → 2022-08
ended
|
MXPJ1# HBDX | ¥34,100 | |
| 86790-52480 note |
Camera Assy, Television, RR
2020-08 → 2024-01
ended
|
MXPJ1# GRS,HBDG,HBDZ | ¥34,100 | |
| 867B0-52010 |
Camera Assy, Television, RR
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥26,800 | |
| 867B0-52010 note |
Camera Assy, Television, RR
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥26,800 | |
| 86790-52730 note |
Camera Assy, Television, RR
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z | ¥15,500 | |
| 86790-52730 |
Camera Assy, Television, RR
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥15,500 | |
| 86790-52730 note |
Camera Assy, Television, RR
2024-01 → —
|
MXPB1#,MXPJ1# HBDX,X | ¥15,500 | |
| 86790-52740 note |
Camera Assy, Television, RR
2024-01 → 2025-02
ended
|
MXPJ1# HBDG,HBDZ | ¥21,900 | |
| 86790-52740 note |
Camera Assy, Television, RR
2024-01 → —
|
MXPJ1# U | ¥21,900 | |
| 86790-52740 note |
Camera Assy, Television, RR
2024-01 → —
|
MXPJ10 GRS | ¥21,900 | |
| 86790-52740 note |
Camera Assy, Television, RR
2024-01 → —
|
MXPJ1# U | ¥21,900 | |
| 86790-52740 note |
Camera Assy, Television, RR
2024-01 → —
|
MXPJ1# U | ¥21,900 | |
| 86790-52740 note |
Camera Assy, Television, RR
2024-01 → —
|
MXPJ1# U | ¥21,900 | |
| 867B0-52130 note |
Camera Assy, Television, RR
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥26,500 | |
| 867B0-52130 |
Camera Assy, Television, RR
2024-01 → —
|
MXPB1#,MXPJ1# G,HBDG,U | ¥26,500 | |
| 867B0-52130 note |
Camera Assy, Television, RR
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥26,500 | |
| 867B0-52130 |
Camera Assy, Television, RR
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# HBDZ,Z | ¥26,500 | |
| 86790E — Camera Assy, Television, Side RH | ||||
| 86790-52450 note |
Camera Assy, Television, Side RH
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# | ¥26,800 | |
| 86790-52451 note |
Camera Assy, Television, Side RH
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥26,800 | |
| 86795-K0020 note |
Camera Assy, Television, Side RH
2020-08 → 2022-08
ended
|
MXPJ1# HBDX | ¥30,900 | |
| 86795-K0020 note |
Camera Assy, Television, Side RH
2020-08 → 2024-01
ended
|
MXPJ1# GRS,HBDG,HBDZ | ¥30,900 | |
| 86790-52780 note |
Camera Assy, Television, Side RH
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z | ¥15,500 | |
| 86790-52780 |
Camera Assy, Television, Side RH
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥15,500 | |
| 86790-52800 note |
Camera Assy, Television, Side RH
2024-01 → 2025-02
ended
|
MXPJ1# HBDG,U | ¥26,200 | |
| 86790-52800 note |
Camera Assy, Television, Side RH
2024-01 → —
|
MXPJ1# GRS,HBDZ | ¥26,200 | |
| 86790-52800 note |
Camera Assy, Television, Side RH
2024-01 → —
|
MXPJ1# U | ¥26,200 | |
| 86790-52800 note |
Camera Assy, Television, Side RH
2024-01 → —
|
MXPJ1# U | ¥26,200 | |
| 86790-52800 note |
Camera Assy, Television, Side RH
2024-01 → —
|
MXPJ1# U | ¥26,200 | |
| 86790F — Camera Assy, Television, Side LH | ||||
| 86790-52440 note |
Camera Assy, Television, Side LH
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# | ¥26,800 | |
| 86790-52441 note |
Camera Assy, Television, Side LH
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥26,800 | |
| 86795-K0010 note |
Camera Assy, Television, Side LH
2020-08 → 2022-08
ended
|
MXPJ1# HBDX | ¥30,900 | |
| 86795-K0010 note |
Camera Assy, Television, Side LH
2020-08 → 2024-01
ended
|
MXPJ1# GRS,HBDG,HBDZ | ¥30,900 | |
| 86790-52770 note |
Camera Assy, Television, Side LH
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z | ¥15,500 | |
| 86790-52770 |
Camera Assy, Television, Side LH
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥15,500 | |
| 86790-52790 note |
Camera Assy, Television, Side LH
2024-01 → 2025-02
ended
|
MXPJ1# HBDG,U | ¥26,200 | |
| 86790-52790 note |
Camera Assy, Television, Side LH
2024-01 → —
|
MXPJ1# GRS,HBDZ | ¥26,200 | |
| 86790-52790 note |
Camera Assy, Television, Side LH
2024-01 → —
|
MXPJ1# U | ¥26,200 | |
| 86790-52790 note |
Camera Assy, Television, Side LH
2024-01 → —
|
MXPJ1# U | ¥26,200 | |
| 86790-52790 note |
Camera Assy, Television, Side LH
2024-01 → —
|
MXPJ1# U | ¥26,200 | |
| 86791C — Bracket, Computer Parking Assist, NO.1 | ||||
| 86791-K0020 note |
Bracket, Computer Parking Assist, NO.1
2020-08 → 2022-08
ended
|
MXPJ1# HBDX | ¥910 | |
| 86791-K0020 note |
Bracket, Computer Parking Assist, NO.1
2020-08 → 2024-01
ended
|
MXPJ1# GRS,HBDG,HBDZ | ¥910 | |
| 86791-52250 note |
Bracket, Computer Parking Assist, NO.1
2024-01 → —
|
MXPJ1# U | ¥1,200 | |
| 86791-52250 note |
Bracket, Computer Parking Assist, NO.1
2024-01 → —
|
MXPJ1# U | ¥1,200 | |
| 86791-52250 note |
Bracket, Computer Parking Assist, NO.1
2024-01 → —
|
MXPJ1# U | ¥1,200 | |
| 86791-52250 note |
Bracket, Computer Parking Assist, NO.1
2024-01 → —
|
MXPJ1# U | ¥1,200 | |
| 86791-52250 note |
Bracket, Computer Parking Assist, NO.1
2024-01 → —
|
MXPJ10 GRS | ¥1,200 | |
| 86791-52250 note |
Bracket, Computer Parking Assist, NO.1
2024-01 → 2025-02
ended
|
MXPJ1# HBDG,HBDZ | ¥1,200 | |
| 86791D — Bracket, Computer Parking Assist, NO.2 | ||||
| 86791-52260 note |
Bracket, Computer Parking Assist, NO.2
2024-01 → 2025-02
ended
|
MXPJ1# HBDG,HBDZ | ¥1,010 | |
| 86791-52260 note |
Bracket, Computer Parking Assist, NO.2
2024-01 → —
|
MXPJ10 GRS | ¥1,010 | |
| 86791-52260 note |
Bracket, Computer Parking Assist, NO.2
2024-01 → —
|
MXPJ1# U | ¥1,010 | |
| 86791-52260 note |
Bracket, Computer Parking Assist, NO.2
2024-01 → —
|
MXPJ1# U | ¥1,010 | |
| 86791-52260 note |
Bracket, Computer Parking Assist, NO.2
2024-01 → —
|
MXPJ1# U | ¥1,010 | |
| 86791-52260 note |
Bracket, Computer Parking Assist, NO.2
2024-01 → —
|
MXPJ1# U | ¥1,010 | |
| 86792C — Computer, Parking Assist | ||||
| 86792-52090 note |
Computer, Parking Assist
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# | ¥69,600 | |
| 86792-52091 note |
Computer, Parking Assist
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥69,600 | |
| 86792-52130 note |
Computer, Parking Assist
2020-08 → 2022-08
ended
|
MXPJ1# HBDX | ¥105,000 | |
| 86792-52130 note |
Computer, Parking Assist
2020-08 → 2024-01
ended
|
MXPJ1# GRS,HBDG,HBDZ | ¥105,000 | |
| 86792-52410 note |
Computer, Parking Assist
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z | ¥63,200 | |
| 86792-52410 |
Computer, Parking Assist
2024-01 → —
|
MXPB10,MXPJ10 GRS | ¥63,200 | |
| 86792-52420 note |
Computer, Parking Assist
2024-01 → 2025-02
ended
|
MXPJ1# HBDG,HBDZ | ¥95,400 | |
| 86792-52420 note |
Computer, Parking Assist
2024-01 → —
|
MXPJ10 GRS | ¥95,400 | |
| 86792-52420 note |
Computer, Parking Assist
2024-01 → —
|
MXPJ1# U | ¥95,400 | |
| 86792-52420 note |
Computer, Parking Assist
2024-01 → —
|
MXPJ1# U | ¥95,400 | |
| 86792-52420 note |
Computer, Parking Assist
2024-01 → —
|
MXPJ1# U | ¥95,400 | |
| 86792-52420 note |
Computer, Parking Assist
2024-01 → —
|
MXPJ1# U | ¥95,400 | |
| 86796 — Cover, Computer Parking Assist | ||||
| 86796-K0010 note |
Cover, Computer Parking Assist
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥2,800 | |
| 86796-K0010 note |
Cover, Computer Parking Assist
2020-08 → 2024-01
ended
|
MXPJ1# GRS,HBDG,HBDZ | ¥2,800 | |
| 86796-K0010 note |
Cover, Computer Parking Assist
2020-08 → 2022-08
ended
|
MXPJ1# HBDX | ¥2,800 | |
| 86796-K0010 note |
Cover, Computer Parking Assist
2020-08 → 2022-08
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥2,800 | |
| 86796-K0010 note |
Cover, Computer Parking Assist
2024-01 → 2025-02
ended
|
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z | ¥2,800 | |
| 86796-K0010 note |
Cover, Computer Parking Assist
2024-01 → 2025-02
ended
|
MXPJ1# HBDG,HBDZ | ¥2,800 | |
| 86796-K0010 |
Cover, Computer Parking Assist
2024-01 → —
|
MXPB10,MXPJ1# GRS,U | ¥2,800 | |
| 867M0 — Camera Assy, Drive Recorder, Front | ||||
| 867M0-0W010 note |
Camera Assy, Drive Recorder, Front
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥23,700 | |
| 867M0-0W010 note |
Camera Assy, Drive Recorder, Front
2025-01 → 2025-03
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥23,700 | |
| 867M0-0W010 note |
Camera Assy, Drive Recorder, Front
2025-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥23,700 | |
| 867M0A — Camera Assy, Drive Recorder, Rear | ||||
| 867M0-0W020 note |
Camera Assy, Drive Recorder, Rear
2022-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥23,700 | |
| 867M0-0W020 note |
Camera Assy, Drive Recorder, Rear
2025-01 → 2025-03
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥23,700 | |
| 867M0-0W020 note |
Camera Assy, Drive Recorder, Rear
2025-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z | ¥23,700 | |
| 867R1 — Connector, Computer Parking Assist | ||||
| 867R1-52010 |
Connector, Computer Parking Assist
2024-01 → —
|
MXPJ1# U | ¥3,970 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
