Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

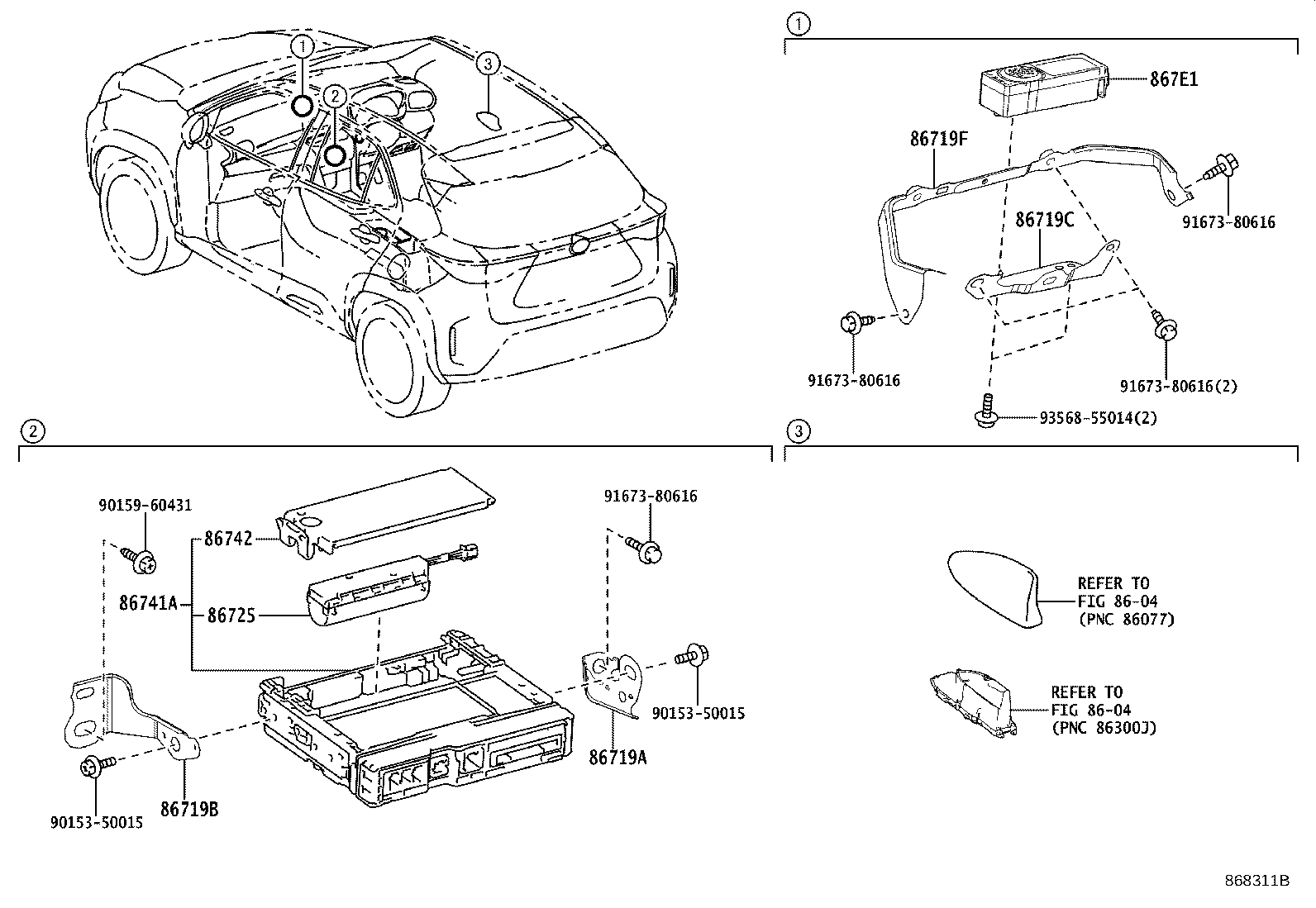

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86719A — Bracket, Telephone NO.1 | ||||
| 86719-K0010 note |
Bracket, Telephone NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥300 | |
| 86719-K0010 |
Bracket, Telephone NO.1
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥300 | |
| 86719-K0010 |
Bracket, Telephone NO.1
2024-01 → —
|
MXPB1#,MXPJ1# | ¥300 | |
| 86719B — Bracket, Telephone NO.2 | ||||
| 86719-K0020 |
Bracket, Telephone NO.2
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥240 | |
| 86719-K0020 note |
Bracket, Telephone NO.2
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥240 | |
| 86719-K0020 |
Bracket, Telephone NO.2
2024-01 → —
|
MXPB1#,MXPJ1# | ¥240 | |
| 86719C — Bracket, Telephone NO.3 | ||||
| 86161-52040 |
Bracket, Telephone NO.3
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥550 | |
| 86719F — Bracket, Telephone NO.4 | ||||
| 86457-K0110 |
Bracket, Telephone NO.4
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥1,000 | |
| 86725 — Battery, Mobilephone | ||||
| 86725-26010 |
Battery, Mobilephone
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥7,500 | |
| 86725-26010 note |
Battery, Mobilephone
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥7,500 | |
| 86725-78020 |
Battery, Mobilephone
2024-01 → —
|
MXPB1#,MXPJ1# | ¥7,500 | |
| 86741A — Transceiver, Telematics | ||||
| 86741-11041 |
Transceiver, Telematics
2020-08 → 2021-05
ended
|
MXPB1# | ¥37,900 | |
| 86741-11041 note |
Transceiver, Telematics
2020-08 → 2021-05
ended
|
MXPB1# X | ¥37,900 | |
| 86741-11042 note |
Transceiver, Telematics
2021-06 → 2022-10
ended
|
MXPB1# X | ¥38,000 | |
| 86741-11042 note |
Transceiver, Telematics
2021-06 → 2022-10
ended
|
MXPB1# | ¥38,000 | |
| 86741-48101 |
Transceiver, Telematics
2020-08 → 2021-05
ended
|
MXPJ1# | ¥37,900 | |
| 86741-48101 note |
Transceiver, Telematics
2020-08 → 2021-05
ended
|
MXPJ1# HBDX | ¥37,900 | |
| 86741-48102 |
Transceiver, Telematics
2021-06 → 2024-01
ended
|
MXPJ1# | ¥38,000 | |
| 86741-48102 note |
Transceiver, Telematics
2021-06 → 2024-01
ended
|
MXPJ1# HBDX | ¥38,000 | |
| 86741-52080 note |
Transceiver, Telematics
2022-10 → 2024-01
ended
|
MXPB1# | ¥39,500 | |
| 86741-52080 note |
Transceiver, Telematics
2022-10 → 2024-01
ended
|
MXPB1# X | ¥39,500 | |
| 86741-28030 |
Transceiver, Telematics
2024-01 → —
|
MXPB1#,MXPJ1# | ¥34,500 | |
| 86742 — Cover, Transceiver | ||||
| 86742-26010 |
Cover, Transceiver
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥720 | |
| 86742-26010 note |
Cover, Transceiver
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥720 | |
| 86742-26010 |
Cover, Transceiver
2024-01 → —
|
MXPB1#,MXPJ1# | ¥720 | |
| 867E1 — Box, Communication Telematics | ||||
| 867E1-33020 |
Box, Communication Telematics
2024-01 → 2025-03
ended
|
MXPB1#,MXPJ1# HBDX,X | ¥4,830 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
