Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

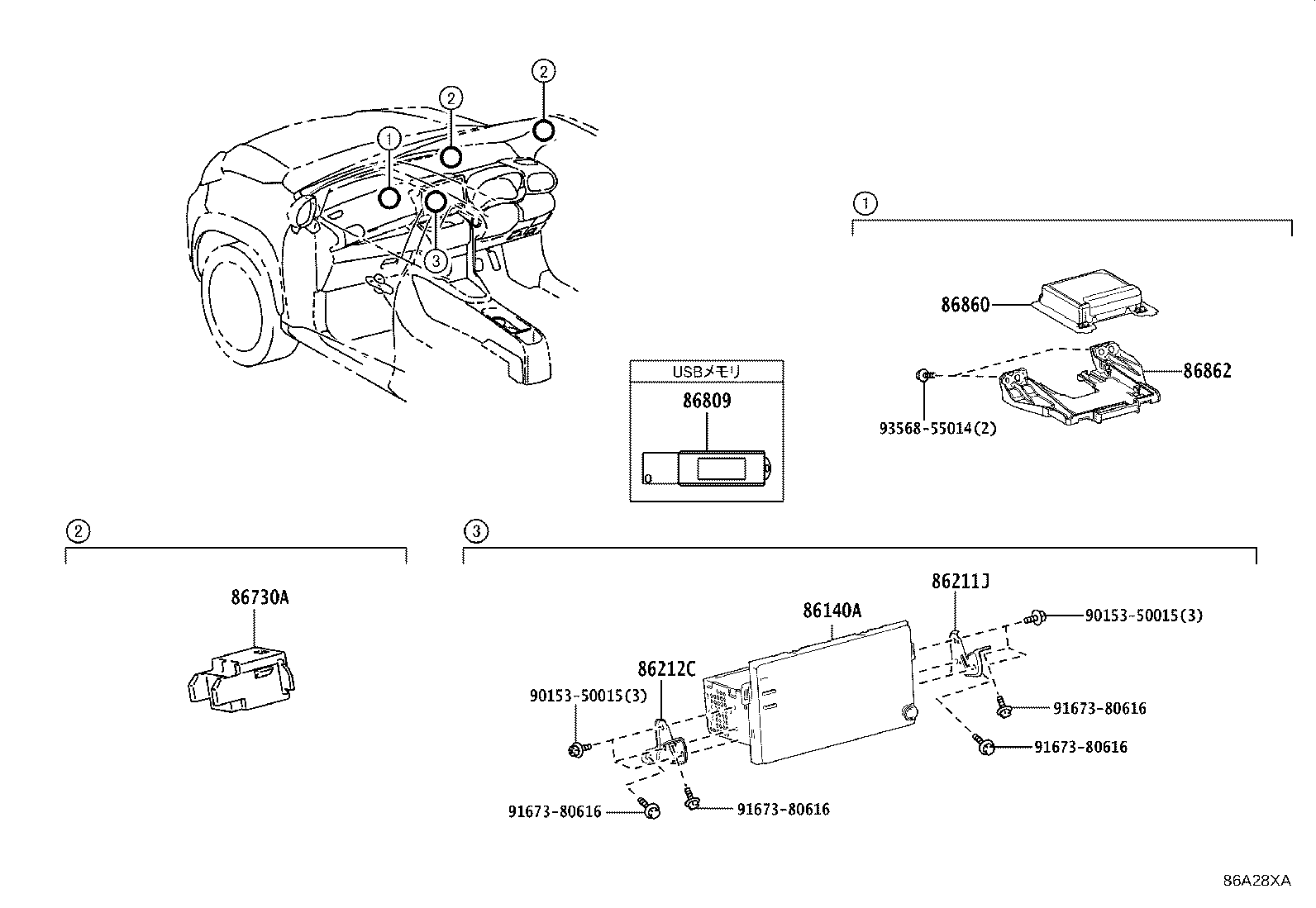

Exploded illustration 86A28XA 86140A — RECEIVER ASSY, RADIO & DISPLAY (19 parts) 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 9015350015 — not listed in this catalogue 9015350015 — not listed in this catalogue 86211J — BRACKET, RADIO RECEIVER, NO.1 (5 parts) 86212C — BRACKET, RADIO RECEIVER, NO.2 (5 parts) 86730A — MICROPHONE ASSY, TELEPHONE (5 parts) 86860 — ANTENNA ASSY, NAVIGATION (3 parts) 86862 — BRACKET, NAVIGATION ANTENNA (3 parts) 9356855014 — not listed in this catalogue 86809 — USB SET, USB MEMORY NAVIGATION DATA (3 parts)
86A28XA · 7 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
86140A — Receiver Assy, Radio & Display
86140-52510 note Receiver Assy, Radio & Display
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥127,000
86140-52510 note Receiver Assy, Radio & Display
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥127,000
86140-52520 note Receiver Assy, Radio & Display
2020-08 → 2022-08 ended
MXPJ1# HBDX ¥127,000
86140-52530 note Receiver Assy, Radio & Display
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥149,000
86140-52540 note Receiver Assy, Radio & Display
2020-08 → 2024-01 ended
MXPJ1# GRS,HBDG,HBDZ ¥149,000
86140-52650 note Receiver Assy, Radio & Display
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥127,000
86140-52650 note Receiver Assy, Radio & Display
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥127,000
86140-52660 note Receiver Assy, Radio & Display
2020-08 → 2022-08 ended
MXPJ1# HBDX ¥127,000
86140-52670 note Receiver Assy, Radio & Display
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥149,000
86140-52680 note Receiver Assy, Radio & Display
2020-08 → 2024-01 ended
MXPJ1# GRS,HBDG,HBDZ ¥149,000
86100-52400 note Receiver Assy, Radio & Display
2024-01 → 2024-09 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥189,000
86100-52401 note Receiver Assy, Radio & Display
2024-10 → 2025-02 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥171,000
86140-52B40 note Receiver Assy, Radio & Display
2024-01 → 2024-09 ended
MXPB1#,MXPJ1# ¥154,000
86140-52B41 note Receiver Assy, Radio & Display
2024-10 → 2025-02 ended
MXPB1#,MXPJ1# ¥140,000
86140-52B50 note Receiver Assy, Radio & Display
2024-01 → 2024-09 ended
MXPB1#,MXPJ1# HBDX,X ¥154,000
86140-52B50 note Receiver Assy, Radio & Display
2024-01 → 2024-09 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥154,000
86140-52B51 note Receiver Assy, Radio & Display
2024-10 → 2025-02 ended
MXPB1#,MXPJ1# GRS,HBDZ,Z ¥140,000
86140-52B51 note Receiver Assy, Radio & Display
2024-10 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥140,000
86140-52B51 note Receiver Assy, Radio & Display
2024-10 → —
MXPB1#,MXPJ1# G,HBDG,U ¥140,000
86211J — Bracket, Radio Receiver, NO.1
86211-K0010 Bracket, Radio Receiver, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥280
86211-K0010 note Bracket, Radio Receiver, NO.1
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥280
86211-52440 note Bracket, Radio Receiver, NO.1
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥300
86211-52440 Bracket, Radio Receiver, NO.1
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥300
86211-52440 note Bracket, Radio Receiver, NO.1
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥300
86212C — Bracket, Radio Receiver, NO.2
86212-K0010 Bracket, Radio Receiver, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥280
86212-K0010 note Bracket, Radio Receiver, NO.2
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥280
86212-52440 note Bracket, Radio Receiver, NO.2
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥300
86212-52440 note Bracket, Radio Receiver, NO.2
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥300
86212-52440 Bracket, Radio Receiver, NO.2
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥300
86730A — Microphone Assy, Telephone
86730-75010 Microphone Assy, Telephone
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥7,100
86730-16010 Microphone Assy, Telephone
2024-01 → —
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,U,Z ¥6,400
86730-16010 note Microphone Assy, Telephone
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥6,400
86730-16010 note Microphone Assy, Telephone
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥6,400
86730-16010 Microphone Assy, Telephone
2024-01 → 2025-02 ended
MXPB1#,MXPJ1# HBDX,X ¥6,400
86809 — Usb Set, Usb Memory Navigation Data
86809-78012 note Usb Set, Usb Memory Navigation Data
2024-01 → 2024-05 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥27,600
86809-78013 note Usb Set, Usb Memory Navigation Data
2024-06 → 2024-10 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥27,600
86809-78014 note Usb Set, Usb Memory Navigation Data
2024-11 → 2025-02 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥27,600
86860 — Antenna Assy, Navigation
86880-52010 Antenna Assy, Navigation
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥5,200
86880-52010 note Antenna Assy, Navigation
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥5,200
86880-52040 Antenna Assy, Navigation
2024-01 → —
MXPB1#,MXPJ1# ¥4,660
86862 — Bracket, Navigation Antenna
86862-K0010 Bracket, Navigation Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# ¥1,160
86862-K0010 note Bracket, Navigation Antenna
2020-08 → 2024-01 ended
MXPB1#,MXPJ1# HBDX,X ¥1,160
86862-K0010 Bracket, Navigation Antenna
2024-01 → —
MXPB1#,MXPJ1# ¥1,160
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
