Toyota Yaris Cross

2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

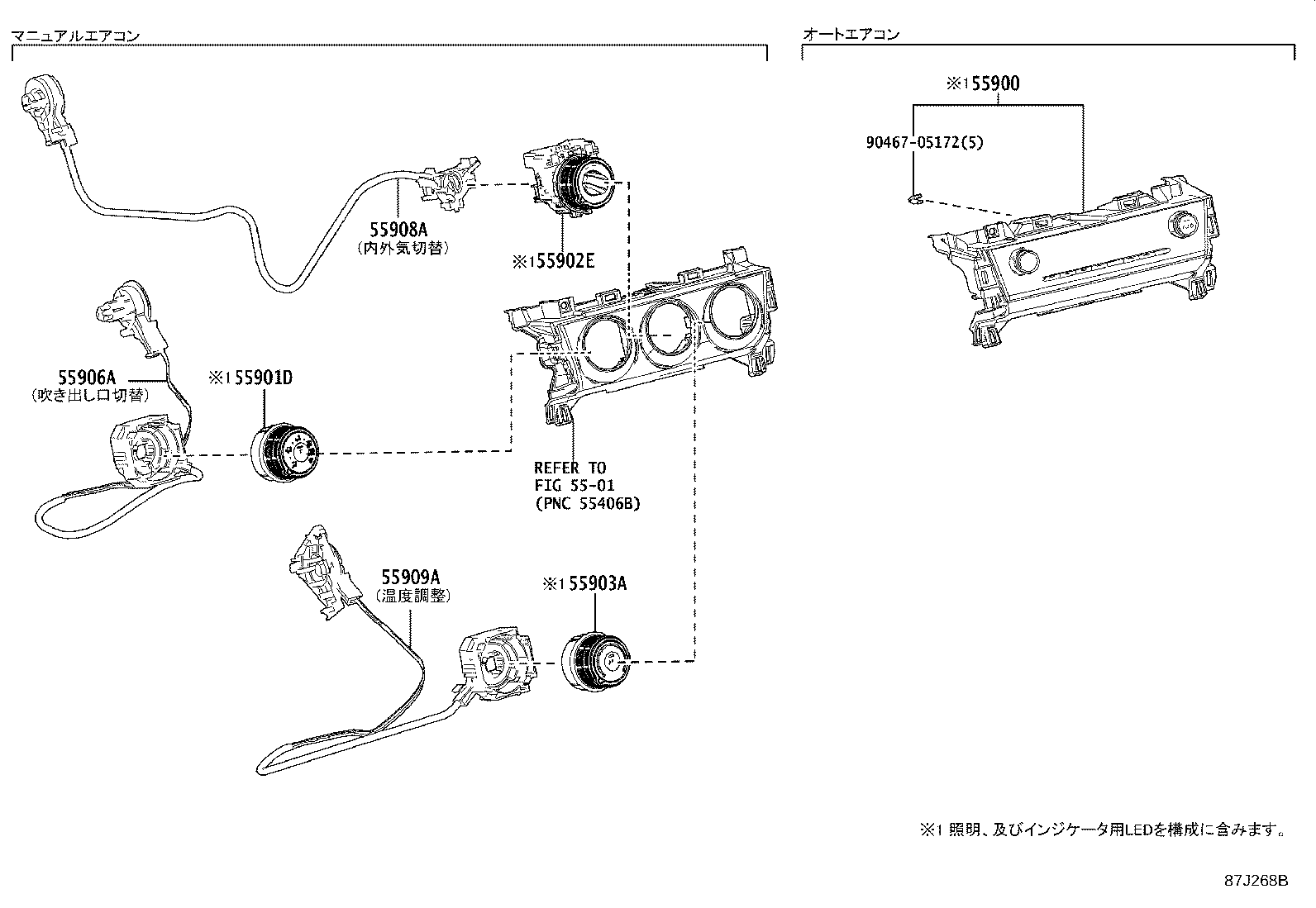

Exploded illustration 87J268B 9046705172 — not listed in this catalogue 55900 — CONTROL ASSY, AIR CONDITIONER (50 parts) 55901D — CONTROL SUB-ASSY, HEATER, NO.1 (2 parts) 55902E — CONTROL SUB-ASSY, HEATER, NO.2 (2 parts) 55903A — CONTROL SUB-ASSY, HEATER, NO.3 (2 parts) 5501 — not listed in this catalogue 55908A — CABLE SUB-ASSY, AIR INLET DAMPER CONTROL (2 parts) 55906A — CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL (2 parts) 55909A — CABLE SUB-ASSY, AIRMIX DAMPER CONTROL (2 parts)
87J268B · 7 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
62 parts on this figure
Part number Description Fitment Price
55900 — Control Assy, Air Conditioner
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDG,HBDZ ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDG,HBDZ ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDG,HBDZ ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDG,HBDZ ¥21,700
55900-52B40 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPJ1# GRS,HBDG,HBDZ ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPJ1# GRS,HBDG,HBDZ ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPJ1# GRS,HBDG,HBDZ ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPJ1# GRS,HBDG,HBDZ ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥21,700
55900-52B41 note Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥21,700
55900-52B50 note Control Assy, Air Conditioner
2020-08 → 2022-10 ended
MXPJ1# HBDX ¥21,200
55900-52B50 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDX ¥21,200
55900-52B50 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDX ¥21,200
55900-52B50 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDX ¥21,200
55900-52B50 note Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDX ¥21,200
55900-52B51 note Control Assy, Air Conditioner
2022-10 → 2024-01 ended
MXPJ1# HBDX —
55900-52B70 Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥21,700
55900-52B71 Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPB1#,MXPJ1# G,GRS,HBDG,HBDZ,Z ¥21,700
55900-52B80 Control Assy, Air Conditioner
2020-08 → 2022-08 ended
MXPJ1# HBDX ¥21,200
55900-52B81 Control Assy, Air Conditioner
2022-08 → 2024-01 ended
MXPJ1# HBDX ¥21,200
55900-52E20 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥20,200
55900-52E20 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥20,200
55900-52E20 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥20,200
55900-52E20 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥20,200
55900-52E20 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥20,200
55900-52E20 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥20,200
55900-52E20 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥20,200
55900-52E20 Control Assy, Air Conditioner
2024-01 → —
MXPB10,MXPJ10 GRS ¥20,200
55900-52E30 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# U ¥19,700
55900-52E30 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# U ¥19,700
55900-52E30 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# U ¥19,700
55900-52E30 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# U ¥19,700
55900-52E30 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# U ¥19,700
55900-52E30 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# U ¥19,700
55900-52E30 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# HBDX,U ¥19,700
55900-52E30 note Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# U ¥19,700
55900-52E40 Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPB1#,MXPJ1# G,HBDG,HBDZ,Z ¥20,200
55900-52E50 Control Assy, Air Conditioner
2024-01 → 2025-03 ended
MXPJ1# HBDX,U ¥19,700
55901D — Control Sub-assy, Heater, NO.1
55901-K0030 Control Sub-assy, Heater, NO.1
2020-08 → 2024-01 ended
MXPB1# X ¥3,150
55901-52430 Control Sub-assy, Heater, NO.1
2024-01 → —
MXPB1# X ¥3,300
55902E — Control Sub-assy, Heater, NO.2
55902-K0030 Control Sub-assy, Heater, NO.2
2020-08 → 2024-01 ended
MXPB1# X ¥3,320
55902-52360 Control Sub-assy, Heater, NO.2
2024-01 → —
MXPB1# X ¥3,160
55903A — Control Sub-assy, Heater, NO.3
55903-12390 Control Sub-assy, Heater, NO.3
2020-08 → 2024-01 ended
MXPB1# X ¥3,310
55903-12380 Control Sub-assy, Heater, NO.3
2024-01 → —
MXPB1# X —
55906A — Cable Sub-assy, Defroster Damper Control
55906-K0011 Cable Sub-assy, Defroster Damper Control
2020-08 → 2024-01 ended
MXPB1# X ¥1,250
55906-K0011 Cable Sub-assy, Defroster Damper Control
2024-01 → —
MXPB1# X ¥1,250
55908A — Cable Sub-assy, Air Inlet Damper Control
55908-K0010 Cable Sub-assy, Air Inlet Damper Control
2020-08 → 2024-01 ended
MXPB1# X ¥1,250
55908-K0010 Cable Sub-assy, Air Inlet Damper Control
2024-01 → —
MXPB1# X ¥1,250
55909A — Cable Sub-assy, Airmix Damper Control
55909-K0011 Cable Sub-assy, Airmix Damper Control
2020-08 → 2024-01 ended
MXPB1# X ¥1,350
55909-K0011 Cable Sub-assy, Airmix Damper Control
2024-01 → —
MXPB1# X ¥1,350
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
