Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01

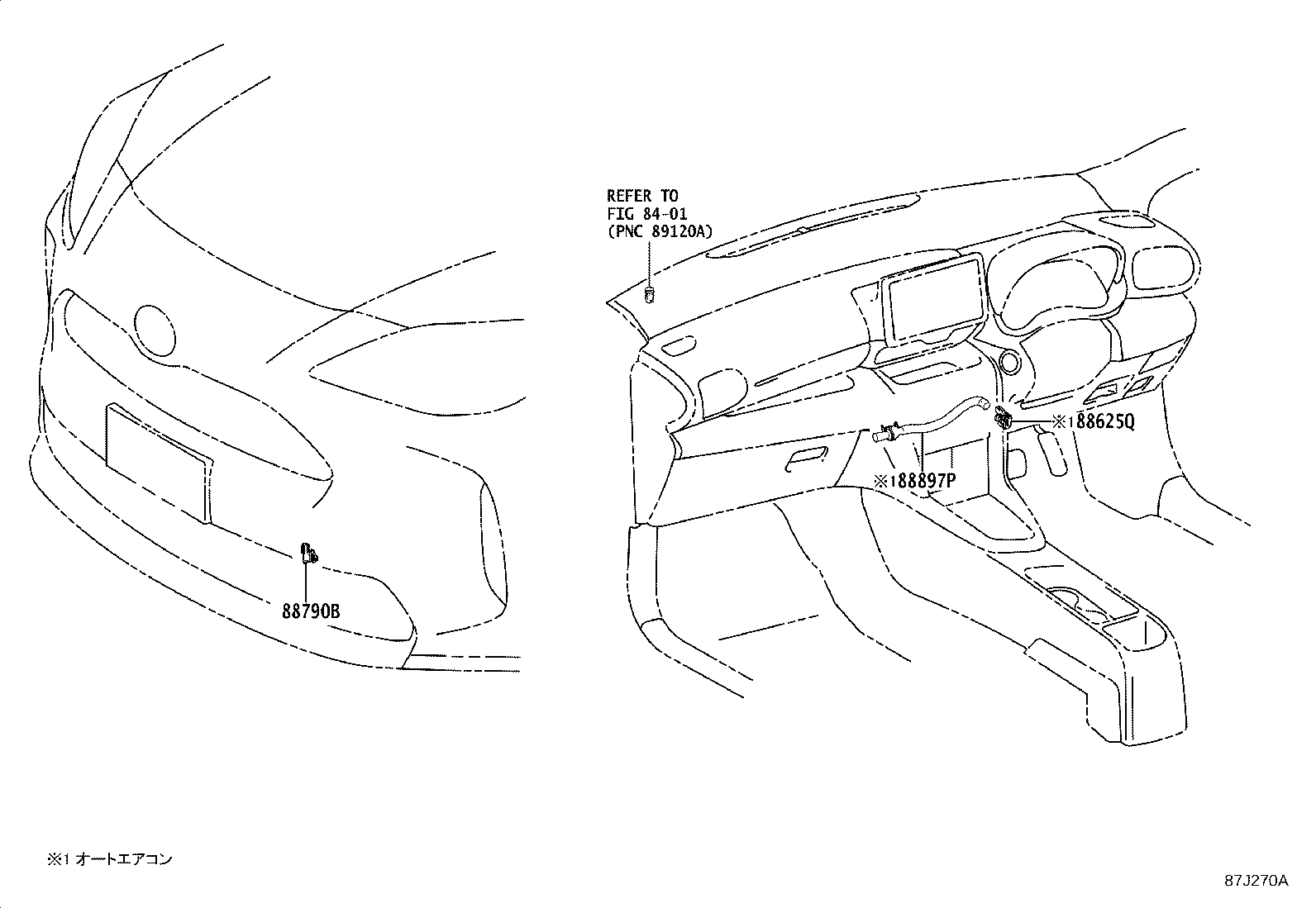

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,HBDZ,Z | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,HBDZ,U,Z | — | |
| 88790B — Thermistor Assy | ||||
| 88790-28100 |
Thermistor Assy
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# | ¥0 | |
| 88790-28100 |
Thermistor Assy
2024-01 → —
|
MXPB1#,MXPJ1# | ¥0 | |
| 88897P — Aspirator | ||||
| 88505-K0030 |
Aspirator
2020-08 → 2024-01
ended
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,HBDZ,Z | — | |
| 88505-K0030 |
Aspirator
2024-01 → —
|
MXPB1#,MXPJ1# G,GRS,HBDG,HBDX,HBDZ,U,Z | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
