Toyota Yaris Cross
2020-08 → present · chassis MXPB1#,MXPJ1# · catalogue 541110 · Japan
Supported model
Data version 2024-01
Rear Seat & Seat Track
53 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58441Q | Cover, Battery Service Hole, RH |
| 58441R | Cover, Battery Service Hole, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71033 | Leg Sub-assy, Rear Seat Cushion |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71087 | Board Sub-assy, Rear Seatback |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71305S | Frame Sub-assy, Center Seatback |
| 71349E | Cover, Rear Seatback Hinge |
| 71403 | Leg Sub-assy, Rear NO.1 Seat |
| 71439A | Clip |
| 71452B | Bracket, Rear Seatback |

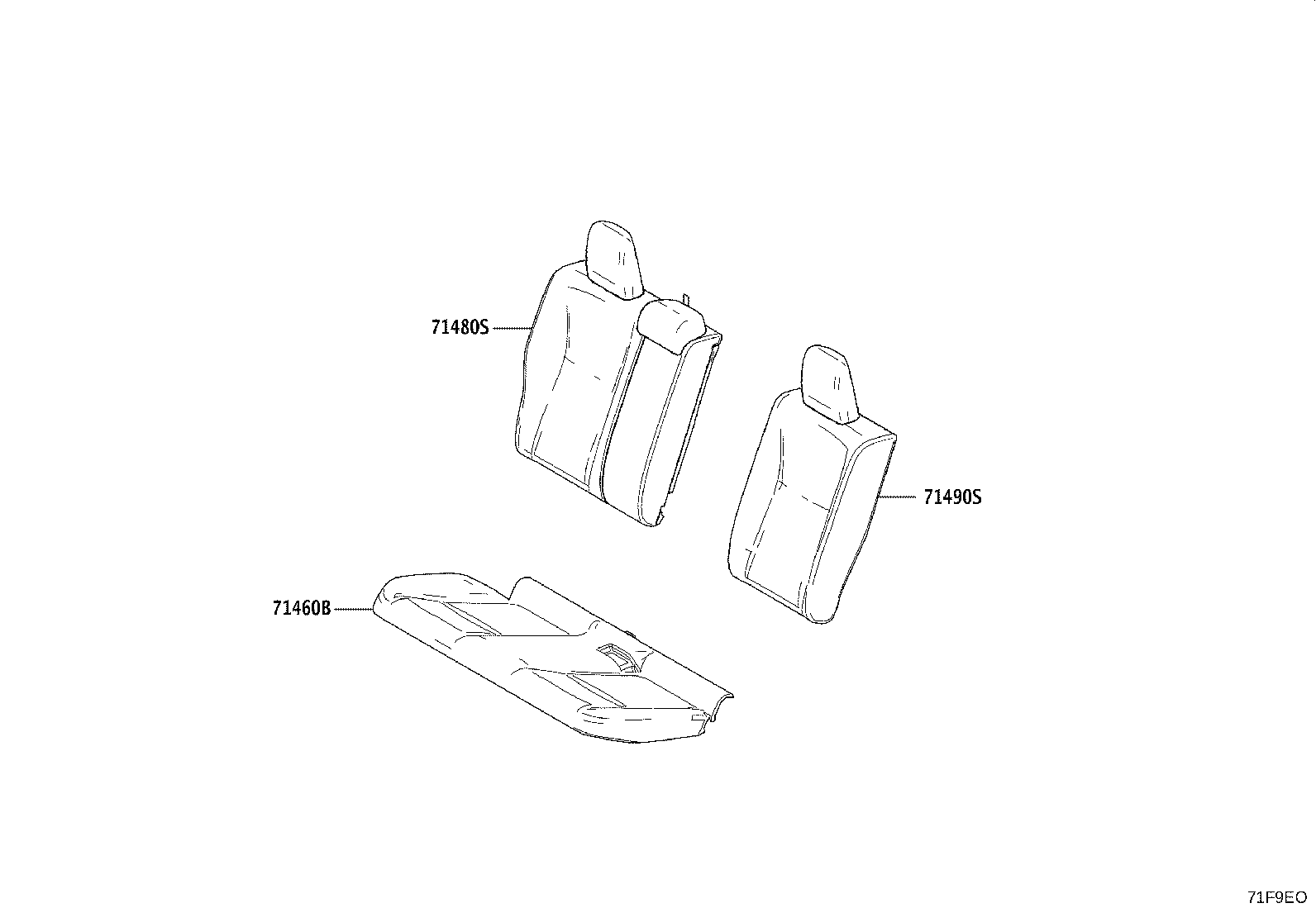

| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71503A | Pad Sub-assy, Rear Seat Cushion |
| 71601A | Pad Sub-assy, Rear Seat Cushion W/Cover |
| 71603D | Pad Sub-assy, Rear Seatback W/Cover, RH |
| 71604D | Pad Sub-assy, Rear Seatback W/Cover, LH |
| 71611 | Pad, Rear Seat Cushion |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71667C | Pad, Rear NO.1 Seatback, Center |
| 71701C | Board Sub-assy, Rear Seatback, RH |
| 71702B | Board Sub-assy, Rear Seatback, LH |
| 71769A | Clip, Rear Seatback Board |
| 71875C | Cover, Reclining Adjuster Inside, RH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72087A | Cover Sub-assy, Rear Seat Center Armrest |
| 72620 | Lock Assy, Rear Seatback |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72635B | Hook, Rear Seatback Lock(MALE) |
| 72635C | Hook, Rear Seatback Lock(FEMALE) |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72665B | Cover, Rear Seatback Lock |
| 72667 | Bezel, Rear Seatback Lock, Upper |
| 72690A | Strap Assy, Rear Seat Lock Release |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72927B | Cover, Rear Seat Cushion Under |
| 73705C | Bracket Sub-assy, Child Restraint Seat Anchor |
| 76971F | Cover, Rear Under |
| 76973E | Cover, Rear Under Side, RH |
| 76974E | Cover, Rear Under Side, LH |
| 79157 | Cover, NO.1 Seatback |
| 88922A | Filter, Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
