Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543110 · Japan
Supported model
Data version 2023-11

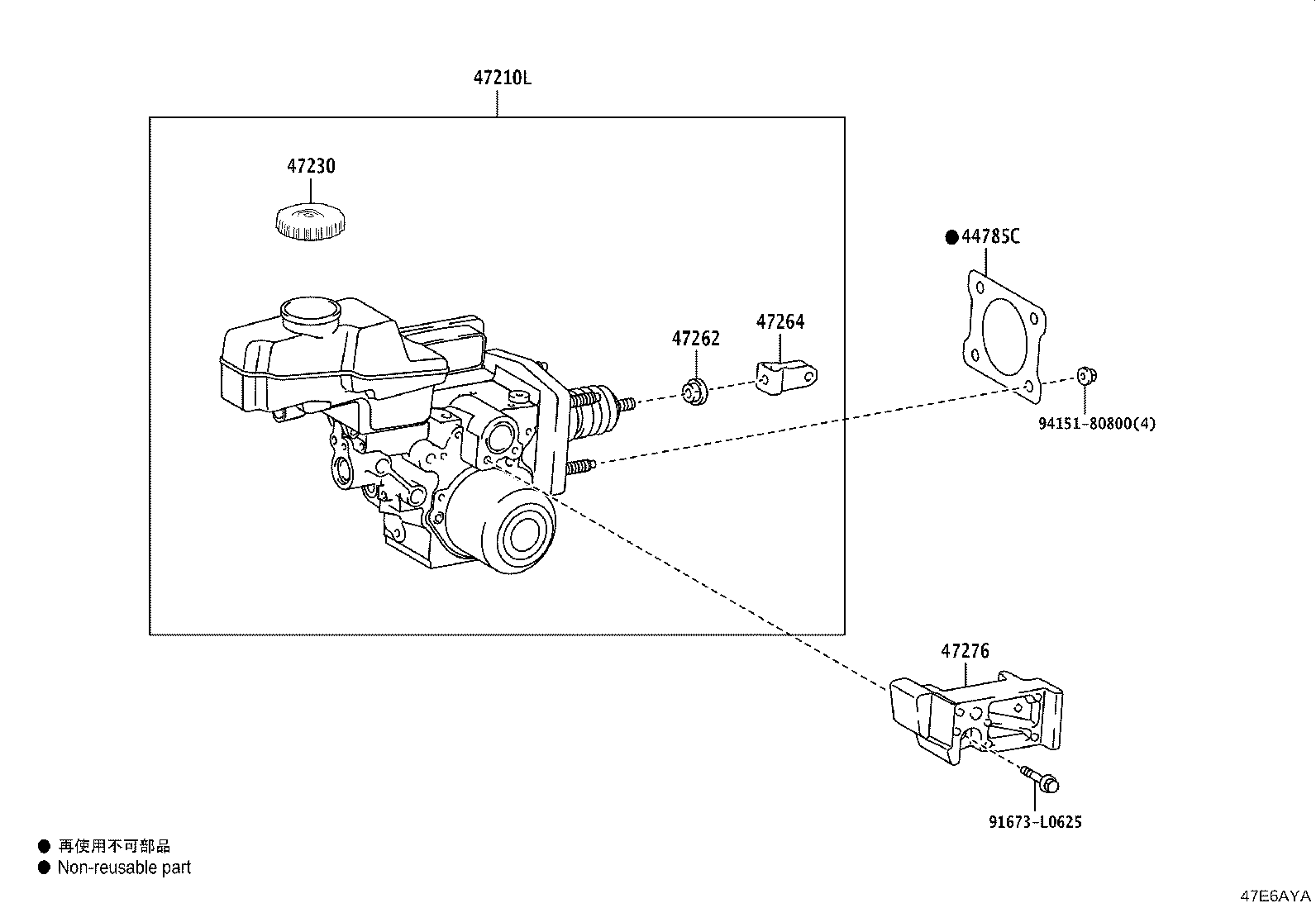

Brake Master Cylinder
6 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 44785C | Gasket, Brake Booster |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47262 | Nut, Master Cylinder Push Rod |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47276 | Bracket, Brake Master Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
