Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543110 · Japan
Supported model
Data version 2023-11

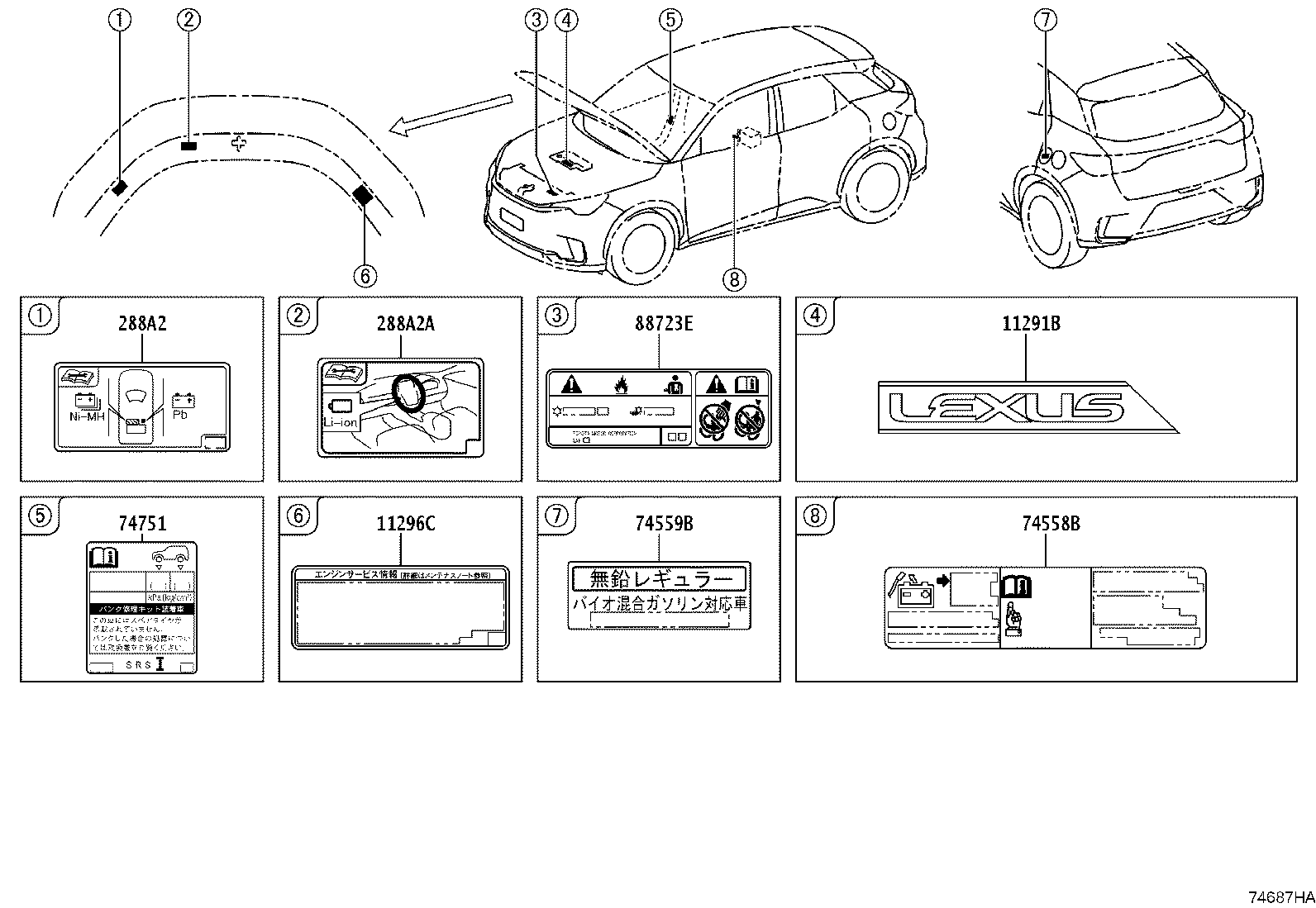

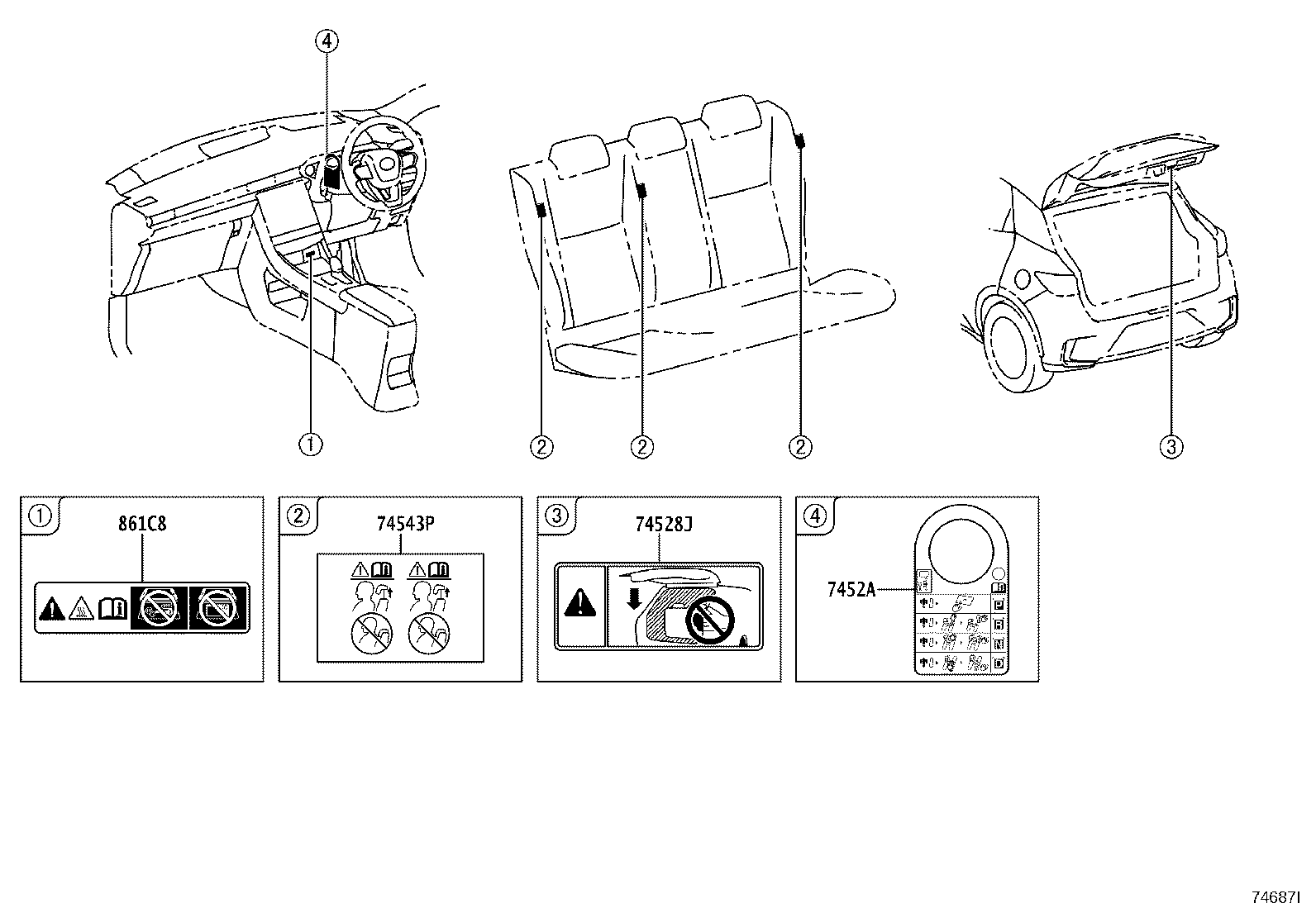

Caution Plate (EXTERIOR & INTERIOR)
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11291B | Plate, Engine Name |
| 11296C | Label, Engine Service Information |
| 288A2 | Label, Battery Location |
| 288A2A | Label, Battery Location, NO.2 |
| 74528J | Label, Power Back Door Caution |
| 7452A | Label, Shift Control Information |
| 74543P | Label, Rear Seat Caution |
| 74558B | Label, Battery Inspection Information |
| 74559B | Label, Fuel Information |
| 74751 | Label, Tire Pressure Information |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
