Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

5 part groups · 2 illustrations

Illustrations

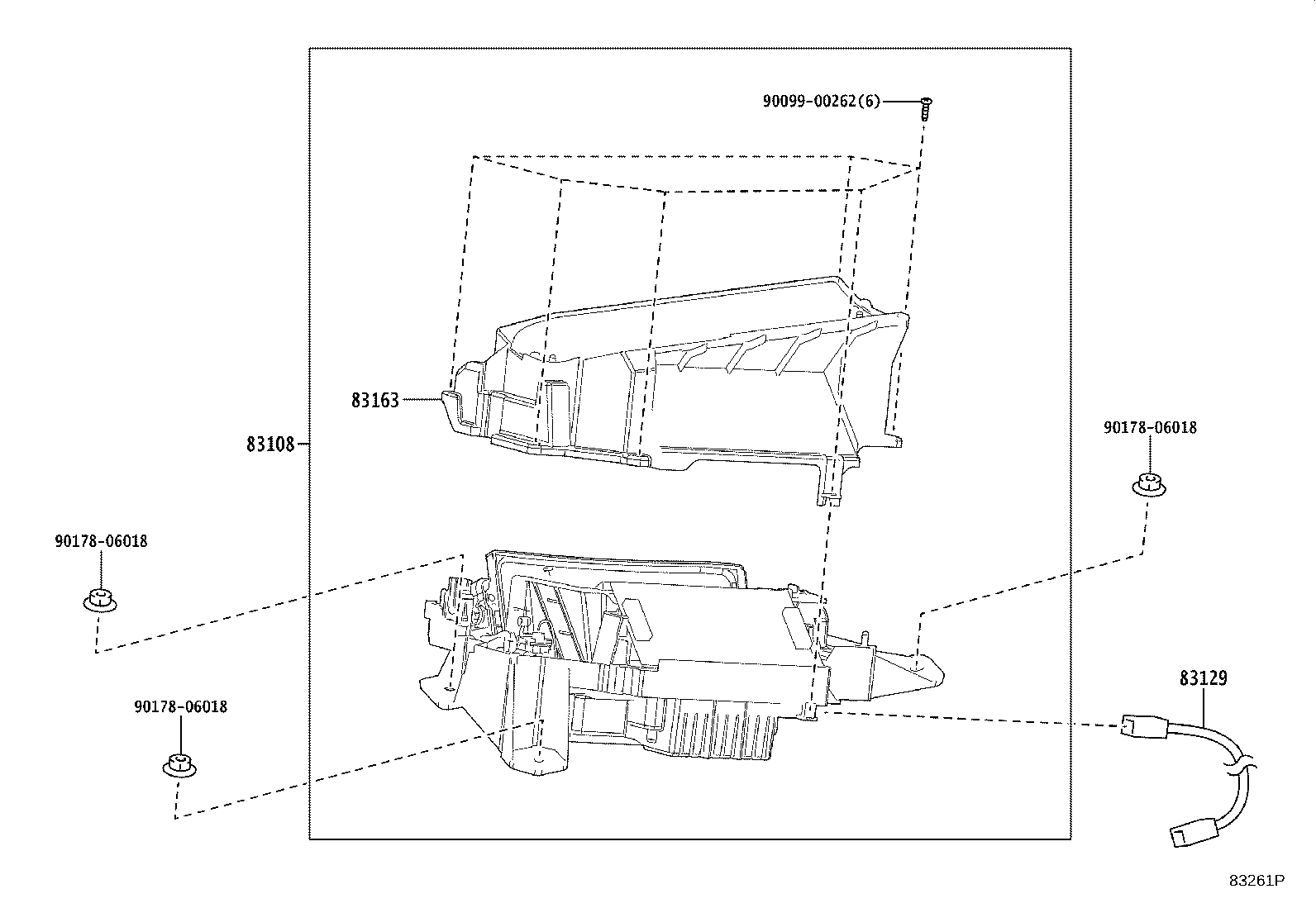

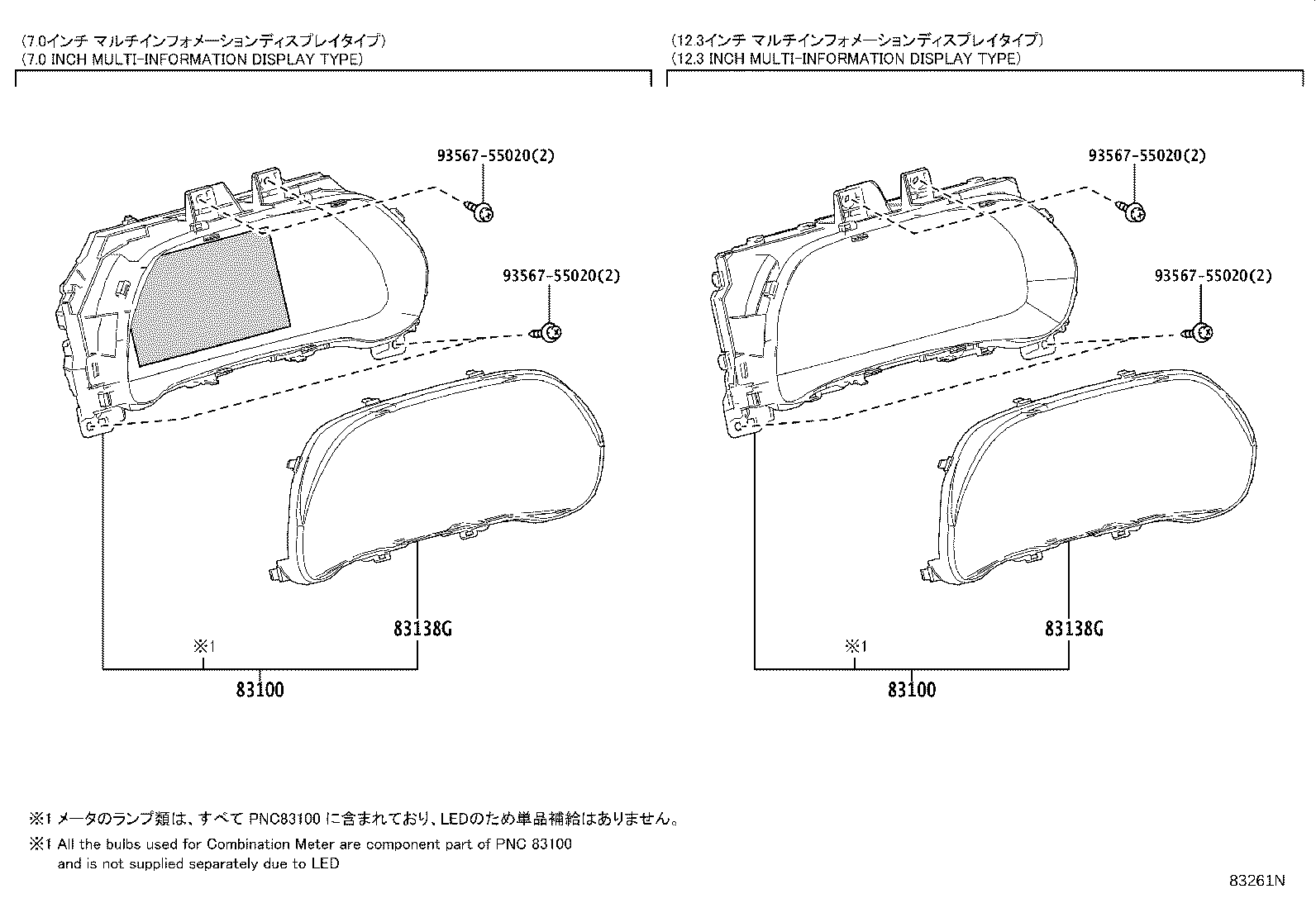

Figure 83261N 83261N 2023-12 → — Figure 83261P 83261P 2023-12 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83108 Mirror Sub-assy, Meter
83129 Wire, Meter
83138G Glass, Combination Meter
83163 Plate, Combination Meter Mirror, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
