Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Height Control

1 part groups · 2 illustrations

Illustrations

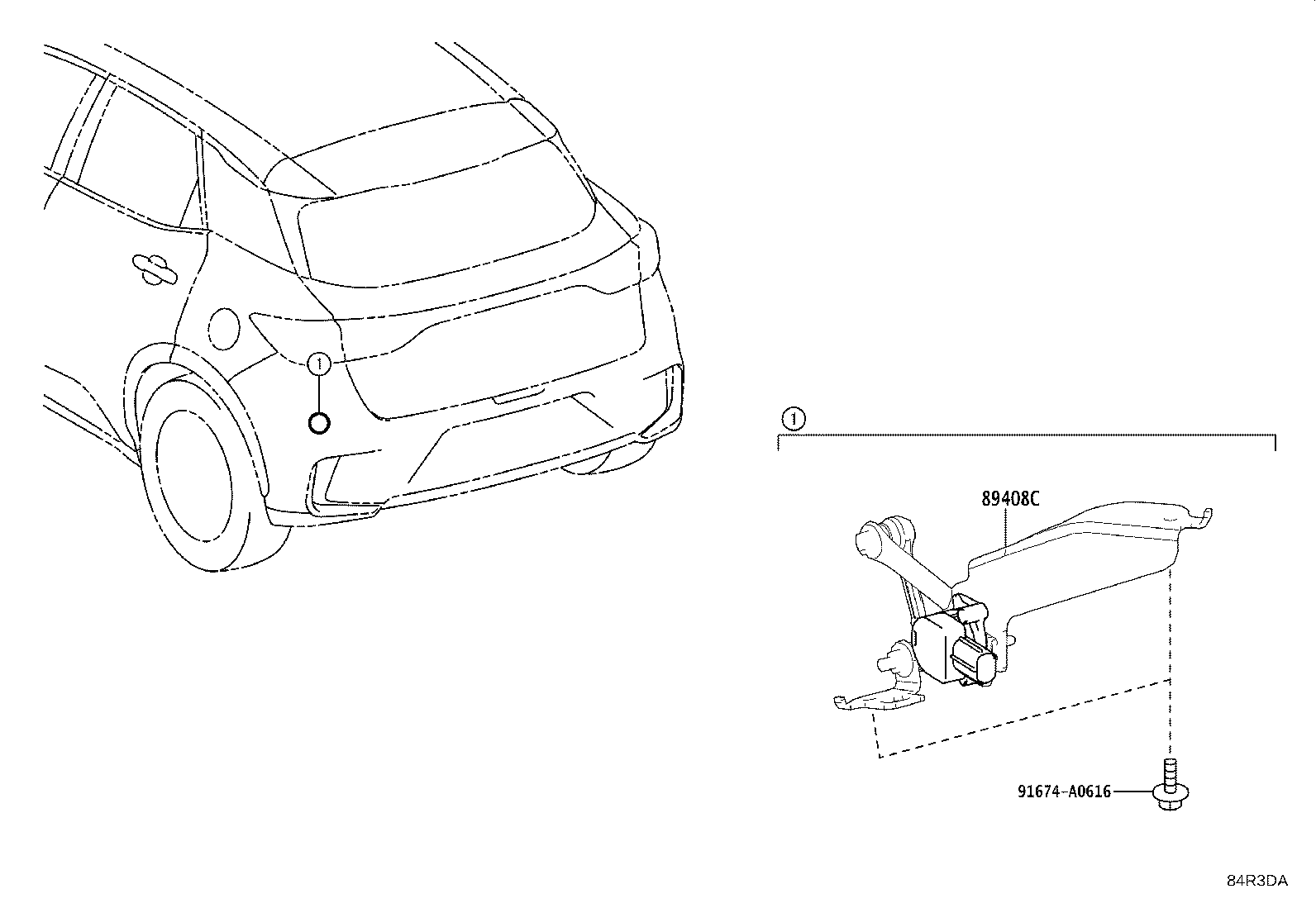

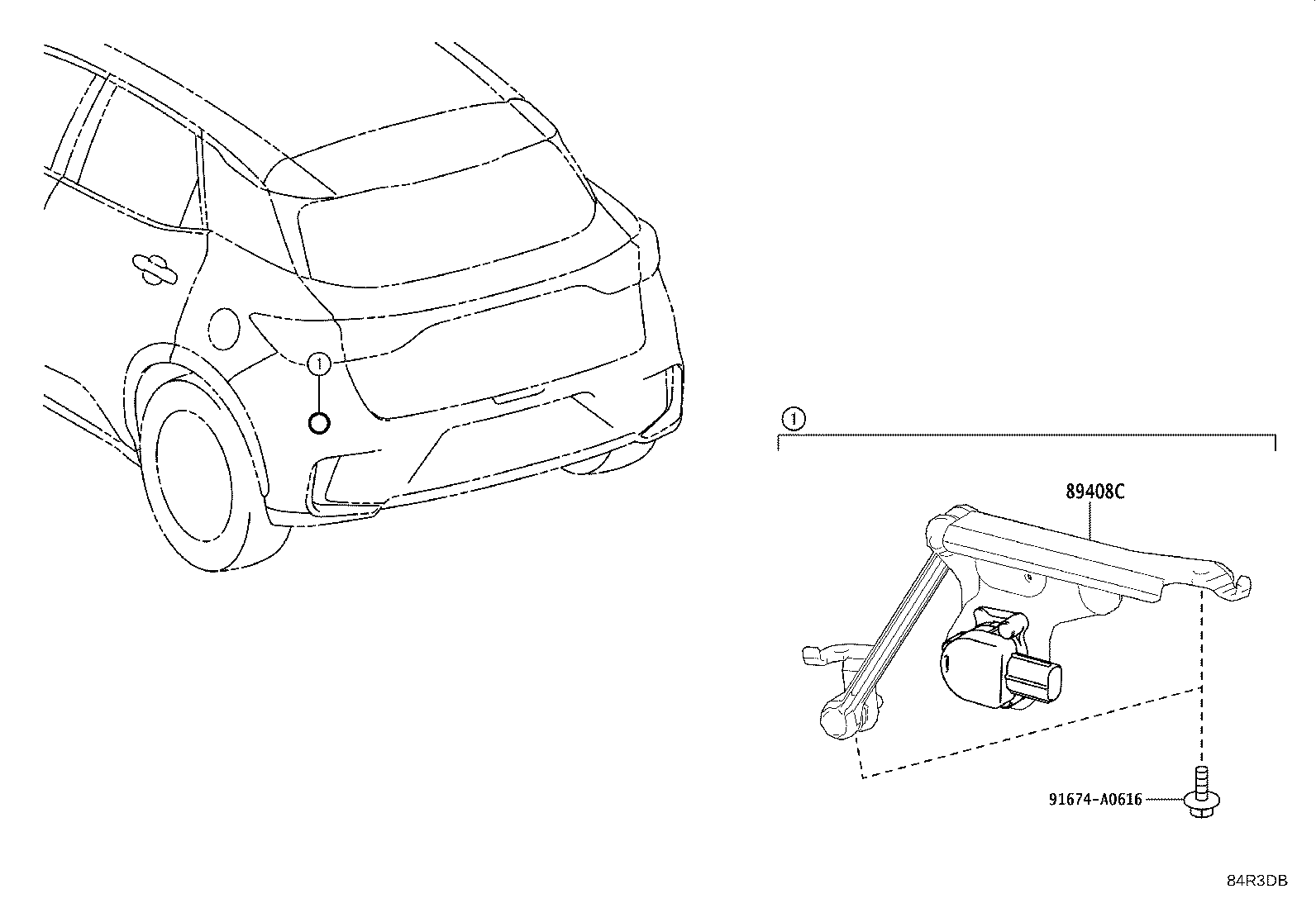

Figure 84R3DA 84R3DA 2023-12 → — Figure 84R3DB 84R3DB 2023-12 → —

Part groups

PNCDescription
89408C Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
