Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543110 · Japan
Supported model
Data version 2023-11
Antenna
10 part groups · 1 illustrations

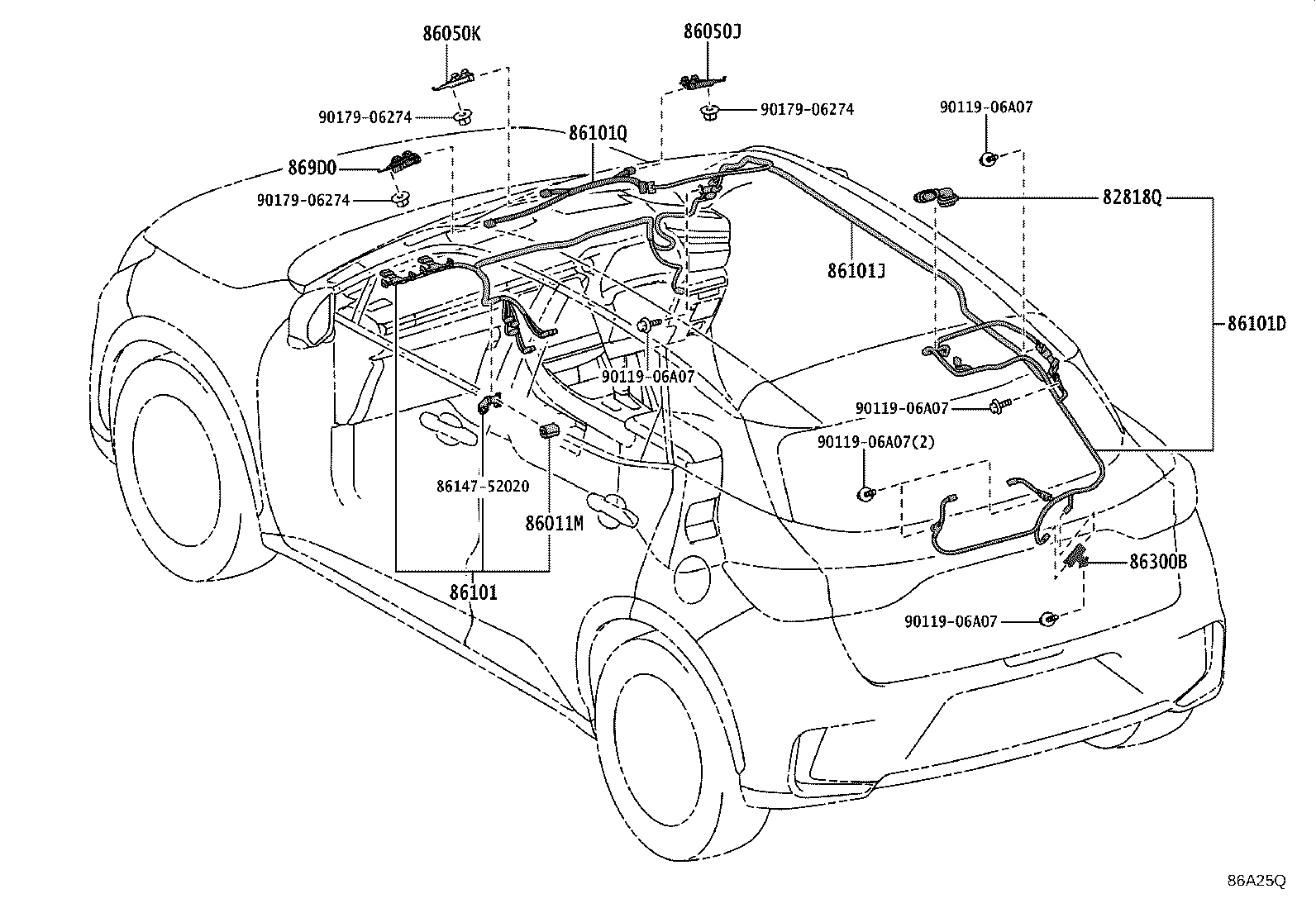

Illustrations
Part groups
| PNC | Description |
|---|---|
| 82818Q | Protector, Wiring Harness, NO.1 |
| 86011M | Filter, Noise |
| 86050J | Antenna Assy, Television, NO.2 RH |
| 86050K | Antenna Assy, Television, NO.2 LH |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 869D0 | Antenna Assy, Its Communication |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
