Toyota Lexus Lbx
2024-08 → present · chassis GAYA1# · catalogue 544110 · Japan
Supported model
Data version 2024-08

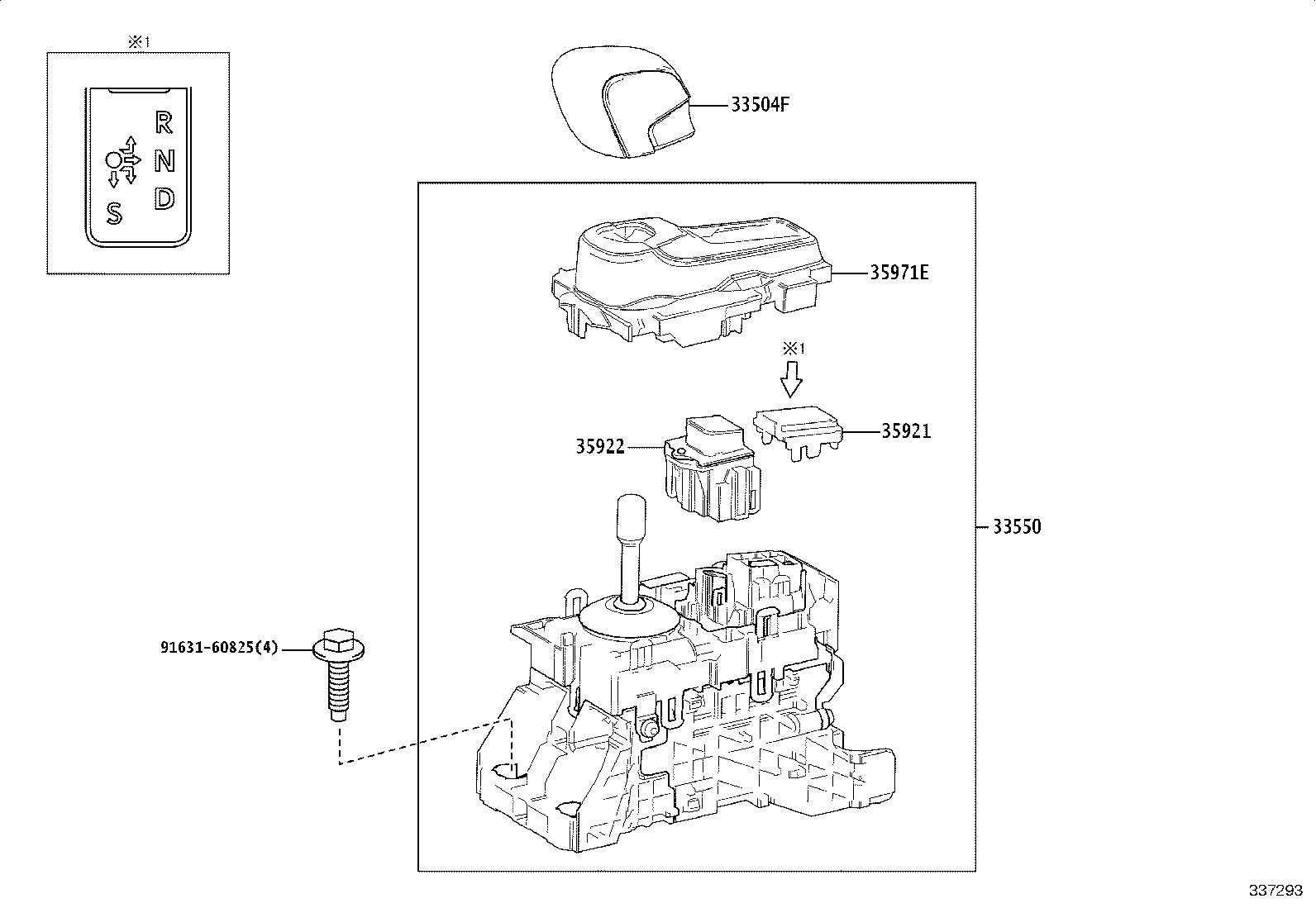

Shift Lever & Retainer
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33261D | Bush (FOR SHIFT & SELECT LEVER) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33534P | Washer, Plate (FOR SELECTING BELLCRANK NO.1) |
| 33550 | Floor Shift Assy, Transmission |
| 33557F | Cover, Control Bellcrank Dust (FOR FLOOR SHIFT) |
| 33590F | Crank Assy, Selecting Bell (FOR FLOOR SHIFT) |
| 335A0 | Bracket Assy, Control Cable |
| 33820B | Cable Assy, Transmission Control |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 35921 | Plate, Control Position Indicator |
| 35922 | Knob, Transmission Parking Switch |
| 35971E | Housing, Position Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
