Toyota Lexus Lbx
2024-08 → present · chassis GAYA1# · catalogue 544110 · Japan
Supported model
Data version 2024-08

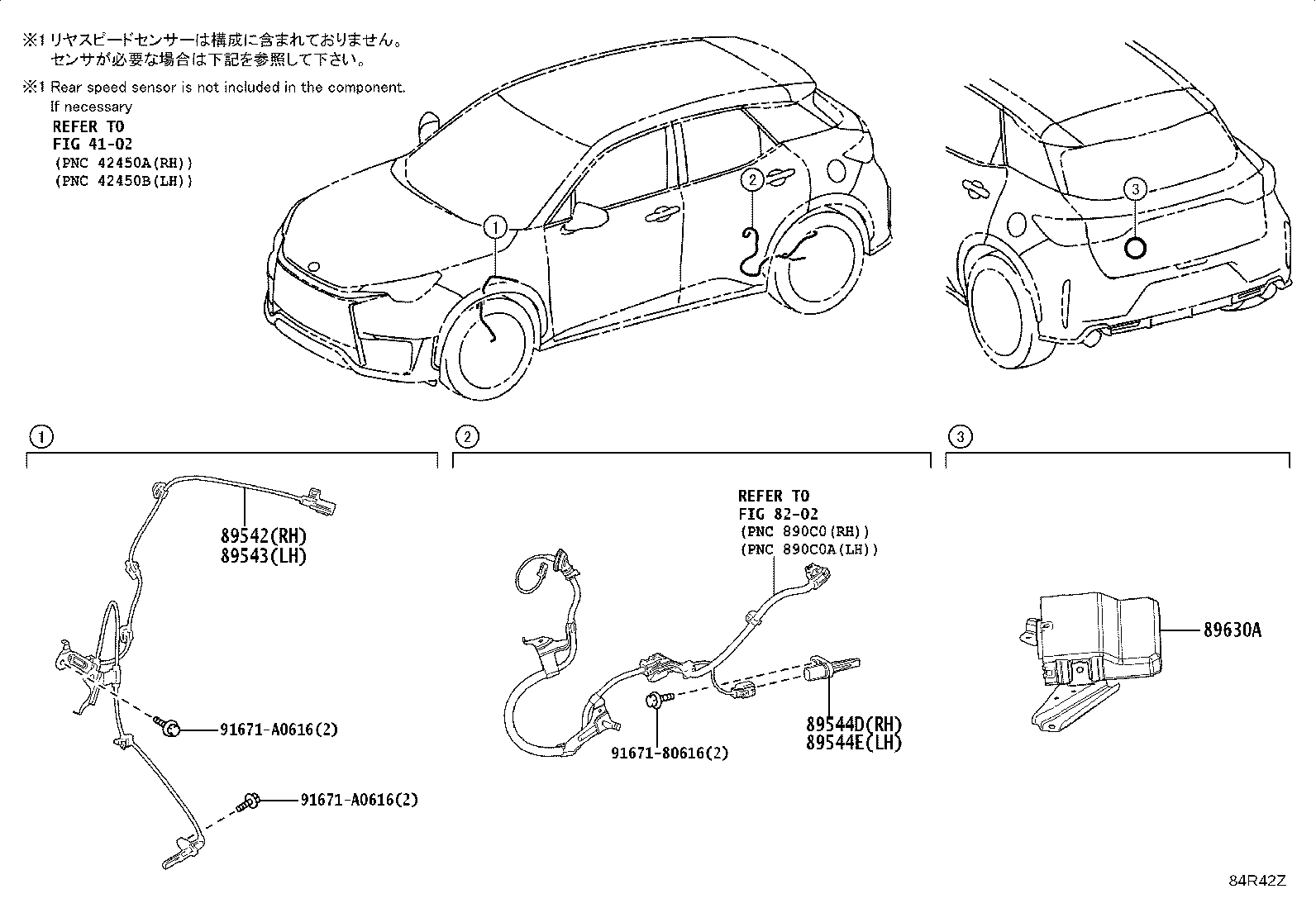

Abs & Vsc
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544D | Sensor, Skid Control, Rear RH |
| 89544E | Sensor, Skid Control, Rear LH |
| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89630A | Computer Assy, 4WD |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
