Toyota Lexus Lbx

2024-08 → present · chassis GAYA1# · catalogue 544110 · Japan

Supported model Data version 2024-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

11 part groups · 2 illustrations

Illustrations

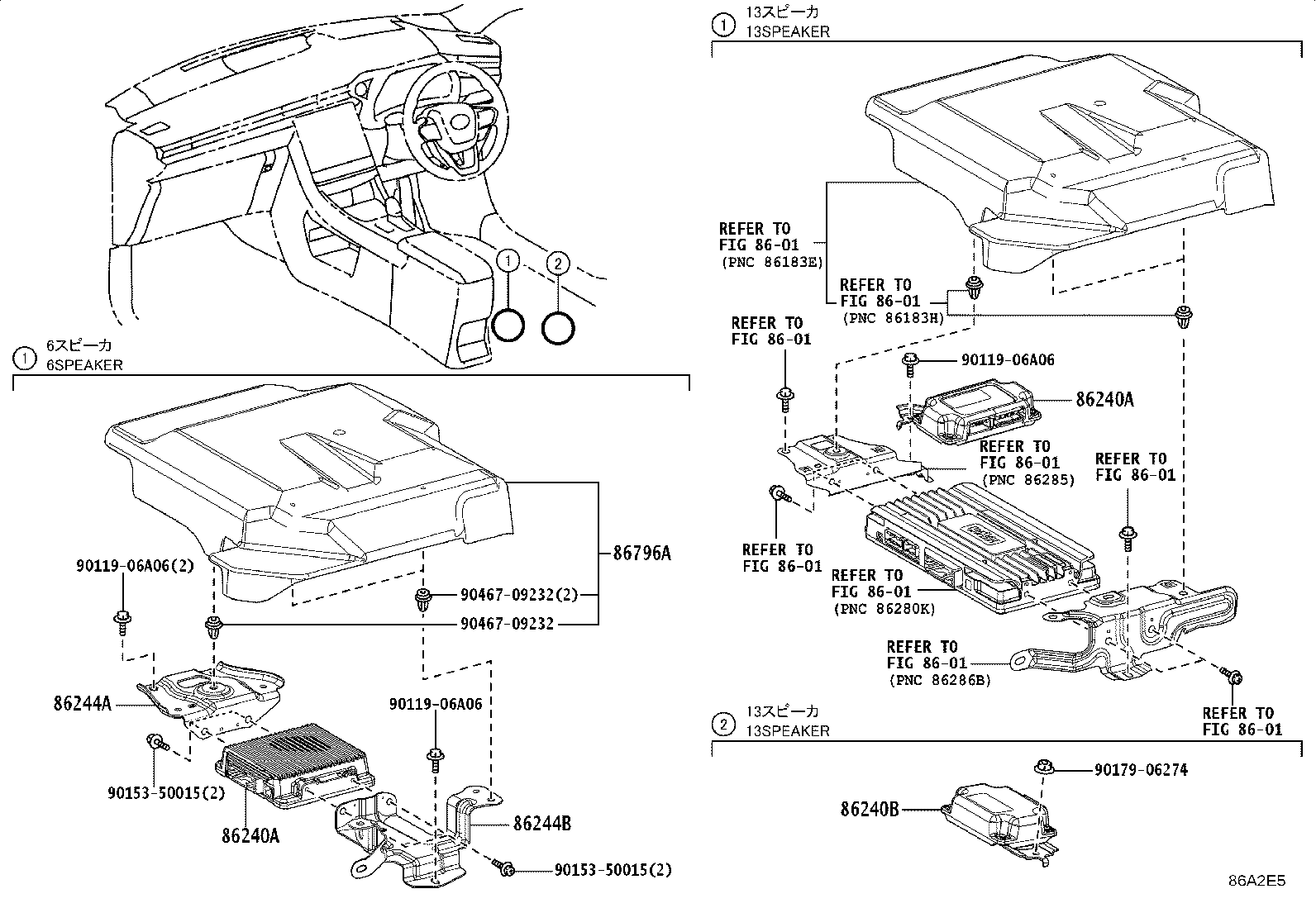

Figure 86A2E4 86A2E4 2024-08 → — Figure 86A2E5 86A2E5 2024-08 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86150H Speaker Assy, W/Bracket
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160P Speaker Assy, Front NO.2
86240A Equalizer Assy,Stereo Component
86240B Equalizer Assy, Stereo Component, NO.2
86244A Bracket, Equalizer Stereo Component, NO.1
86244B Bracket, Equalizer Stereo Component, NO.2
86734D Microphone, Active Noise Control
86796A Cover, Equalizer Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
