Toyota Corolla Cross

2021-08 → present · chassis ZSG10,ZVG1#,MXGA10 · catalogue 553110 · Japan

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

Figure 11H64Z

11H64Z 2023-10 → —

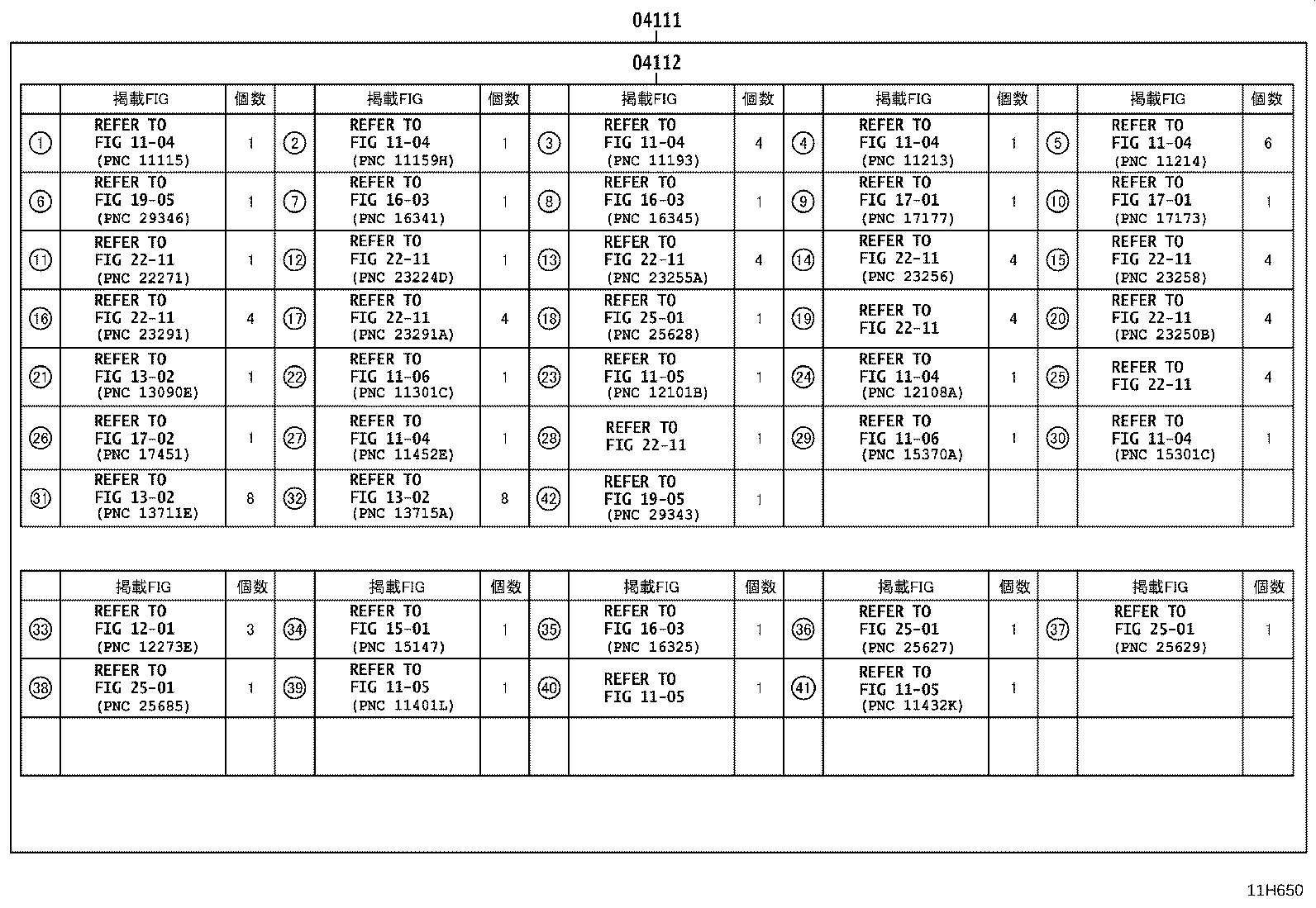

Figure 11H650

11H650 2023-10 → —

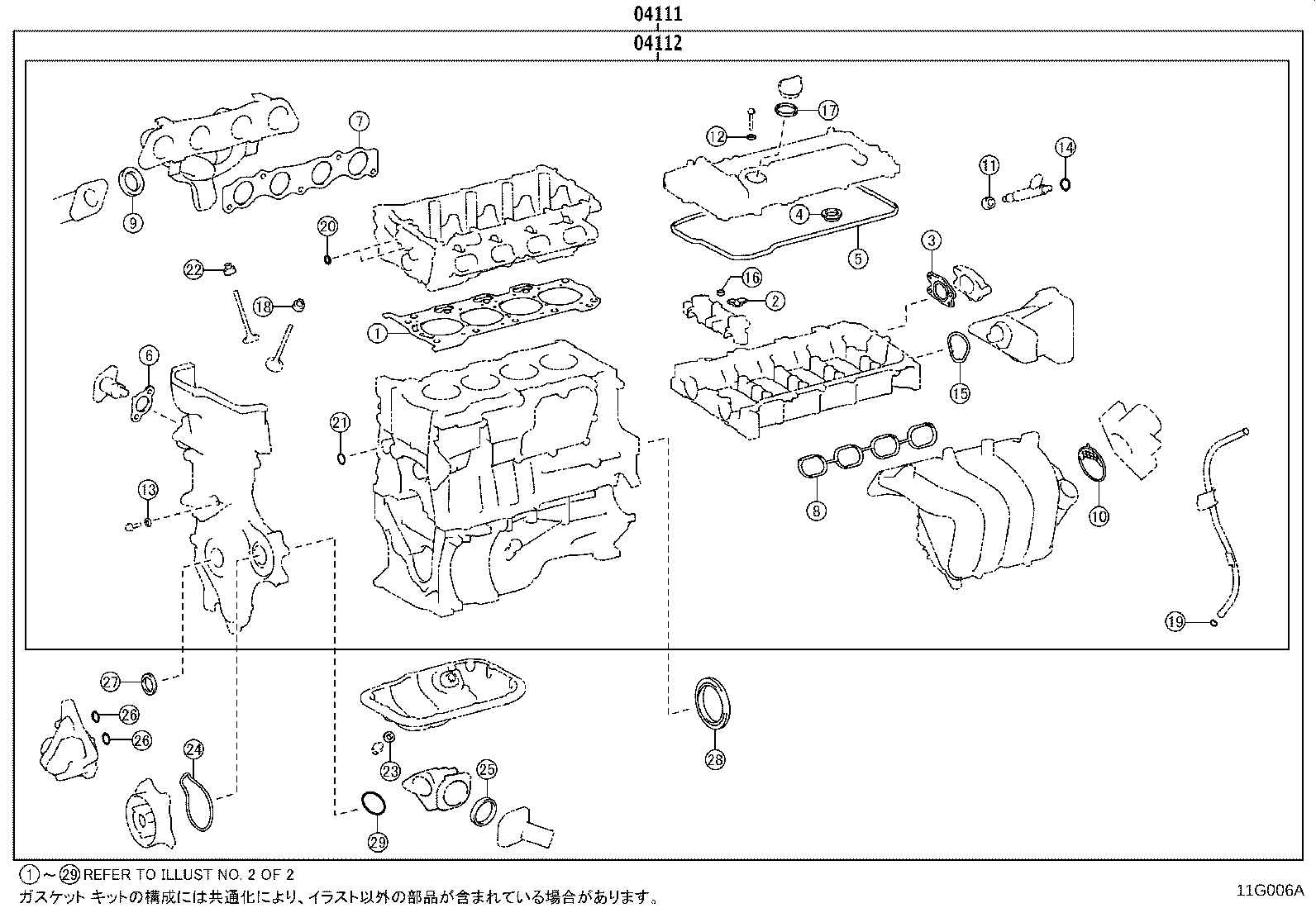

Figure 11G006A

11G006A 2021-08 → —

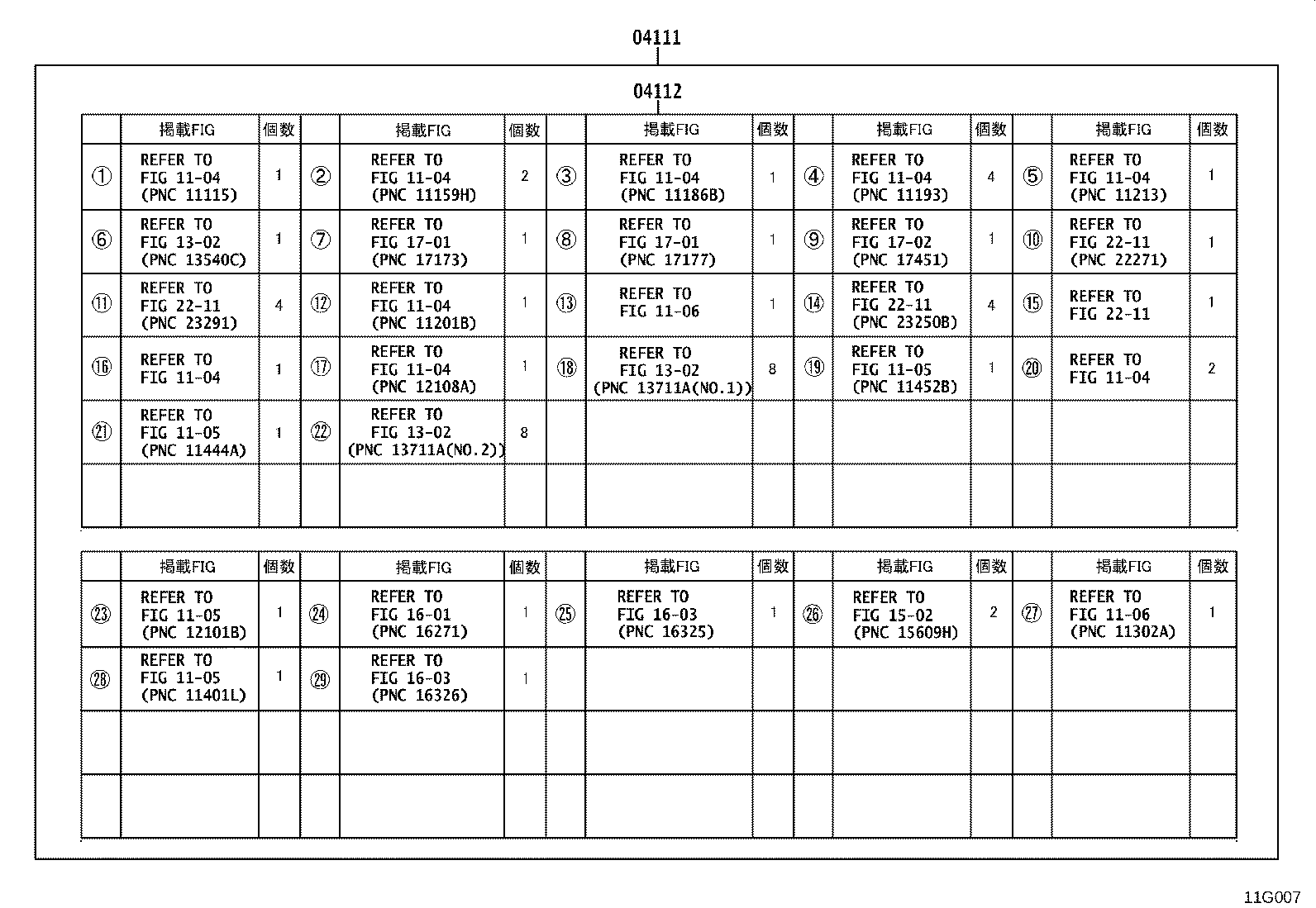

Figure 11G007

11G007 2021-08 → —

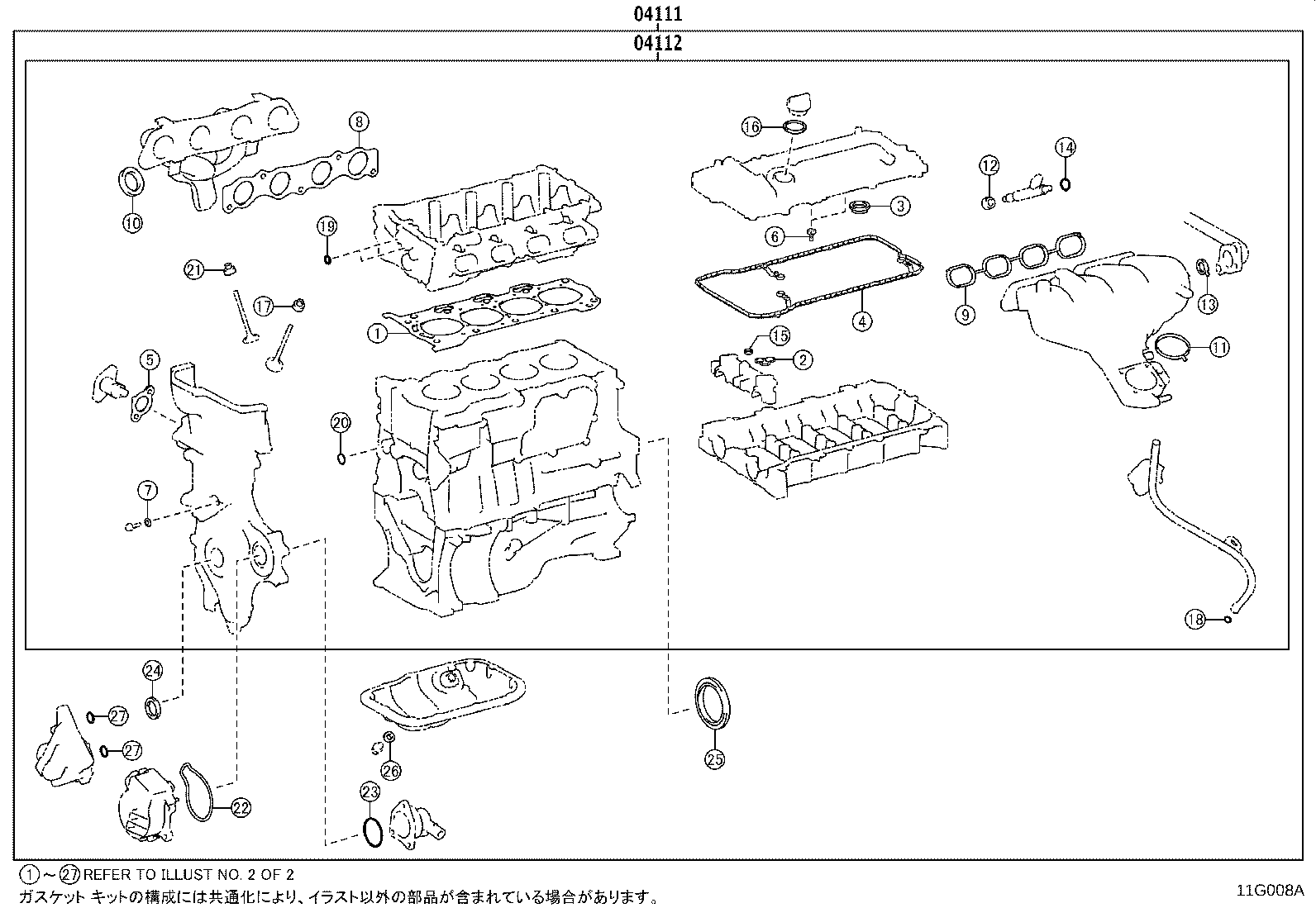

Figure 11G008A

11G008A 2021-10 → —

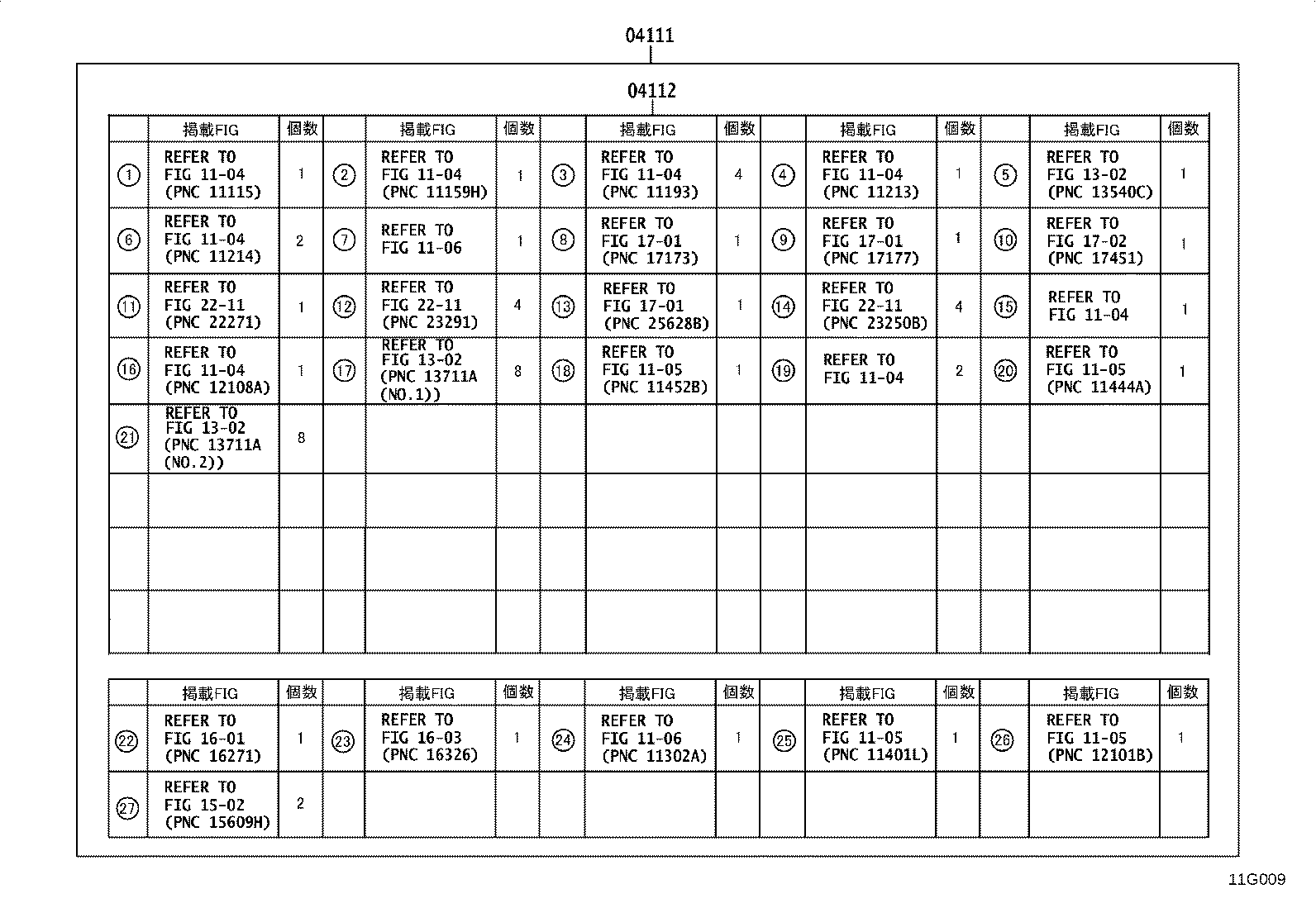

Figure 11G009

11G009 2021-10 → —

Figure 11H622

11H622 2023-10 → —

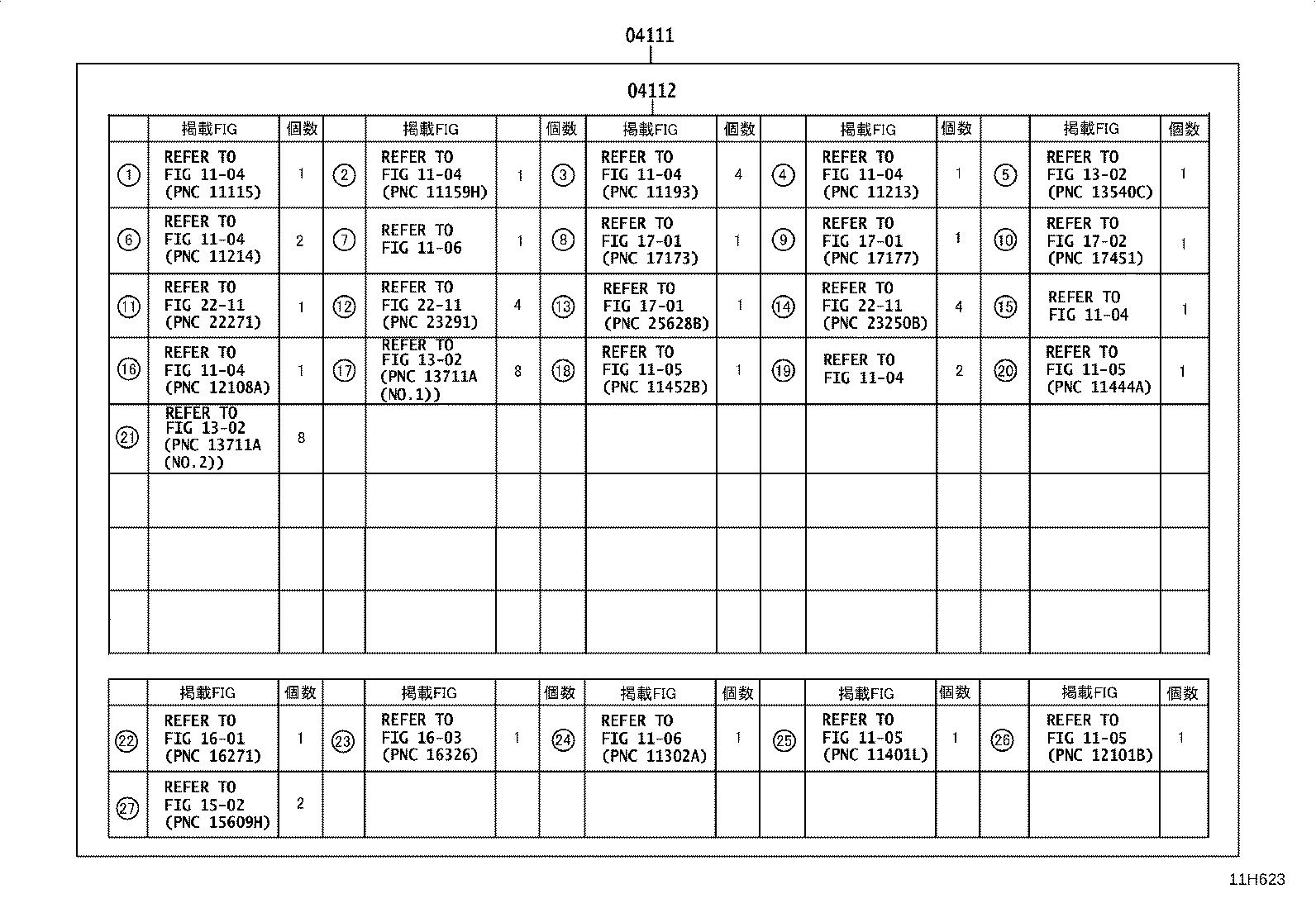

Figure 11H623

11H623 2023-10 → —

Part groups

PNC	Description
04111	Gasket Kit, Engine Overhaul
04112	Gasket Kit, Engine Valve Grind

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
