Toyota Corolla Cross
2021-08 → present · chassis ZSG10,ZVG1#,MXGA10 · catalogue 553110 · Japan
Supported model
Data version 2023-11

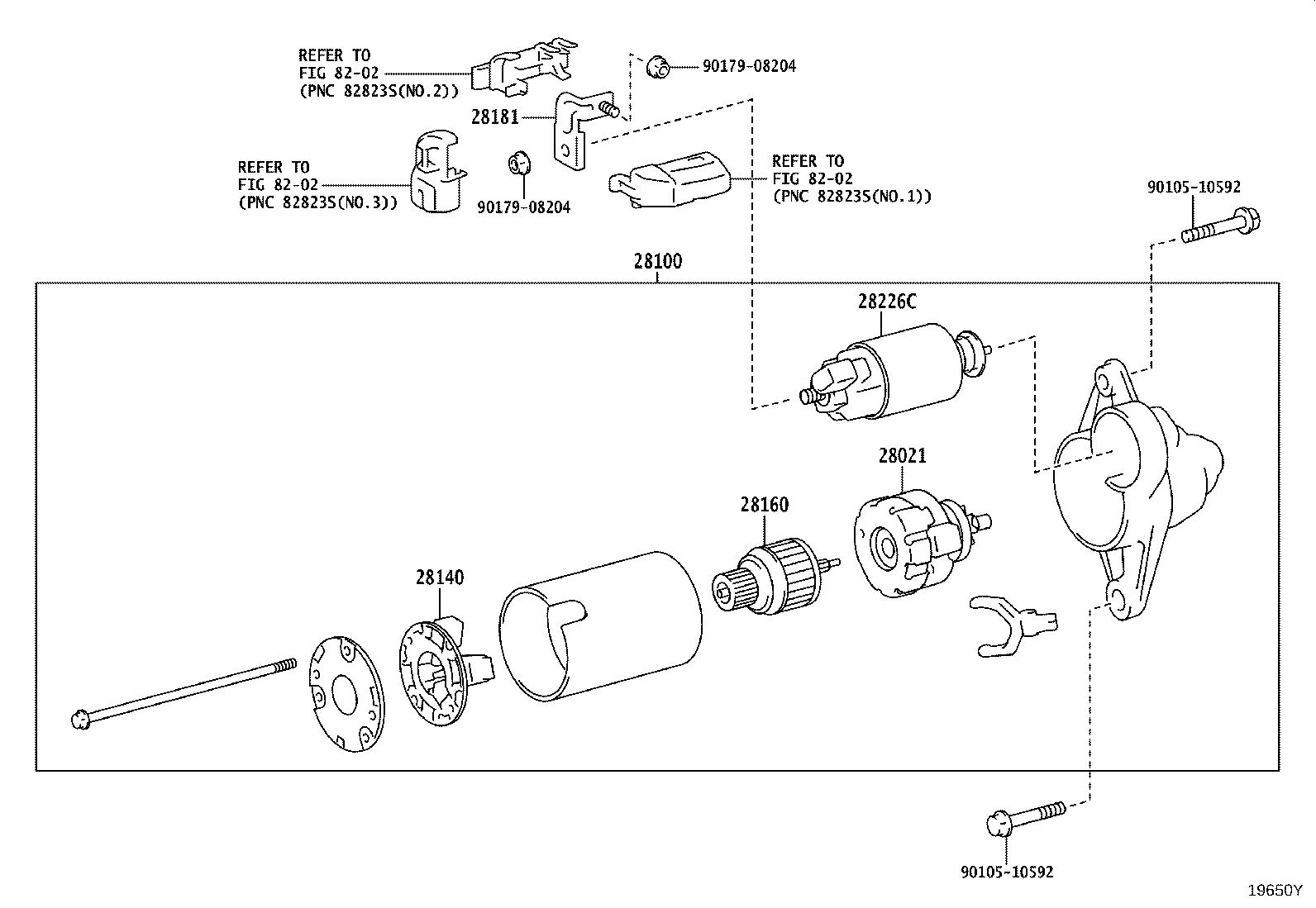

Starter
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28140 | Holder Assy, Starter Brush |
| 28160 | Armature Assy, Starter |
| 28181 | Terminal, Starter |
| 28226C | Starter Kit, Repair Service, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
