Toyota Corolla Cross

2021-08 → present · chassis ZSG10,ZVG1#,MXGA10 · catalogue 553110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

24 part groups · 3 illustrations

Illustrations

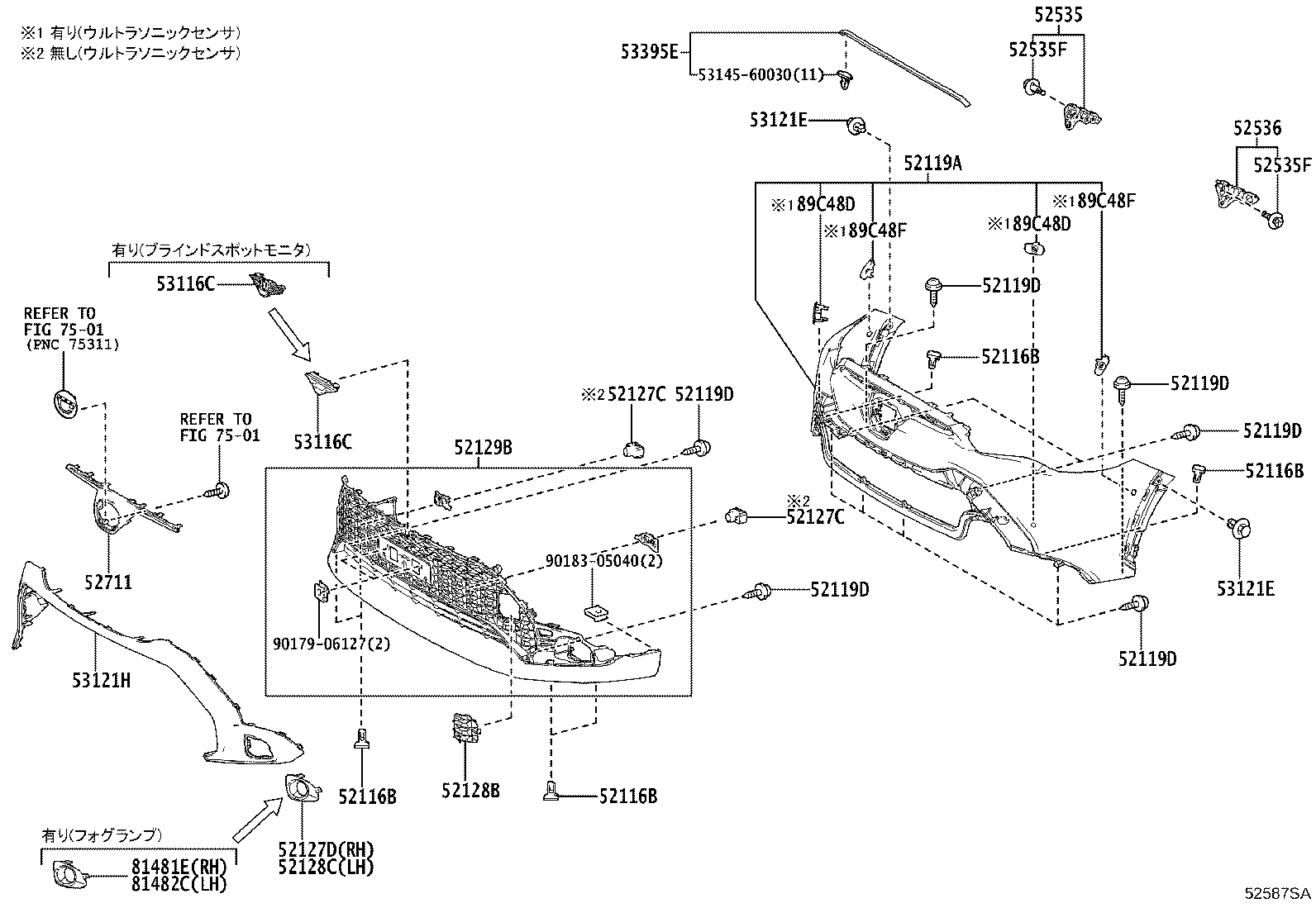

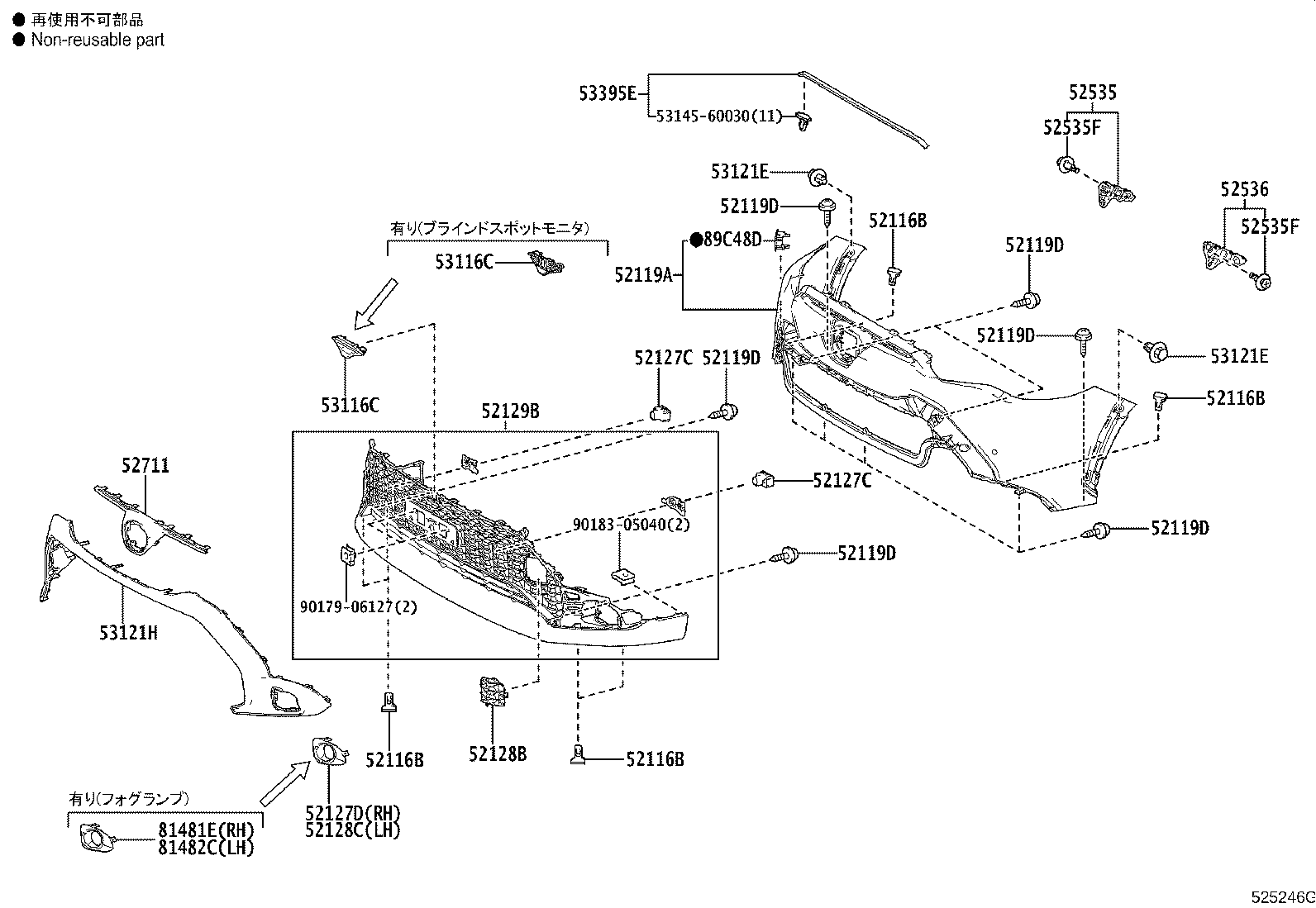

Figure 525245D 525245D 2021-08 → — Figure 525246G 525246G 2021-08 → — Figure 52587SA 52587SA 2023-10 → —

Part groups

PNCDescription
52116B Retainer, Front Bumper
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52535 Retainer, Front Bumper Side, RH
52535F Clip, Front Bumper Side Retainer
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
53116C Bracket, Radiator Grille, NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
53121H Moulding, Radiator Grille, NO.1
53395E Seal, Hood TO Front End Panel
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
