Toyota Corolla Cross
2021-08 → present · chassis ZSG10,ZVG1#,MXGA10 · catalogue 553110 · Japan
Supported model
Data version 2023-11

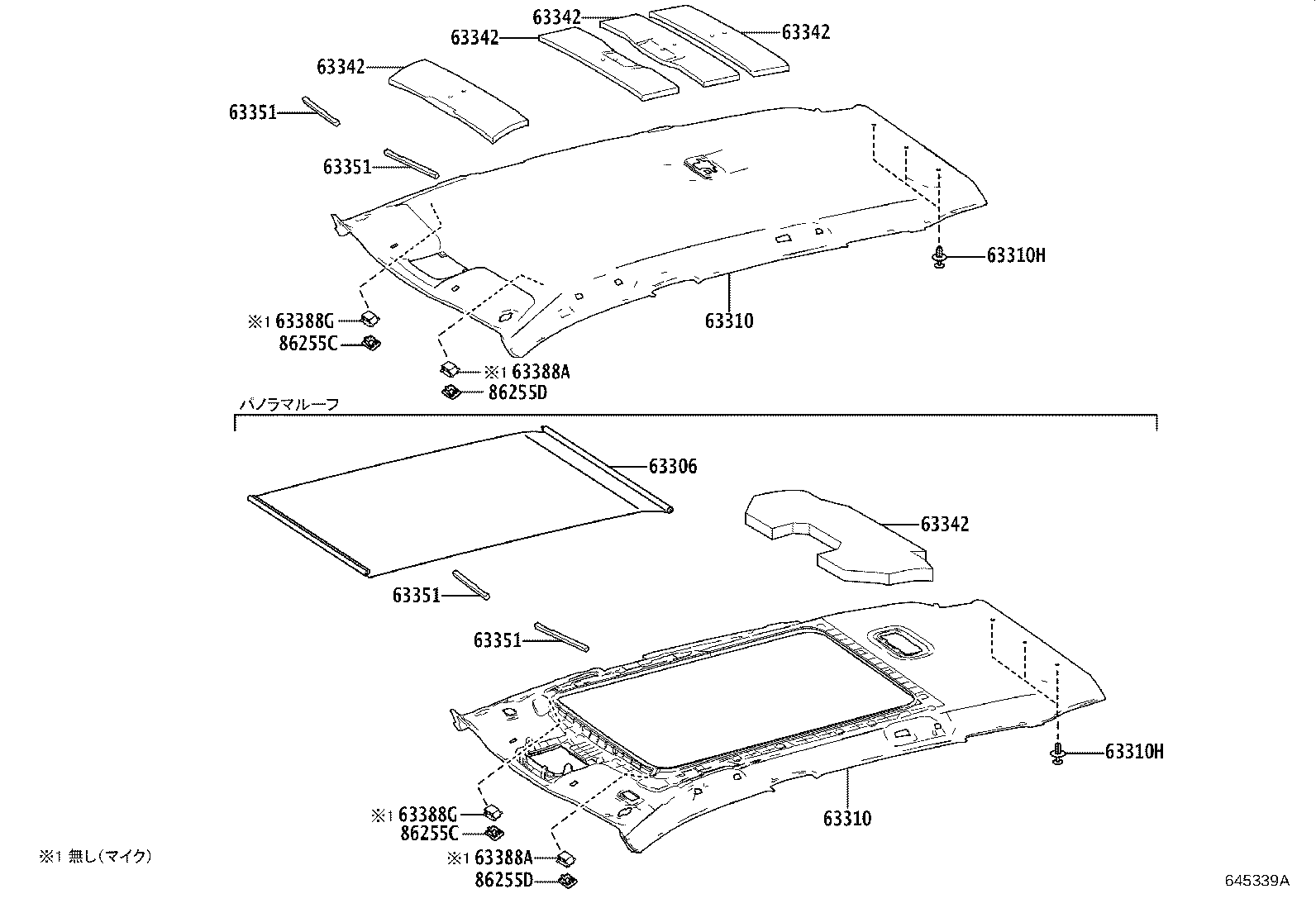

Roof Headlining & Silencer Pad
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63351 | Silencer, Roof Side |
| 63388A | Cover, Roof Headlining Holder |
| 63388G | Cover, Roof Headlining Holder, NO.2 |
| 86255C | Case, Microphone, RH |
| 86255D | Case, Microphone, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
