Toyota Corolla Cross
2021-08 → present · chassis ZSG10,ZVG1#,MXGA10 · catalogue 553110 · Japan
Supported model
Data version 2023-11

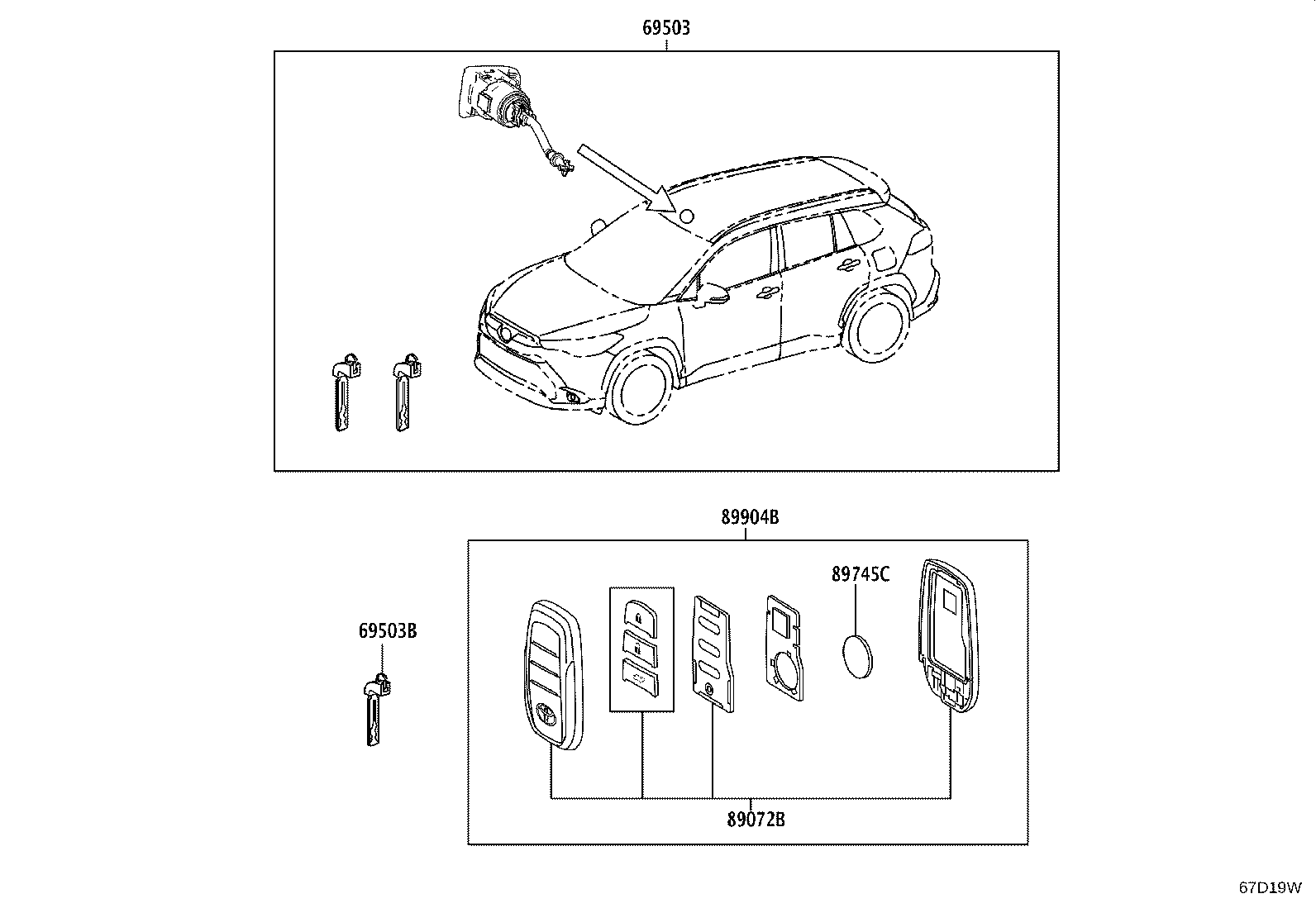

Lock Cylinder Set
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69503 | Cylinder Set, Lock |
| 69503B | Key, Cut |
| 89072B | Housing Set, Door Control Transmitter (FOR SMART KEY) |
| 89745C | Battery, Transmitter |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
