Toyota Corolla Cross
2021-08 → present · chassis ZSG10,ZVG1#,MXGA10 · catalogue 553110 · Japan
Supported model
Data version 2023-11

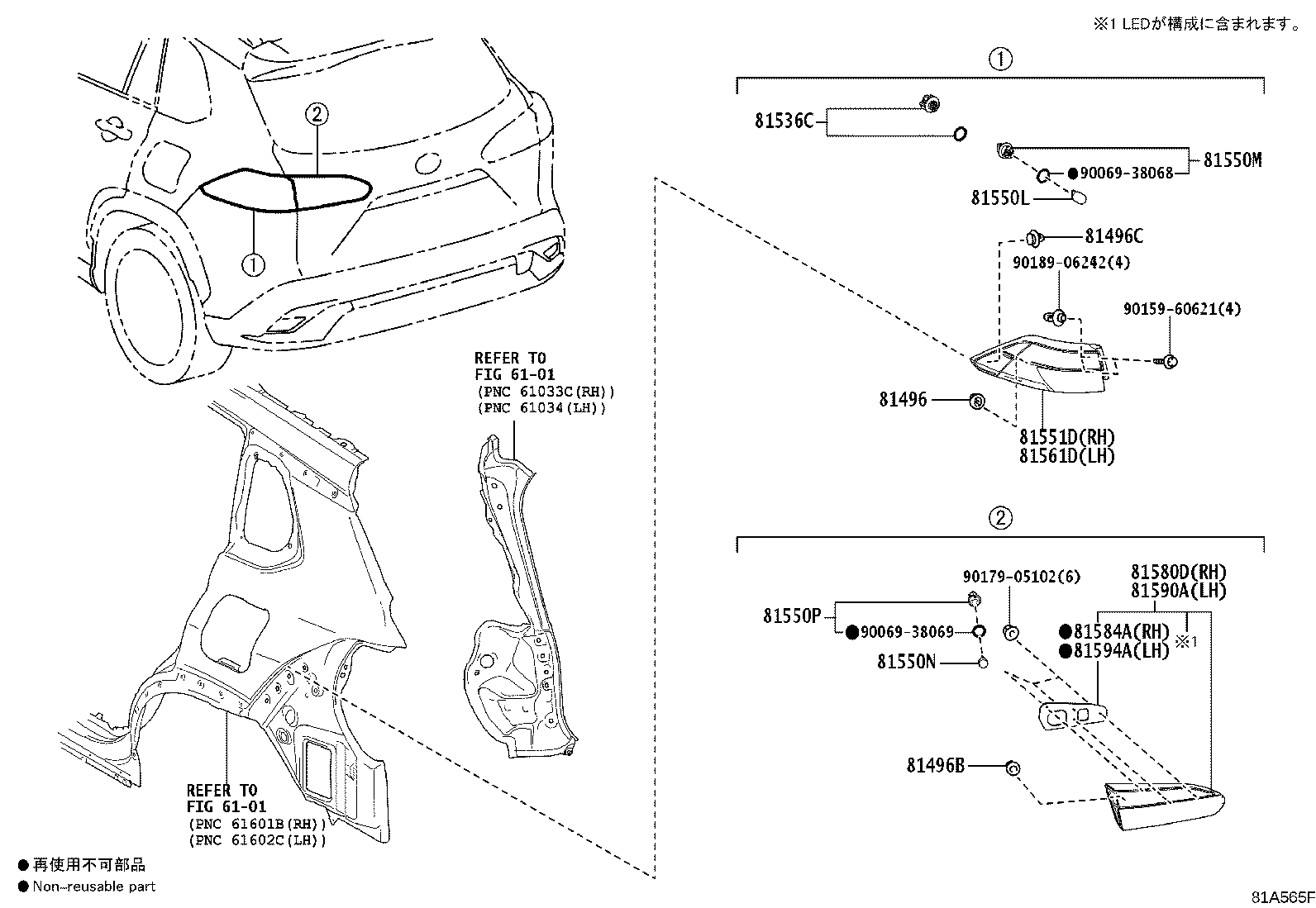

Rear Combination Lamp
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496B | Guide, Rear Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81536C | Led, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550M | Socket, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81580D | Lamp Assy, Rear, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81590A | Lamp Assy, Rear, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
