Toyota Corolla Cross

2021-08 → present · chassis ZSG10,ZVG1#,MXGA10 · catalogue 553110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 2 illustrations

Illustrations

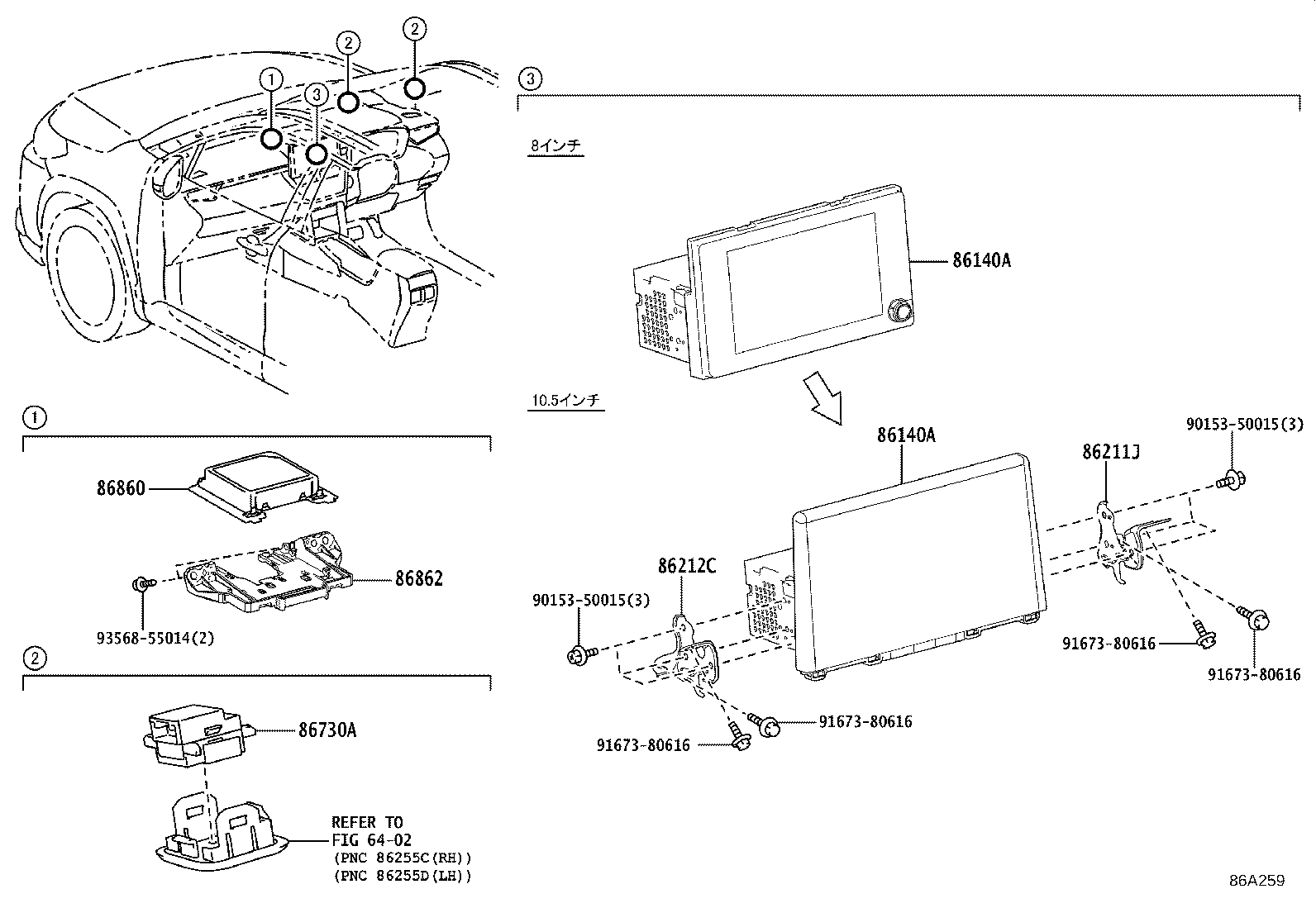

Figure 868898D 868898D 2021-08 → — Figure 86A259 86A259 2023-10 → —

Part groups

PNCDescription
86007 Computer Set, Navigation
86017C Fitting Set, Navigation Setting
86140A Receiver Assy, Radio & Display
86145A Holder, Connector
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
