Toyota Lexus RZ300E/450E

2023-02 → present · chassis XEBM1# · catalogue 564110 · Japan

Supported model Data version 2023-11

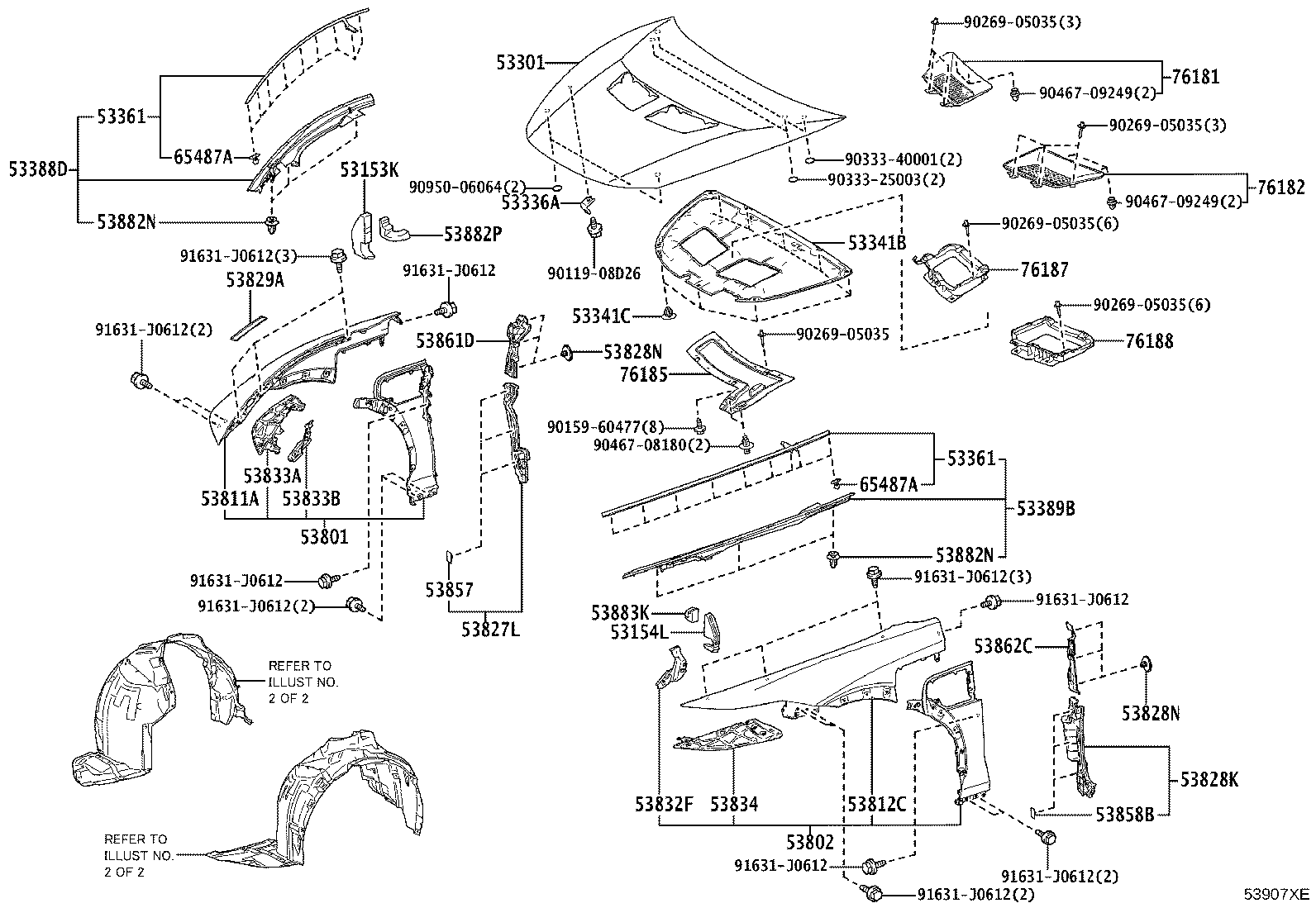

Hood & Front Fender

43 part groups · 3 illustrations

PNC	Description
53153K	Guide, Radiator Grille Side Air, RH
53154L	Guide, Radiator Grille Side Air, LH
53301	Hood Sub-assy
53336A	Bracket, Hood Stay
53341B	Insulator, Hood
53341C	Clip(FOR HOOD INSULATOR)
53361	Weatherstrip, Hood
53388D	Seal, Hood TO Front Fender, RH
53389B	Seal, Hood TO Front Fender, LH
53801	Fender Sub-assy, Front RH
53802	Fender Sub-assy, Front LH

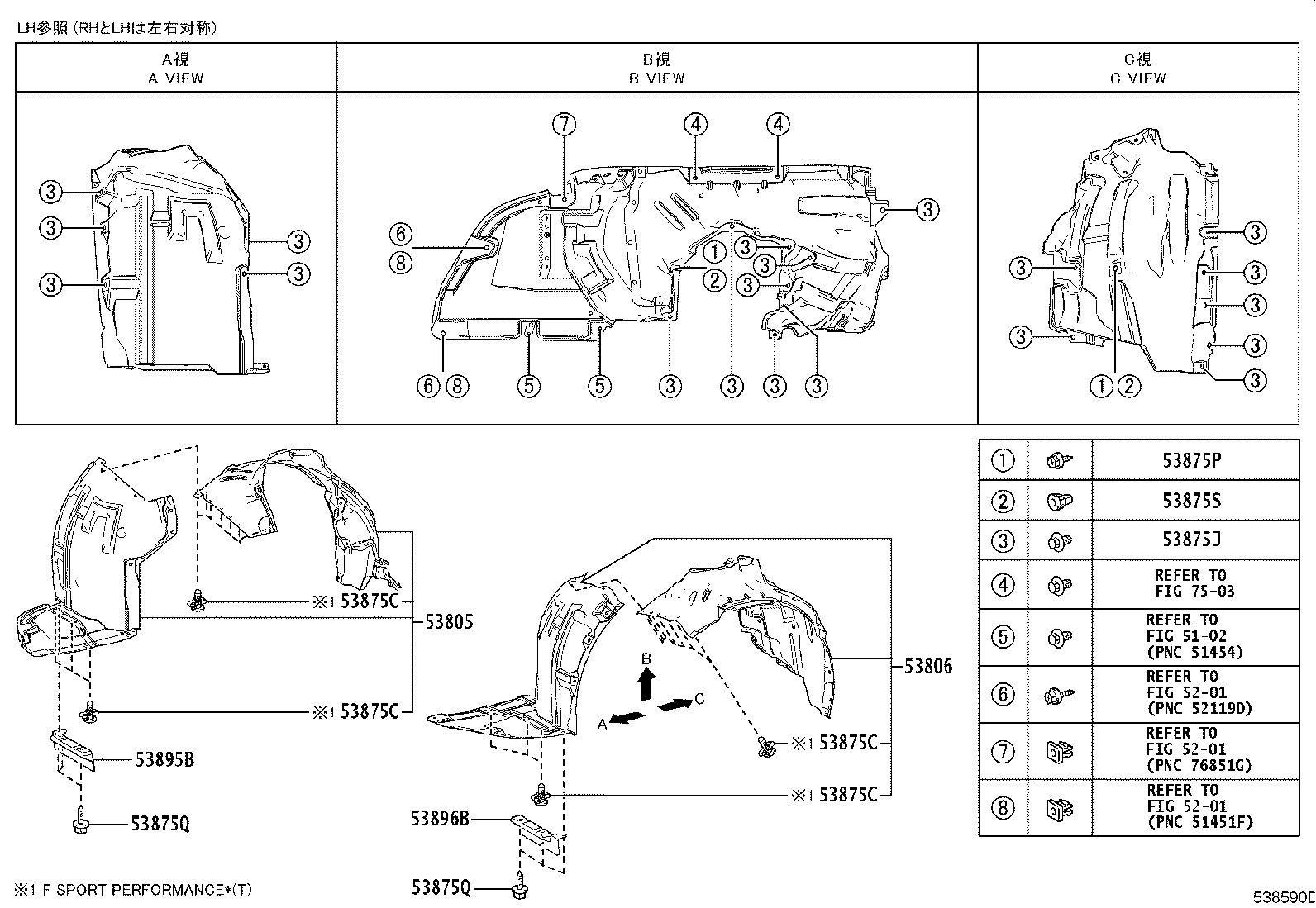

53805	Shield Sub-assy, Front Fender Splash, RH
53806	Shield Sub-assy, Front Fender Splash, LH
53811A	Panel, Front Fender, RH
53812C	Panel, Front Fender, LH
53827L	Protector, Front Fender Side Panel, RH
53828K	Protector, Front Fender Side Panel, LH
53828N	Clip, Front Fender Side Panel Protector, NO.1
53829A	Protector, Front Fender, Lower
53832F	Panel, Front Fender Side, LH
53833A	Panel, Front Fender Side, Lower RH
53833B	Panel, Front Fender Side, RH
53834	Panel, Front Fender Side, Lower LH
53857	Retainer, Front Wheel Opening Extension, RH
53858B	Retainer, Front Wheel Opening Extension, LH
53861D	Seal, Front Fender TO Door Hinge, Upper RH
53862C	Seal, Front Fender TO Door Hinge, Upper LH
53875C	Clip, Front Fender Liner
53875J	Clip, Front Fender Liner
53875P	Screw, NO.1
53875Q	Screw, NO.2
53875S	Grommet, NO.1
53882N	Clip(FOR FRONT FENDER SEAL)
53882P	Seal, Front Fender, RH
53883K	Seal, Front Fender, LH
53895B	Shield, Front Fender Splash, Front RH
53896B	Shield, Front Fender Splash, Front LH
65487A	Clip, Corner Protector
76181	Bulge, Hood
76182	Guide, Hood Air Intake
76185	Protector, Hood Bulge, NO.3
76187	Retainer, Hood Air Intake Guide, NO.1
76188	Retainer, Hood Air Intake Guide, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
