Toyota Lexus RZ300E/450E

2023-02 → present · chassis XEBM1# · catalogue 564110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

12 part groups · 2 illustrations

Illustrations

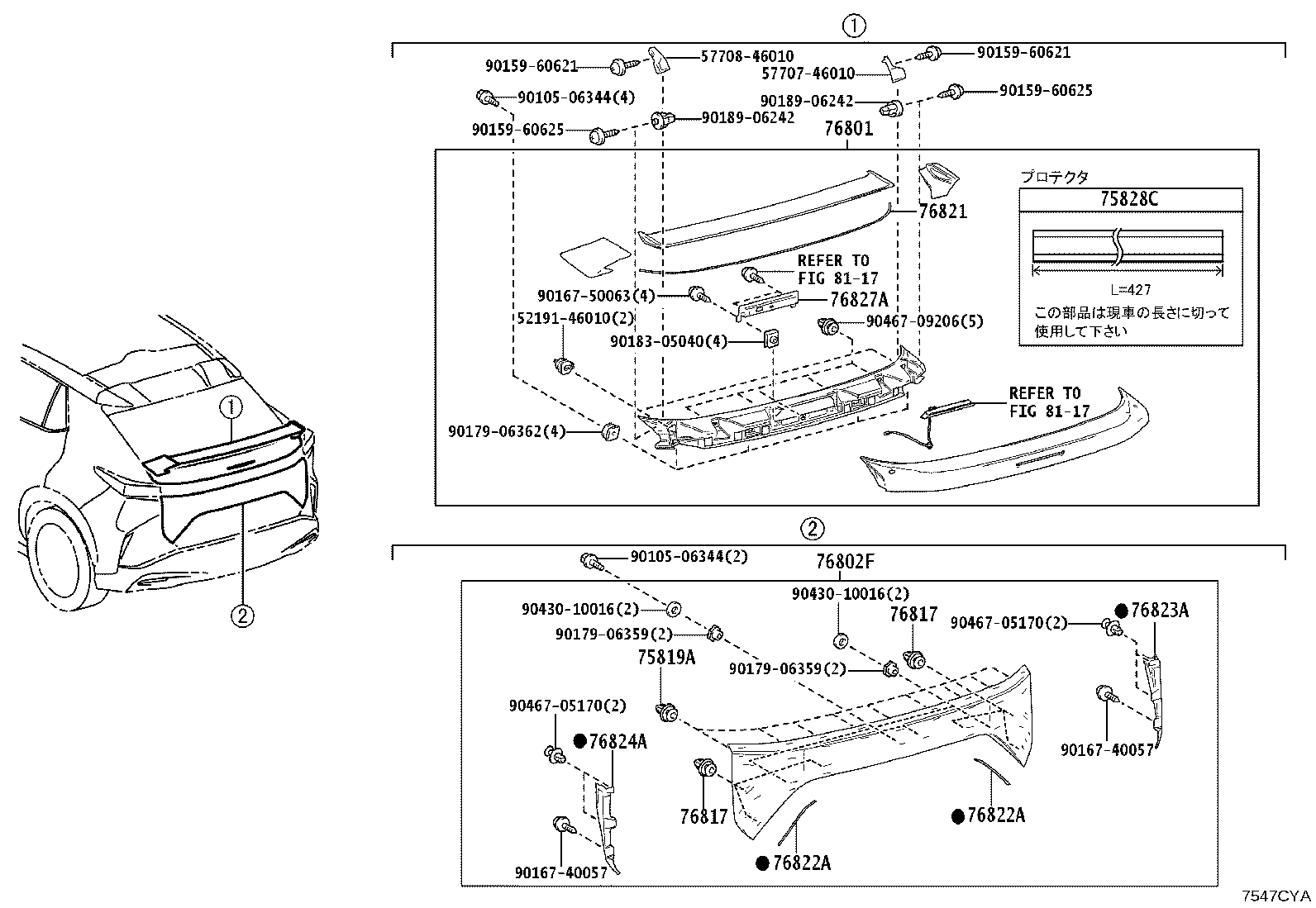

Figure 754617F 754617F 2023-02 → — Figure 7547CYA 7547CYA 2024-03 → —

Part groups

PNCDescription
75819A Clip, Back Door Moulding
75828C Protector, Back Door Outside Moulding
76801 Garnish Sub-assy, Back Door, Outside
76802F Garnish Sub-assy, Back Door, Outside Lower
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76822A Protector, Back Door Garnish Moulding, Lwr
76823 Protector, Back Door Garnish Moulding, RH
76823A Protector, Luggage Compartment Door Garnish, Outside RH
76824 Protector, Back Door Garnish Moulding, LH
76824A Protector, Luggage Compt Door Garnish, Outside LH
76827A Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
