Toyota Pixis Mega
2015-07 → present · chassis LA700A,LA710A · catalogue 591110 · Japan
Supported model
Data version 2018-01

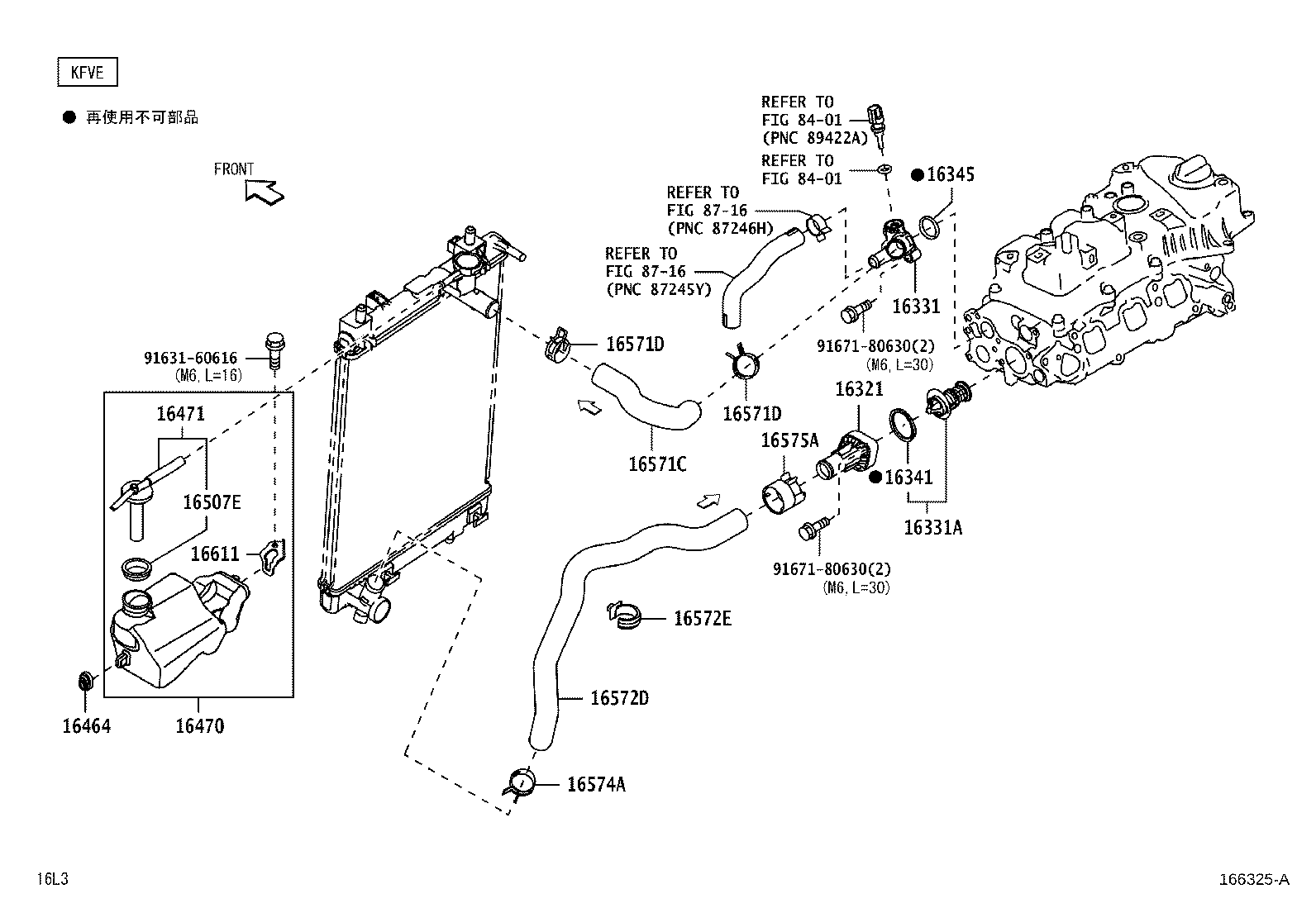

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16321 — Inlet, Water | ||||
| 16321-B2010 |
Inlet, Water
2016-05 → —
|
KFVE LA700,710 | ¥900 | |
| 16321-B2020 |
Inlet, Water
2016-05 → —
|
KFVET LA700,710 | ¥900 | |
| 16321-B2010 |
Inlet, Water
2015-07 → 2016-05
ended
|
KFVE LA700,710 | ¥900 | |
| 16321-B2020 |
Inlet, Water
2015-07 → 2016-05
ended
|
KFVET LA700,710 | ¥900 | |
| 16331 — Outlet, Water | ||||
| 16331-B2020 |
Outlet, Water
2016-05 → —
|
KFVE LA700,710 | ¥780 | |
| 16331-B2020 |
Outlet, Water
2015-07 → 2016-05
ended
|
KFVE LA700,710 | ¥780 | |
| 16331A — Thermostat | ||||
| 16340-B2010 |
Thermostat
2016-05 → —
|
KFVE LA700,710 | ¥1,790 | |
| 16340-B2020 |
Thermostat
2016-05 → —
|
KFVET LA700,710 | ¥1,790 | |
| 16340-B2010 |
Thermostat
2015-07 → 2016-05
ended
|
KFVE LA700,710 | ¥1,790 | |
| 16340-B2020 |
Thermostat
2015-07 → 2016-05
ended
|
KFVET LA700,710 | ¥1,790 | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-B2010 |
Gasket, Water Outlet
2016-05 → —
|
KFVE LA700,710 | ¥120 | |
| 16341-B2020 |
Gasket, Water Outlet
2016-05 → —
|
KFVET LA700,710 | ¥120 | |
| 16341-B2010 |
Gasket, Water Outlet
2015-07 → 2016-05
ended
|
KFVE LA700,710 | ¥120 | |
| 16341-B2020 |
Gasket, Water Outlet
2015-07 → 2016-05
ended
|
KFVET LA700,710 | ¥120 | |
| 16345 — Gasket, Water Outlet Pipe | ||||
| 16341-B2040 |
Gasket, Water Outlet Pipe
2016-05 → —
|
KFVE LA700,710 | ¥120 | |
| 16341-B2040 |
Gasket, Water Outlet Pipe
2015-07 → 2016-05
ended
|
KFVE LA700,710 | ¥120 | |
| 16464 — Bush, Tank Lower | ||||
| 16464-97201 |
Bush, Tank Lower
2016-05 → —
|
KFV# LA700,710 | ¥220 | |
| 16464-97201 |
Bush, Tank Lower
2015-07 → 2016-05
ended
|
KFV# LA700,710 | ¥220 | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-B2041 |
Tank Assy, Radiator Reserve
2016-05 → 2018-07
ended
|
KFV# LA700,710 | ¥1,980 | |
| 16470-B2042 |
Tank Assy, Radiator Reserve
2018-08 → —
|
KFV# LA700,710 | ¥1,980 | |
| 16470-B2041 |
Tank Assy, Radiator Reserve
2015-07 → 2016-05
ended
|
KFV# LA700,710 | ¥1,980 | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16405-B2041 |
Cap Sub-assy, Reserve Tank
2016-05 → —
|
KFV# LA700,710 | ¥890 | |
| 16405-B2041 |
Cap Sub-assy, Reserve Tank
2015-07 → 2016-05
ended
|
KFV# LA700,710 | ¥890 | |
| 16507E — Gasket | ||||
| 90044-30318 |
Gasket
2016-05 → —
|
KFV# LA700,710 | ¥210 | |
| 90044-30318 |
Gasket
2015-07 → 2016-05
ended
|
KFV# LA700,710 | ¥210 | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-B2070 |
Hose, Radiator, NO.1
2016-05 → —
|
KFVET LA700,710 | ¥960 | |
| 16571-B2120 |
Hose, Radiator, NO.1
2016-05 → —
|
KFVE LA700,710 | ¥960 | |
| 16571-B2070 |
Hose, Radiator, NO.1
2015-07 → 2016-05
ended
|
KFVET LA700,710 | ¥960 | |
| 16571-B2120 |
Hose, Radiator, NO.1
2015-07 → 2016-05
ended
|
KFVE LA700,710 | ¥960 | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 90044-67626 |
Clip, Radiator Hose, NO.1
2016-05 → —
|
KFV# LA700,710 | ¥210 | |
| 90044-67387 |
Clip, Radiator Hose, NO.1
2015-07 → 2015-11
ended
|
KFV# LA700,710 | ¥210 | |
| 90044-67626 |
Clip, Radiator Hose, NO.1
2015-12 → 2016-05
ended
|
KFV# LA700,710 | ¥210 | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-B2100 |
Hose, Radiator, NO.2
2016-05 → —
|
KFV# LA700,710 | ¥1,670 | |
| 16572-B2100 |
Hose, Radiator, NO.2
2015-07 → 2016-05
ended
|
KFV# LA700,710 | ¥1,670 | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 90044-64884 |
Clip, Radiator Hose, NO.2
2016-05 → —
|
KFV# LA700,710 | ¥250 | |
| 90044-64884 |
Clip, Radiator Hose, NO.2
2015-07 → 2016-05
ended
|
KFV# LA700,710 | ¥250 | |
| 16574A — Clip, Radiator Hose, NO.4 | ||||
| 90044-67626 |
Clip, Radiator Hose, NO.4
2016-05 → —
|
KFVE LA700,710 | ¥210 | |
| 90044-67626 |
Clip, Radiator Hose, NO.4
2016-05 → —
|
KFVET LA700,710 | ¥210 | |
| 90044-67387 |
Clip, Radiator Hose, NO.4
2015-07 → 2015-11
ended
|
KFVE LA700,710 | ¥210 | |
| 90044-67387 |
Clip, Radiator Hose, NO.4
2015-07 → 2015-11
ended
|
KFVET LA700,710 | ¥210 | |
| 90044-67626 |
Clip, Radiator Hose, NO.4
2015-12 → 2016-05
ended
|
KFVE LA700,710 | ¥210 | |
| 90044-67626 |
Clip, Radiator Hose, NO.4
2015-12 → 2016-05
ended
|
KFVET LA700,710 | ¥210 | |
| 16575A — Clip, Radiator Hose, NO.5 | ||||
| 90044-66040 |
Clip, Radiator Hose, NO.5
2016-05 → —
|
KFVE LA700,710 | ¥310 | |
| 90044-66040 |
Clip, Radiator Hose, NO.5
2015-07 → 2016-05
ended
|
KFVE LA700,710 | ¥310 | |
| 16611 — Bracket, Radiator Reserve Tank | ||||
| 16611-B2050 |
Bracket, Radiator Reserve Tank
2016-05 → —
|
KFV# LA700,710 | ¥260 | |
| 16611-B2050 |
Bracket, Radiator Reserve Tank
2015-07 → 2016-05
ended
|
KFV# LA700,710 | ¥260 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
